Sida 1/6

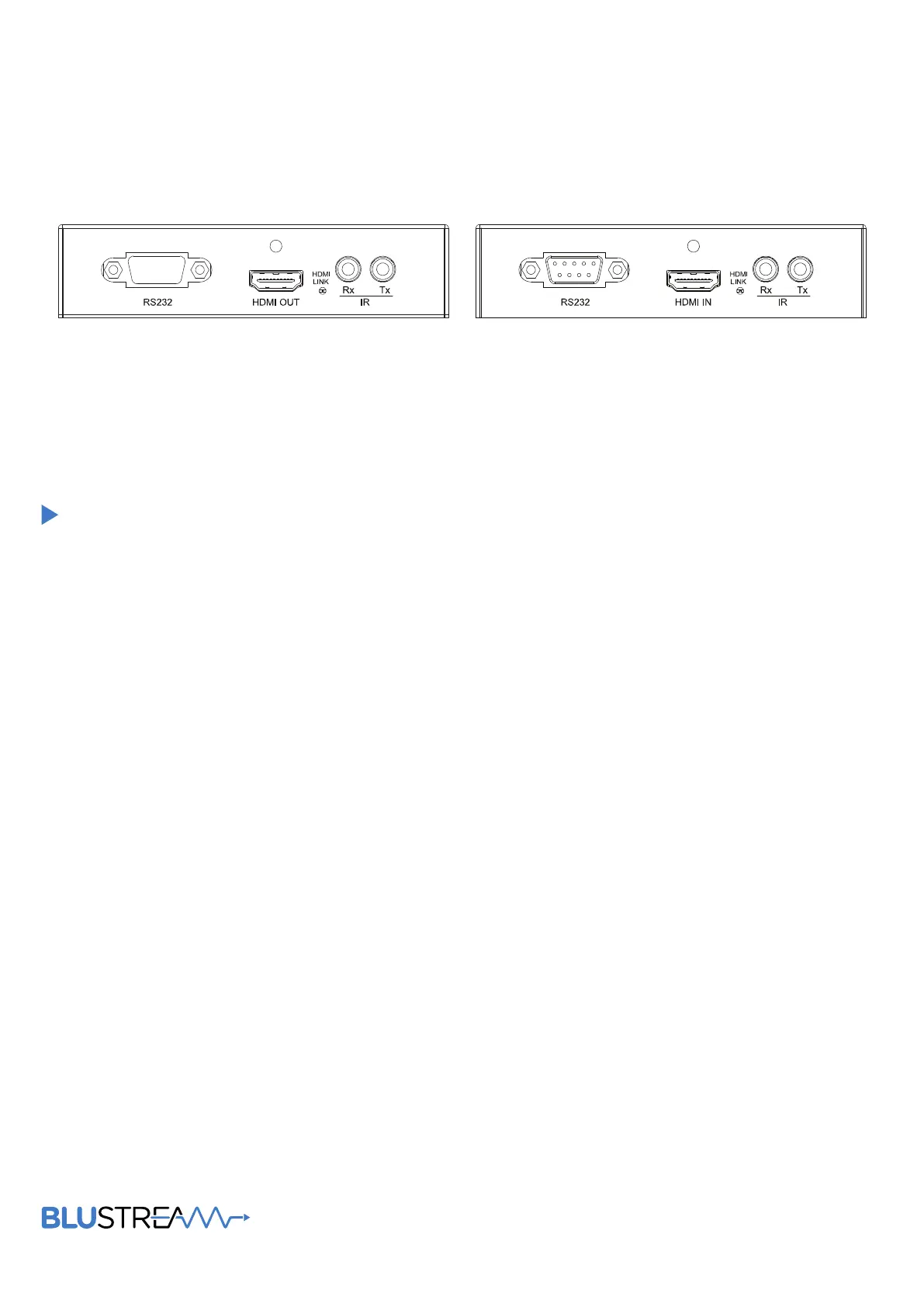

HEX70ED-Rx HEX70ED-Tx

HEX70ED-RX/TX

User Manual

HEX70ED USER MANUAL

02 www.bluestream.co.uk

Surge protection device

recommended

This product contains sensitive electri-

cal components that may be damaged

by electrical spikes, surges, electric

shock, lightning strikes, etc. Use of

surge protection systems is highly

recommended in order to protect and

extend the life of your equipment.

Safety And

Performance Notice

The transmission distances of HDMI

over UTP cables are measured using TE

CONNECTIVITY 1427071-6

EIA/TIA-568-B termination (T568B) of

cables is recommended for optimal

performance.

To minimize interference of the un-

shielded twisted pairs in the CAT5e/6

cable do not run the HDBaseT /

Cat5e/6/6a cabling with or in close par-

allel proximity to mains power cables.

Do not substitute or use any other

power supply other than the enclosed

unit, or a Blustream approved re-

placement.

Do not disassemble either the Trans-

mitter or Receiver units for any reason.

Doing so will void the manufacturer’s

warranty.

Introduction 03

Features 03

Panel Descriptions 03/04

EDID Control 04

Application Diagram 05

Specifications 06

Package Contents 06

Maintenance 06

Contents

Thank you for purchasing

this product.

For optimum performance and safety,

please read these instructions care-

fully before connecting, operating or

adjusting this product. Please keep this

manual for future reference.

HEX70ED USER MANUAL

contact support@blustream.co.uk / support@blustream.com.au

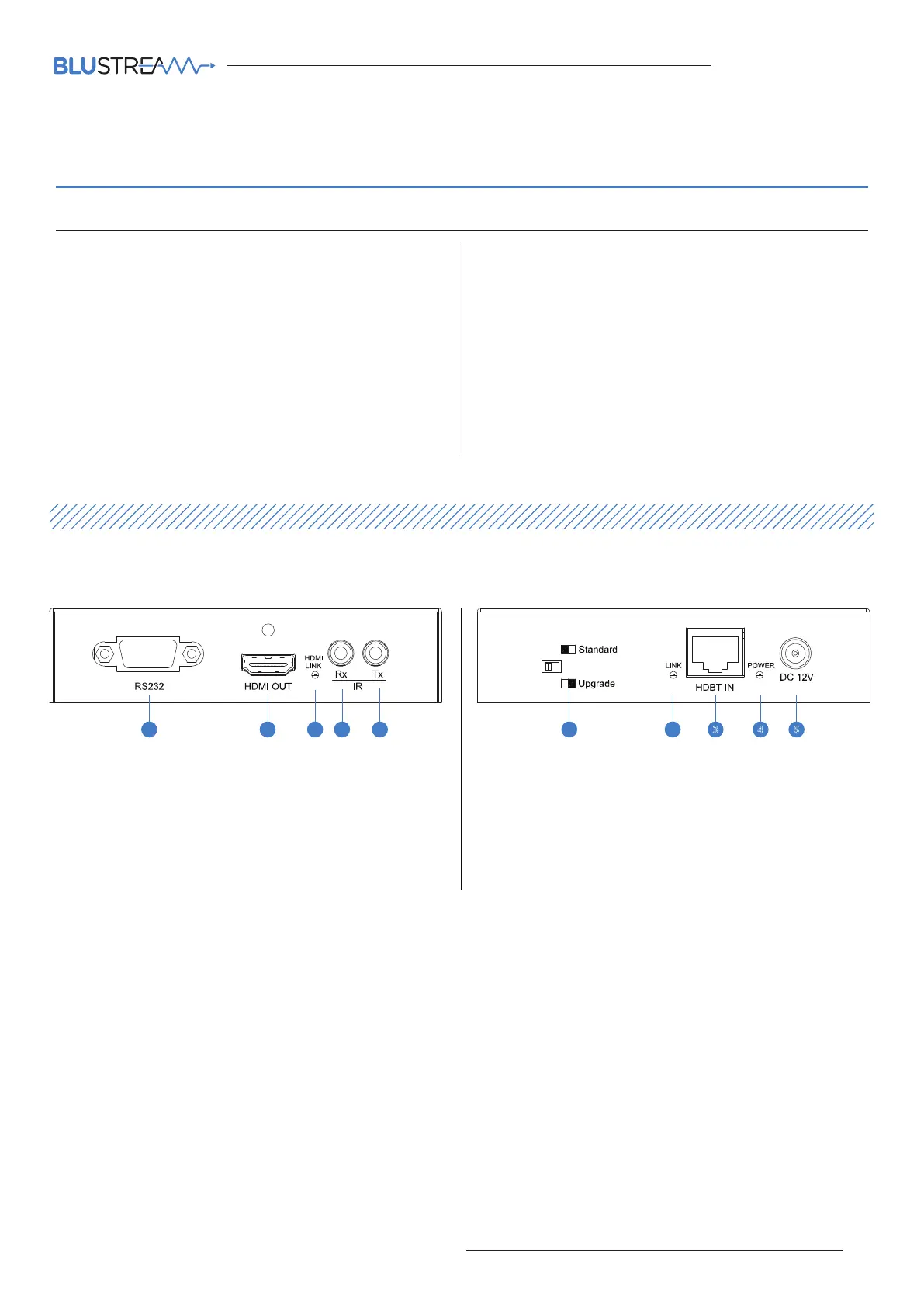

Panel Description HEX70ED-RX

HEX70ED-Rx Receiver

1 1 2 3 4 5

2 3 4 5

1 RS232 connector

2 HDMI output

3 HDMI link indicator

4 IR RX jack (To IR sensor)

5 IR TX jack (To IR emitter)

1 Standard/Upgrade mode switch

2 Signal Link indicator

3 HDBT input

4 Power status indicator

5 DC 12V screw type connector

Our HEX70ED-KIT 4K HDBaseT™ extender set oers market leading features

and outstanding value. The product supports HDMI, RS-232, Bi-directional IR

and Bi-directional PoH (PoE) up to lengths of 70m.

Introduction

FEATURES:

• Extends HDMI up to distances of 70m over single CAT cable

• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4,

4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

• Supports all industry standard video resolutions including

VGA-WUXGA and 480i-4K

• Supports 3D signal display

• Supports all known HDMI audio formats including Dolby

TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master

Audio transmission

• Supports bi-directional RS-232 pass through

• Supports bi-directional IR from all input and output

locations

• Supplied with Blustream IR receiver and emitter

• Advanced EDID management

• HDCP compliant

• 1. Standard/Upgrade mode switch*

* Switch is associated with the RS232 connection of the unit. When in Standard mode the RS232 port is used for the intended distribution of an RS232 signal.

When in Upgrade mode the RS232 connection is used to upgrade firmware on the unit.

Note: The POH function is designed for powering compatible transmitter or receiver units from Blustream only.
