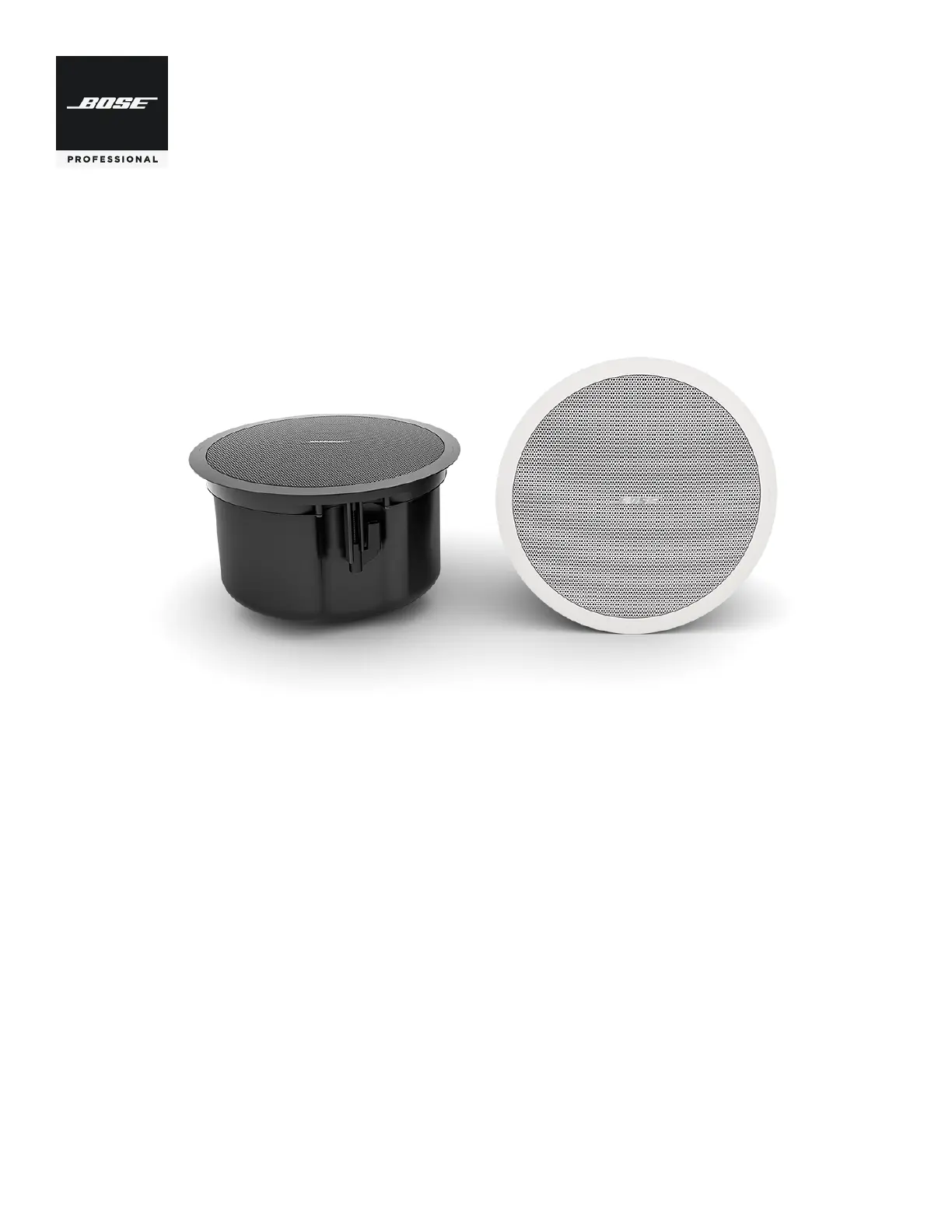

FreeSpace FS4CE
In-ceiling Loudspeaker
Installation Guide . . . . . . . . . . . . . . . . . . . . . . . 2
Guía de instalación . . . . . . . . . . . . . . . . . . . . 10
Notice d’installation . . . . . . . . . . . . . . . . . . . 18
Installationsanleitung . . . . . . . . . . . . . . . . . . 26
Guida all'installazione . . . . . . . . . . . . . . . . . . 34
Installatiehandleiding . . . . . . . . . . . . . . . . . . 42
Monteringsveiledning . . . . . . . . . . . . . . . . . . 50
Instrukcja montażu . . . . . . . . . . . . . . . . . . . . 58
安装指南 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
安裝指南 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
設置ガイド . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 • English FreeSpace FS4CE Installation Guide•
PRO.BOSE.COM
Important Safety Instructions
Please read and keep all safety and use instructions.
This product is intended for installation by professional installers only! This document is
intended to provide professional installers with basic installation and safety guidelines for this
product in typical fixed-installation systems. Please read this document and all safety warnings
before attempting installation.
Do not attempt to service this product yourself. Refer all servicing to authorized service centers,
installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or
distributor near you, visit PRO.BOSE.COM.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produces heat.
7. Only use attachments/accessories specified by the manufacturer.
Regulatory Information
Do not paint or modify factory-applied finishes.
This product conforms to all applicable EU directive requirements. The complete
declaration of conformity can be found at: www.Bose.com/compliance.
This symbol means the product must not be discarded as household waste, and
should be delivered to an appropriate collection facility for recycling. Proper
disposal and recycling helps protect natural resources, human health and the
environment. For more information on disposal and recycling of this product,
contact your local municipality, disposal service, or the shop where you bought this
product.
China Restriction of Hazardous Substances Table
Names and Contents of Toxic or Hazardous Substances or Elements
Toxic or Hazardous Substances and Elements
Part Name Lead
(Pb) Mercury
(Hg) Cadmium
(Cd) Hexavalent
(CR(VI))
Polybrominated
Biphenyl
(PBB)
Polybrominated
diphenylether
(PBDE)
PCBs X O O O O O
Metal Parts X O O O O O
Plastic Parts O O O O O O
Speakers X O O O O O
Cables X O O O O O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials
for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous
materials used for this part is above the limit requirement of GB/T 26572.
Taiwan Restriction of Hazardous Substances Table
Equipment name: FreeSpace FS4CE, Type designation: 841156
Restricted substances and its chemical symbols
Unit Lead
(Pb) Mercury
(Hg) Cadmium
(Cd)
Hexavalent
chromium
(Cr+6)
Polybrominated
biphenyls (PBB)
Polybrominated
diphenyl ethers
(PBDE)
PCBs -○ ○ ○ ○ ○
Metal Parts -○ ○ ○ ○ ○
Plastic Parts ○ ○ ○ ○ ○ ○
Speakers -○ ○ ○ ○ ○
Cables -○ ○ ○ ○ ○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference
value of presence.
Note 2: The “−” indicates that the restricted substance corresponds to the exemption.
Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture;
“7” is 2007 or 2017.
China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9,
No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone
EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands
Mexico Importer: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de
Chapultepec, 11000 México, D.F. For importer & service information: +5255 (5202) 3545
Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road,
Taipei City 104, Taiwan. Phone Number: +886-2-2514 7676
Bose, DesignMax, and FreeSpace are trademarks of Bose Corporation.
Bose Corporation Headquarters: 1-877-230-5639
©2020 Bose Corporation. No part of this work may be reproduced, modified, distributed or
otherwise used without prior written permission.
Warranty Information
This product is covered by a limited warranty.
For warranty details, visit PRO.BOSE.COM.
Product Ratings:
Input Voltage: 70V/100V
Impedance: 8 Ω, 40 W
Current or Power: (70V): 2.5W, 5W, 10W, 20W, 40W; (100V): 5W, 10W, 20W, 40W
WARNINGS/CAUTIONS
This product contains magnetic material. Consult your physician on whether
this might aect your implantable medical device.
Contains small parts which may be a choking hazard. Not suitable for children
under age 3.
• It is the responsibility of the installer to use a support system which has sucient wind
load strength to comply with the applicable codes and standards.
• All Bose products must be installed in accordance with local, state, federal and industry
regulations. It is the installer’s responsibility to ensure installation of the loudspeakers
and mounting system is performed in accordance with all applicable codes, including
local building codes and regulations. Consult the local authority having jurisdiction
before installing this product.
• Unsafe mounting or overhead suspension of any heavy load can result in serious
injury or death, and property damage. It is the installer’s responsibility to evaluate the
reliability of any mounting method used for their application. Only professional installers
with the knowledge of proper hardware and safe mounting techniques should attempt
to install any loudspeaker overhead.
• Do not mount on surfaces that are not sturdy, or that have hazards concealed behind
them, such as electrical wiring or plumbing. Ensure the bracket is installed by a qualified
professional installer and in accordance with local building codes.
• Use only the hardware and accessories included or specified by Bose for use with
FreeSpace FS4CE loudspeakers. For information on compatible accessories, see the
product's technical data sheet at PRO.BOSE.COM.
• Keep the product away from fire and heat sources. Do not place naked flame sources,
such as lighted candles, on or near the product.
• Do not make unauthorized alterations to this product.
• Do not expose loudspeaker or mounting components to any chemical substances
that are not specified by Bose, including but not limited to lubricants, cleaning agents,
contact sprays, or hydrocarbon-based solvents. Exposure to such substances can lead to
degradation of the plastic material, resulting in cracking and creating a falling hazard.
• Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent,
mineral oil, alcohol or other cleaning agents or chemicals.
English • 3Installation Guide FreeSpace FS4CE•
PRO.BOSE.COM Overview
Package Contents
Product Dimensions
×2 ×2 ×1
Technical Specifications
For additional specifications, see the FreeSpace FS4CE
technical data sheet at PRO.BOSE.COM. For EN 54-24
specifications, see the FreeSpace FS4CE EN 54-24 certified
ratings (AM857614 Rev. 00) at PRO.BOSE.COM.
Physical
Product Dimensions Bae diameter: 272 mm
(10.71 in)
Enclosure diameter: 231 mm
(9.09 in)
Backcan depth: 163 mm
(6.42 in)
Hole cutout 250 mm (9.84 in)
Maximum Ceiling Thickness 38 mm (1.50 in)
Net Weight, Loudspeaker
with grille (single)
3.47 kg (7.65 lb)
Shipping Weight (pair) 9.05 kg (19.95 lb)
Environmental Suitable for use outdoors in wet
locations with included weather-
resistant input cover (IP55 per
EN60529; IP33C per EN 54-24).
Optional accessory aluminum
grille for harsh environments to
prevent red corrosion is available.
Important Installation Information
Before installing the loudspeaker, review
Important Safety Instructions on page 2.
For fire and evacuation notification applications,
environmental rated to IP33C per EN 54-24.
For general purpose audio installation
applications, environmental rated to IP55 per
EN60529.
239 mm
9.41 in
272 mm
10.71 in
171 mm
6.73 in
38 mm
1.50 in
163 mm
6.42 in
231 mm
9.09 in
×2 ×2×4

Produktspecifikationer

Varumärke: Bose
Kategori: högtalare
Modell: FreeSpace FS4CE
