To install the optional waveguides, follow these instructions:
1. Verify the intended coverage pattern; number embossed on panel equals the horizontal coverage.
2. Remove the 6 screws that attach the grille to the loudspeaker module (3 on top of module and 3 on bottom).
3. Remove the grille. See Fig. 1.
4. Undo the 8 screws securing the waveguides into the module (4 on top of module and 4 on bottom). See Fig. 2.
5. Remove the waveguide panels from the module by pulling out the panels.
6. Place the new waveguide panels into the module. Confirm that the waveguide panel is fully seated in the module,
with no gaps, and is not obstructing the diraction slot. See Fig. 3.
7. Secure the new waveguide panels to the module by replacing the screws.
8. Re-attach the grille and replace the 6 screws.
Installation Information
Thank you for selecting Bose Professional ShowMatch DeltaQ array loudspeakers. This document is intended to
provide professional installers with basic installation and safety guidelines for using the optional waveguides with
ShowMatch loudspeakers. Please read this document before attempting installation.
The horizontal coverage pattern of ShowMatch full-range loudspeakers can be changed by replacing the factory-
installed waveguides with the optional accessory waveguides. The following accessories are available:
• SM5WG55 waveguide provides 55° horizontal coverage for the SM5 loudspeaker.
• SM20WG12 waveguide provides 120° horizontal coverage for the SM20 loudspeaker.
Note: Waveguides are NOT interchangeable across dierent vertical-coverage ShowMatch loudspeakers.

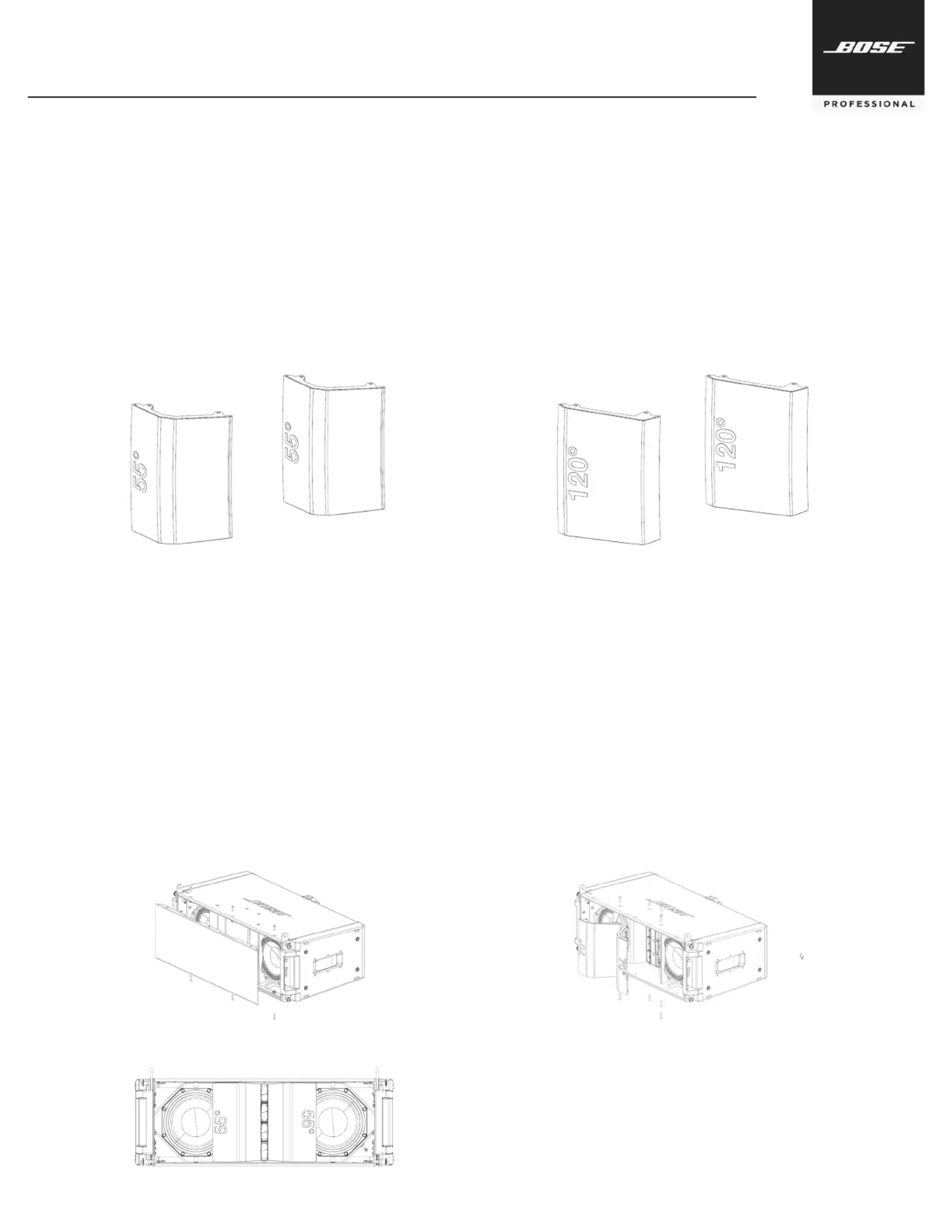

Fig. 1. Remove loudspeaker grille Fig. 2. Remove factory-installed waveguides
Fig. 3. Install accessory waveguides
55° waveguide panels for SM5 loudspeaker 120° waveguide panels for SM20 loudspeaker
ShowMatch DeltaQ Array Loudspeaker
Waveguide Accessories: SM5WG55 and SM20WG12
©2023 Transom Post OpCo LLC. All rights reserved.
Framingham, MA 01701 USA
BoseProfessional.com
AM772975 Rev. 02
August 2023
Limited Warranty
Your product is covered by a limited warranty, Visit BoseProfessional.com/Warranty for warranty details.
Importer Information
China Importer: Bose Electronics (Shanghai) Company Limited, Level 6, Tower D, No. 2337 Gudai Rd. Minhang District, Shanghai 201100
UK Importer: Bose Limited Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom
EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands
Mexico Importer: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F.
For importer & service information: +5255 (5202) 3545
Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: +886-2-2514 7676
Safety Information
CAUTION: This product is intended for installation by professional installers only!
PRECAUCIÓN: Solo un instalador profesional deberá montar este producto!
ATTENTION: L’installation de ce produit est réservée à un technicien professionnel!
ACHTUNG: Dieses Produkt darf nur von fachkundigen Monteuren installiert werden!
CAUTION: Make no modification to system or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and
system performance.
PRECAUCIÓN: No realice alteraciones no autorizadas a este producto; esto podría comprometer la seguridad, el cumplimiento de las normas
y el rendimiento del sistema.
ATTENTION: Ne pas faire des modifications non autorisées à ce produit; ce qui pourrait compromettre la sécurité, la conformité réglementaire
et la performance du système.
ACHTUNG: Keine nicht autorisierten Veränderungen am Produkt vornehmen. Diese können die Sicherheit, die Einhaltung von Richtlinien und
die Systemleistung beeinträchtigen.
CAUTION: This accessory is intended for use with Bose Professional ShowMatch DeltaQ Array loudspeakers only.
PRECAUCIÓN: Este accesorio está diseñado para usarse únicamente con altavoces Bose Professional ShowMatch DeltaQ Array.
ATTENTION: Cet accessoire est destiné pour l’usage avec les haut-parleurs Bose Professional ShowMatch Delta Q exclusivement.
ACHTUNG: Dieses Zubehör ist ausschließlich zur Verwendung mit Bose Professional ShowMatch DeltaQ Array Lautsprechern vorgesehen.
Additional Information
For additional information on ShowMatch DeltaQ Array loudspeaker modules and accessories, refer to the installation guide available at
BoseProfessional.com.
Bose is a trademark of Bose Corporation.
ShowMatch and DeltaQ are trademarks of Transom Post OpCo LLC.
Bose Corporation, Framingham, MA 01701, U.S.A. 1-877-230-5639
©2023 Transom Post OpCo LLC. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.
ShowMatch
DeltaQ Array Loudspeaker
Waveguide Accessories: SM5WG55 and SM20WG12
