Sida 1/8
1

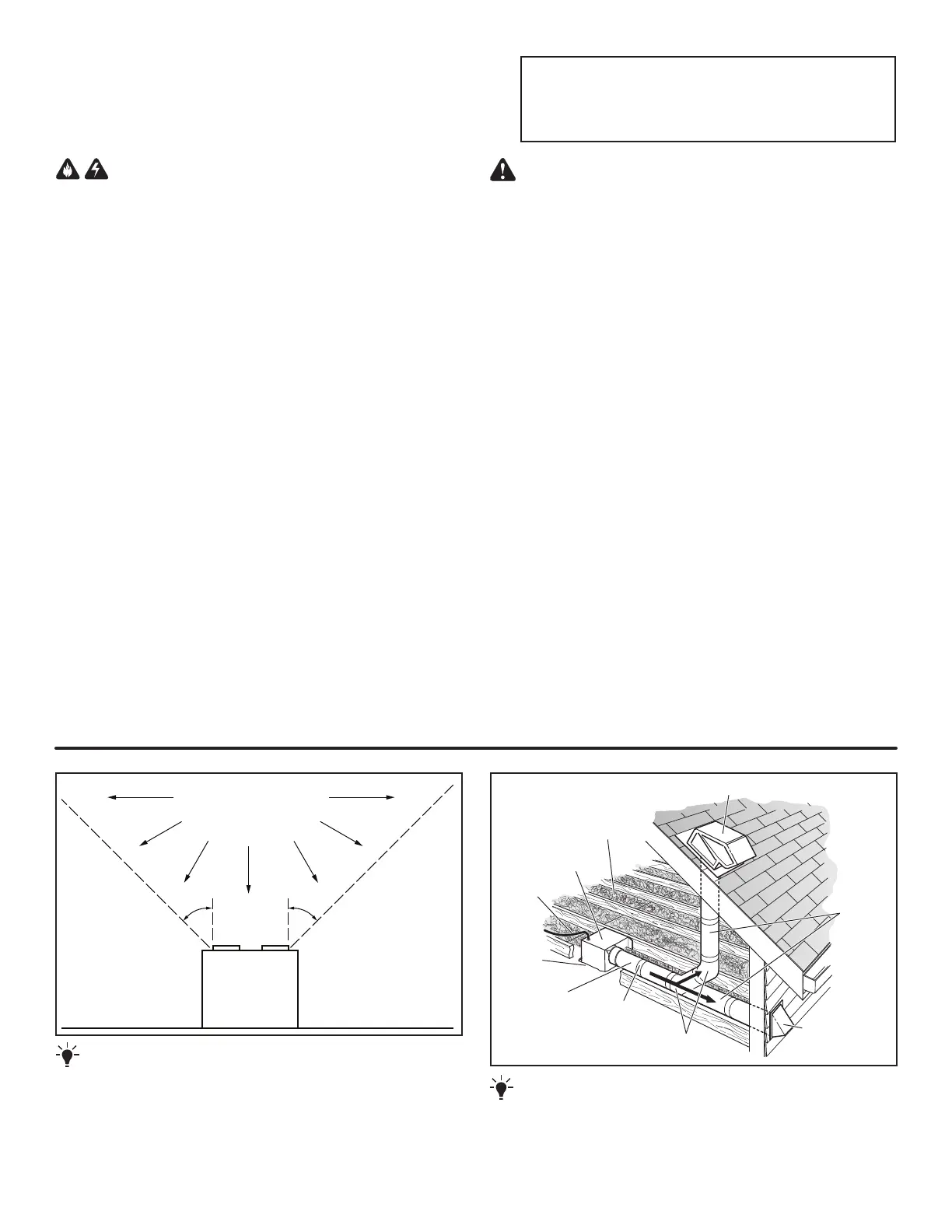

OPTION - To mount housing anywhere between ceiling framing:
Use optional Hanger Bar Kit (sold separately from local distributors
or website). Follow mounting instructions included with kit.
ROOF CAP* (with built-in damper)
WALL CAP*
(with built-in
damper)
4-IN. ROUND
ELBOWS*
FAN
HOUSING
Seal gaps
around
housing.
Seal duct joints
with tape.
INSULATION
(Place around and
over fan housing.)
POWER
CABLE *
* Purchase separately.
OR
Keep duct
runs shor t.
4-IN. ROUND
DUCT*
IMPORTANT -
The ducting from this fan to the outside of the building
has a strong effect on the air fl ow, noise and energy use of the fan. Use
the shortest, straightest duct routing possible for best performance, and
avoid installing the fan with smaller ducts than recommended. Insulation
around the ducts can reduce energy loss and inhibit mold growth. Fans
installed with existing ducts may not achieve their rated airfl ow.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer at the address or
telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel
and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualifi ed
person(s) in accordance with all applicable codes and standards,
including fi re-rated construction codes and standards.
4. Suffi cient air is needed for proper combustion and exhausting of
gases through the fl ue (chimney) of fuel burning equipment to
prevent backdrafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Acceptable for use over a tub or shower when connected to a GFCI
(Ground Fault Circuit Interrupter) - protected branch circuit (ceiling
installation only).
8. This unit must be grounded.
READ AND SAVE THESE INSTRUCTIONS
Cooking
Equipment
Floor
COOKING AREA
Do not install above or
inside this area.
45o45o
NOT FOR USE IN
A COOKING AREA.
CAUTION
1. For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
2. This product can be installed in a wall if mounted 8-ft. or more
above the fl oor.
3. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
4. Please read specifi cation label on product for further information
and requirements.
CLEANING & MAINTENANCE
For quiet and effi cient operation, long life, and attractive appearance
- lower or remove grille and vacuum interior of unit with the dusting
brush attachment.
The motor is permanently lubricated and never needs oiling. If the
motor bearings are making excessive or unusual noises, replace the
blower assembly (includes motor and impeller).
OPERATION
Use an on/off switch to operate the fan.
Refer to Broan’s catalog for a complete line of accessories/controls
to effectively adapt these fans to your requirements.
Roomside / Flex™ Series Fan
For Warranty Statement, Service Parts, Technical Support, or to
Register your product, please visit our website or call:
In the United States - Broan-NuTone.com 800-558-1711.
In Canada - Broan-NuTone.ca 800-567-3855.
2
5Attach damper/duct connector to
fan housing.
Mount housing to ceiling structure.
TABS
Push connector
through opening
from inside of
housing.
Engage tabs
and secure with
screw from
parts bag.
Make sure bottom of housing
will be fl ush with fi nished
ceiling.
For proper location using 1/2”
ceiling material: Bend out
housing tabs (on outside of
housing) to fi t against bottom
of joist.
Secure housing through
mounting ears with appropriate
fasteners. If mounting housing
to I-joist, use wood blocking as
shown.
A 4 to 6-inch
duct expander
is provided with
select models.
NEW INSTALLATION
6
1
ALL INSTALLATIONS
Remove all packing material, unplug
and remove blower from fan housing.
Remove wiring panel
from fan housing (if
already installed).
2
For Retro t Installation -
Skip to Page 3.
3Some models only:
Select 50, 80 or 110
CFM based on your room
size and desired
air  ow. 50 80 110
4Some models only:
A pair of  anges
may be attached to
housing if desired
or required.
HOUSING TABS
I-JOIST
WOOD
BLOCKING
Snap both fl ange pieces
under rolled-over edge of
housing (all four sides).
7Connect 4-in.
round duct.
3
Mount fan to ceiling
structure.
Mount housing to ceiling
structure with appropriate
fasteners in locations shown.
8
RETROFIT INSTALLATION
Remove old
fan and prepare
ceiling.
2
10½-in.
9¾-in. JOIST
1
Fold mounting ears
at against housing.
5 6
Existing fan housings are typically attached to the structure:
• with screws, nails, or staples, which must be removed.
• with hangers or rails which are fastened to joists and must be removed along
with housing.
A pry bar may be needed to remove the old housing.
Leave ductwork and wiring in place.
7Connect wiring.
Connect power cable to wiring plate
(from parts bag) using UL approved
connector. Connect house wiring to
fan wiring. Refer to wiring diagram for
connection details. Use screw (from
parts bag) to secure wiring plate to fan
housing. Re-install wiring panel and
secure with screw from parts bag.
Enlarge ceiling opening (if
necessary) to 9¾” parallel to
joist) by 10½” (perpendicular
to joist). (Some models have
a cut-out template on side of
carton or on grille packaging materials.)
8Connect wiring.
Finish ceiling.
Then continue with Step 10.
Connect power
cable to wiring
plate (from
parts bag) using
UL approved
connector.
Connect house
wiring to fan
wiring. Refer to
wiring diagram
for connection
details. Use screw (from parts bag) to
secure wiring plate to fan housing. Re-install
wiring panel and secure with screw from
parts bag.
9
