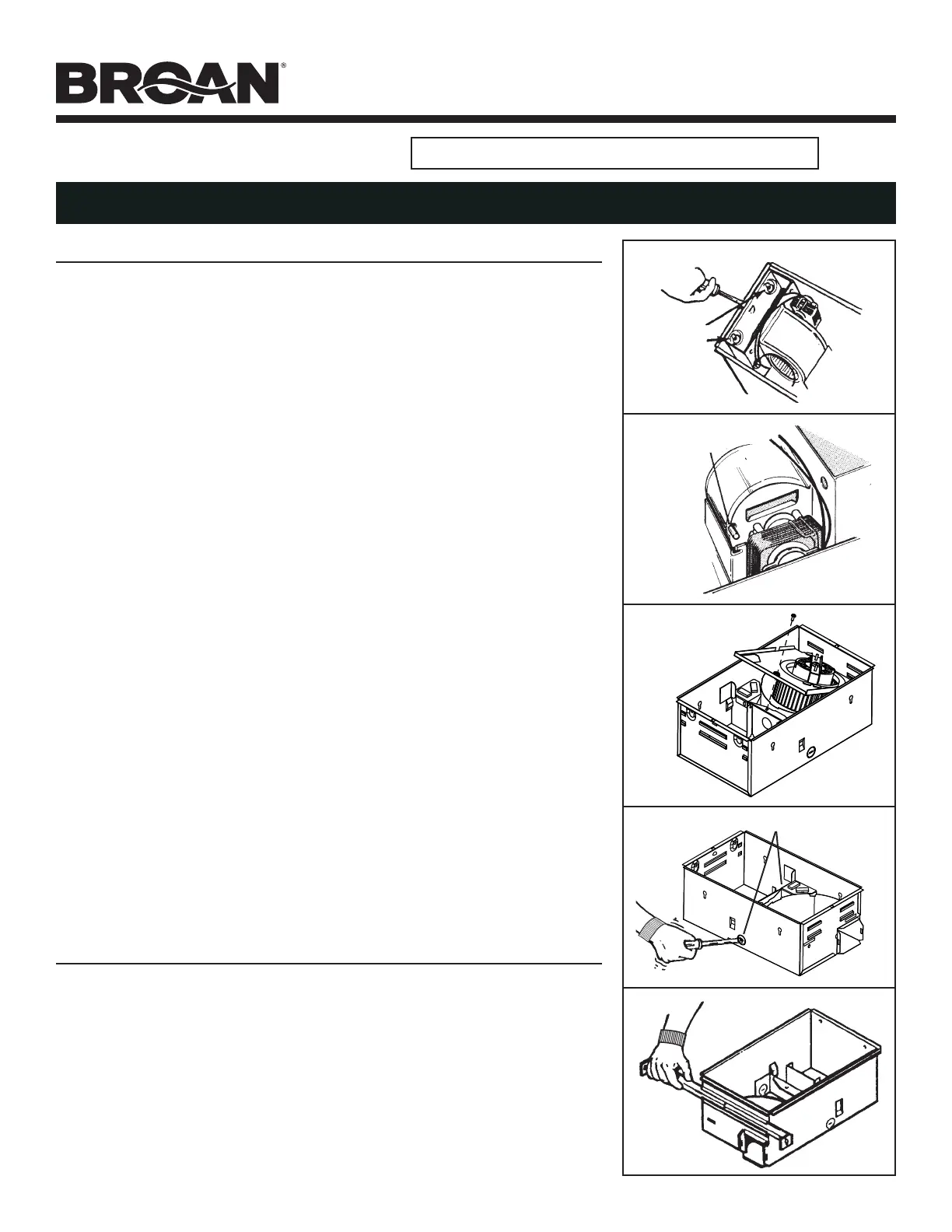

MODELS BHFLED80 • BHF80
Page 1
HEATER / FAN / LIGHT
READ AND SAVE THESE INSTRUCTIONS
FIG. 1
FIG. 2
FIG. 3
FIG. 4
FIG. 5
RETAINING
SCREWS
HINGE PIN
IMPORTANT INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE INSTALLING OR USING THIS HEATER.
To reduce the risk of fire, electric shock, or injury to persons, observe the following:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all
applicable codes and standards, including fire-rated construction codes and standards.
4. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
5. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep
combustible materials, such as furniture, pillows, bedding, papers, clothing, curtains, etc. at least
3 feet (0.9 m) from the front of the heater.
6. Extreme caution is necessary when any heater is used by or near children or invalids and whenever
the heater is left operating and unattended.
7. Do not operate any heater after it malfunctions. Disconnect power at service panel and have heater
inspected by a reputable electrician before reusing.
8. Do not use outdoors.
9. To disconnect heater, turn controls to off, and turn off power to heater circuit at main disconnect
panel (or operate internal disconnect switch, if provided).
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause
an electric shock or fire, or damage the heater.
11. To prevent a possible fire, do not block air intakes or exhaust in any manner.
12. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or
flammable vapors or liquids are used or stored.
13. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons.
14. This product must be grounded.
15. Do not install heater in a tub or shower enclosure.
16. This product is designed for ceiling installation only. This product is designed for installation in
ceilings up to a12/12 pitch. Ductwork must point up. DO NOT MOUNT THIS PRODUCT IN A WALL.
17. Install heater at least 6 inches from floor or any adjacent wall.
18. Do not connect heater to dimmer switch or speed control.
19. Provide a separate 20 AMP circuit. Use 12 GA. power cable of type which meets code.
20. For greatest efficiency, install heater so heat is directed toward tub or shower area. Avoid directing
toward walls or windows.
SAVE THESE INSTRUCTIONS
PREPARATION
1. Make sure the heater assembly is unplugged from the RED receptacle.
2. Loosen the two retaining screws on the inside of the heater discharge opening. Place a screwdriver
tip between the outer wall of the discharge opening and the fan housing. Gently pry outward until
the exhaust discharge slips off the support lip on the outer housing. (FIG. 1)
3. Unhook hinge pins and lift heater assembly out of housing. (FIG. 2)
CAUTION: REMOVE THE SHIPPING RING FROM THE HEATER BLOWER INLET BEFORE OPERATING
THE HEATER.
4. Unplug the fan assembly from the BLACK receptacle.
5. Remove the mounting screw and carefully lift the fan assembly out of the housing. (FIG. 3)
6. Refer to the wiring diagram on the next page. Remove appropriate knockout(s) by inserting a
screwdriver blade into slots and bending it back and forth to break tabs. (FIG. 4)
7. Insert the adjustable mounting brackets into the bracket channels on the housing. (FIG. 5)
For Warranty Statement, Service Parts, Technical Support, or to Register your product,
please visit our website www.broan-nutone.com or call 800-558-1711.
KNOCKOUTS
MODELS BHFLED80 • BHF80
Page 2
RED
WHITE
BLACK
120 VAC LINE IN
LIGHT
VENT
HEAT
GROUND
RED
BLACK
GROUND
RED
BLUE
WHITE
BLACK
INSTALLATION
WARNING: To reduce the risk of fire, do not store
or use gasoline or other flammable vapors and
liquids in the vicinity of the heater.
CAUTION: High temperature, risk of fire, keep
electrical cords, drapery, furnishings, and
other combustibles at least 3 feet (0.9 m) from
the front of the heater and away from the side
and rear.
8. For best results, choose a location which allows
fan to be vented outside with the shortest
possible duct run and the fewest number of
elbows.
9. Position unit between joists and extend
mounting brackets. Position brackets such
that the bottom edge of housing will be flush
with finished ceiling. Mark the top of keyhole
slot on all four mounting brackets. (FIG. 6)
10. Remove unit temporarily, and drive nails
partially into joists at all four marked locations.
(FIG. 7)
11. Hang unit from nails and use embossed
measuring guides to check if unit will be flush
with finished ceiling. Drive nails tight. For wide
joist centers: A #8 x 3/8 self-tapping screw can
be used to join extended brackets together and
create a rigid mount. To ensure a noise-free
mount, crimp the bracket channels tightly
around mounting brackets. (FIG. 8)
12. Snap the damper/duct connector onto housing.
Make sure that tabs on the connector lock in
housing slots. (Top of damper/duct connector
will be flush with top of housing.) (FIG. 9)
NOTE: Make sure damper flap is in place inside
of duct connector. If it is not: Squeeze top
and bottom of connector to snap flap back
into place. (FIG. 10)
Installation work and electrical wiring must be
done by a qualied person(s) in accordance
with all applicable codes and standards,
including re-rated construction codes and
standards.
13. Wire unit according to Figure 11.
14. Replace heater assembly removed in STEP 3
and plug it into RED receptacle. Direct wires
away from blower inlet.
15. Replace fan assembly removed in STEP 5 and
plug it into BLACK receptacle.
FIG. 6
FIG. 7
FIG. 8
EMBOSSED
MEASURING
GUIDES
FIG. 9 FLUSH
FIG. 10
FIG. 11
NOTE
WIRE
OPENING RELEASE SLOT
If the switch* has not been wired properly and wires need
to be moved:
1. Each wire opening has a release slot.
2. Push a small nail or screwdriver into release slot while gently
removing wire.
3. DO NOT pull any wire out of the switch without using the
release slot. The switch may be damaged.
*switch not included
MODELS BHFLED80 • BHF80
Page 3
INSTALLATION (CONT’D)
CAUTION: To avoid the possibility of overheating
and/or re, the grille be installed as shown.must
16. Before installing fan cover, plug in the light of
your new cover (in any outlet) and select LED
color temperature using CCT switch. (FIG. 12)
17. Extend mounting screw as much as possible.
(FIG. 13)
18. Plug in light plug (plug may differ from that
pictured). (FIG. 14)
19. Orientate LED driver on light cover toward fan
side. (FIG. 15)
20. Secure cover by threading mounting post over
mounting screw. Hand-tighten mounting post
until cover is secure against ceiling surface.
(FIG. 16)
21. Snap in lens. (FIG. 17)
FIG. 12 FIG. 13
FIG. 14 FIG. 15
FIG. 16 FIG. 17
NOTE: BHF80 fan cover (grille) will be slightly
different from what shown in pictures.
