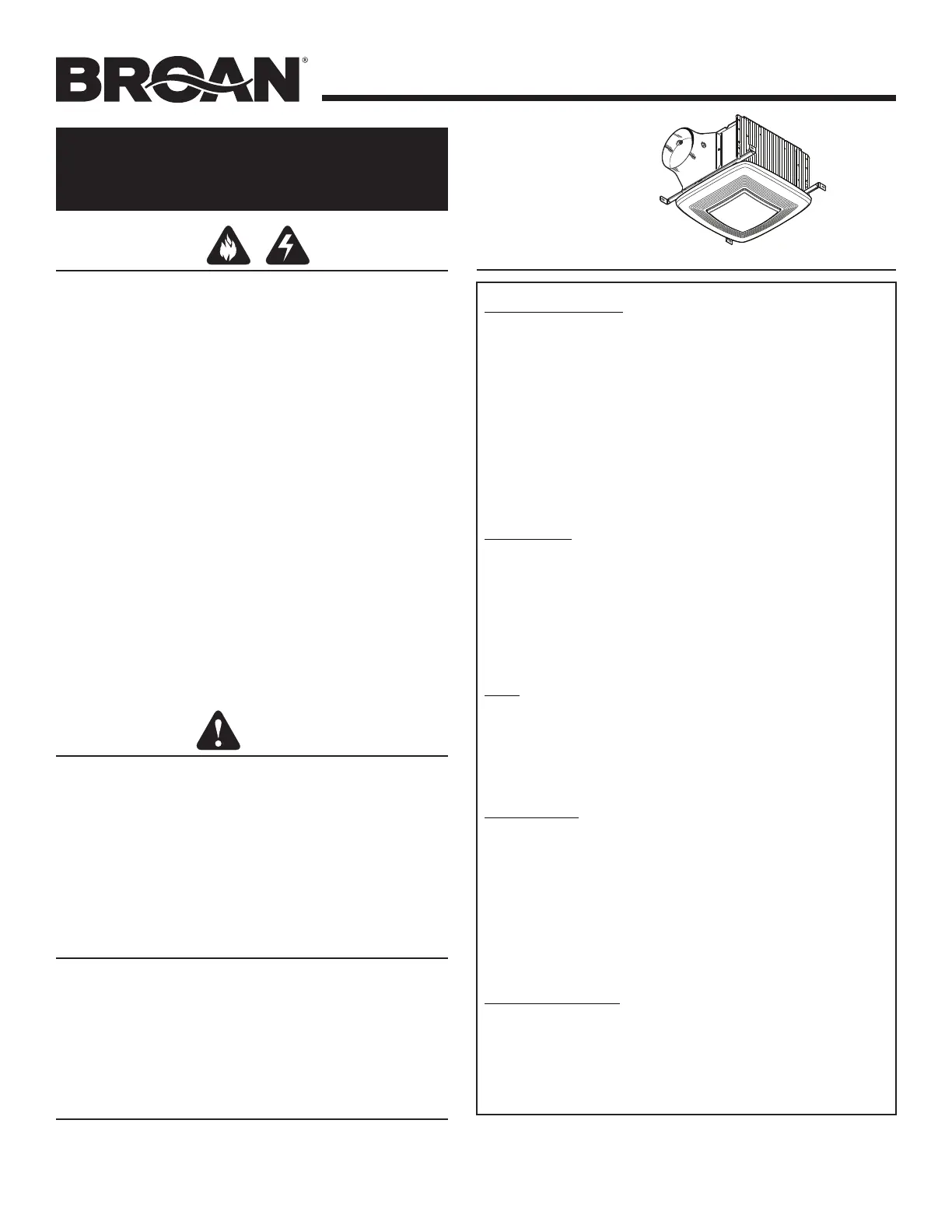

Page 1

VENTILATION FAN / LIGHT MODEL QTXE150FLT

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer at the address

or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service

panel and lock the service disconnecting means to prevent

power from being switched on accidentally. When the service

disconnecting means cannot be locked, securely fasten a promi-

nent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualified

person(s) in accordance with all applicable codes and standards,

including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting

of gases through the flue (chimney) of fuel burning equipment

to prevent backdrafting. Follow the heating equipment manufac-

turer’s guideline and safety standards such as those published

by the National Fire Protection Association (NFPA), and the

American Society for Heating, Refrigeration and Air Conditioning

Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage elec-

trical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Acceptable for use over a tub or shower when connected to a

GFCI (Ground Fault Circuit Interrupter) - protected branch circuit

(ceiling installation only).

8. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous

or explosive materials and vapors.

2. This product is designed for installation in ceilings up to a 12/12

pitch (45 degree angle). Duct connector must point up. DO NOT

MOUNT THIS PRODUCT IN A WALL.

3. To avoid motor bearing damage and noisy and/or unbalanced

impellers, keep drywall spray, construction dust, etc. off power unit.

4. Please read specification label on product for further information

and requirements.

READ AND SAVE

THESE INSTRUCTIONS

WARRANTY

Installer: Leave this manual with

the homeowner.

OPERATION

CLEANING & MAINTENANCE

For quiet and efficient operation, long life, and attractive appear-

ance - lower or remove grille and vacuum interior of unit with the

dusting brush attachment.

The motor is permanently lubricated and never needs oiling. If the

motor bearings are making excessive or unusual noises, replace

the blower assembly (includes motor and impeller).

product online at:

www.broan-nutone.com/register

Use an on/off switch or speed control to operate this ventilator. See

“Connect Wiring” for details.

Use of speed controls other than the

Broan Models 78V and 78W may cause a motor humming noise.

Limited Warranty

Warranty Period and Exclusions: Broan-NuTone LLC (the “Company”) warrants to the original

consumer purchaser of its product (“you”) that the product (the “Product”) will be free from

material defects in the Product or its workmanship for a period of three (3) years from the date of

original purchase.

The limited warranty period for any replacement parts provided by the Company and for any Products

repaired or replaced under this limited warranty shall be the remainder of the original warranty period.

This warranty does not cover speed controls, ﬂ uorescent lamp starters, tubes, halogen and in-

candescent bulbs, fuses, ﬁ lters, ducts, roof caps, wall caps and other accessories for ducting that

may be purchased separately and installed with the Product. This warranty also does not cover

(a)normal maintenance and service, (b)normal wear and tear, (c)any Products or parts which

have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufﬁ cient

maintenance, storage or repair (other than repair by the Company), (d)damage caused by faulty

installation, or installation or use contrary to recommendations or instructions, (e)any Product

that has been moved from its original point of installation, (f)damage caused by environmental or

natural elements, (g)damage in transit, (h)natural wear of ﬁ nish, (i)Products in commercial or

nonresidential use, or (j)damage caused by ﬁ re, ﬂ ood or other act of God. This warranty covers

only Products sold to original consumers in the United States by the Company or U.S. distributors

authorized by the Company.

This warranty supersedes all prior warranties and is not transferable from the original consumer

purchaser.

No Other Warranties: This Limited Warranty contains the Company’s sole obligation and your sole

remedy for defective products. The foregoing warranties are exclusive and in lieu of any other war-

ranties, express or implied. THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS

WARRANTIES, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES IMPLIED BY LAW, INCLUDING

WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR-

POSE. To the extent that applicable law prohibits the exclusion of implied warranties, the duration

of any applicable implied warranty is limited to the period speciﬁ ed for the express warranty above.

Some states do not allow limitations on how long an implied warranty lasts, so the above limita-

tion may not apply to you. Any oral or written description of the Product is for the sole purpose of

identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as

to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid,

such provision shall be ineffective only to the extent of such prohibition or invalidity, without invali-

dating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide

replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent

the Company ﬁ nds it to be covered by and in breach of this limited warranty under normal use and

service. The Company will ship the repaired or replaced Product or replacement parts to you at no

charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other

freight charges incurred in the shipment of the Product or part to the Company. If you must send the

Product or part to the Company, as instructed by the Company, you must properly pack the Product

or part—the Company is not responsible for damage in transit. The Company reserves the right to

utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair

or replacement process. Such Products and parts will be comparable in function and performance

to an original Product or part and warranted for the remainder of the original warranty period.

Exclusion of Damages: THE COMPANY’S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR

REPAIR OR REPLACE, AT THE COMPANY’S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE

REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY’S SOLE AND EXCLUSIVE OBLI-

GATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL

OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE

OR PERFORMANCE.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation or exclusion may not apply to you. This warranty gives you speciﬁ c legal rights,

and you may also have other rights, which vary from state to state.

This warranty covers only replacement or repair of defective Products or parts thereof at the

Company’s main facility and does not include the cost of ﬁ eld service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclu-

sions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions,

nor will such assistance extend or revive the warranty.

The Company will not reimburse you for any expenses incurred by you in repairing or replacing

any defective Product, except for those incurred with the Company’s prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a)notify the Company

at the address or telephone number stated below within seven (7)days of discovering the covered

defect, (b)give the model number and part identiﬁ cation and (c)describe the nature of any defect

in the Product or part. At the time of requesting warranty service, you must present evidence of

the original purchase date. If you cannot provide a copy of the original written limited warranty,

then the terms of the Company’s most current written limited warranty for your particular product

will control.The most current limited written warranties for the Company’s products can be found

www.broan.com .

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027

www.broan.com 800-637-1453

Page 2

VENTILATION FAN / LIGHT MODEL QTXE150FLT

TYPICAL

INSTALLATIONS

Housing

mounted to

I-joists.

Use I-joist

spacer block

(provided).

Housing mounted

anywhere between

trusses using

hanger bars.

Housing

mounted

anywhere

between

I-joists

using

hanger bars.

Housing

mounted to

joists.

Housing

mounted

anywhere

between

joists

using

hanger bars.

Housing

mounted to

truss.

PLAN THE INSTALLATION

Cooking

Equipment

Floor

COOKING AREA

Do not install above or

inside this area.

45o45o

NOT FOR USE IN

A COOKING AREA.

ROOF CAP*

(with built-in

damper)

WALL CAP*

(with built-in

damper)

6-IN. ROUND

ELBOWS*

6-IN. ROUND

DUCT*

FAN

HOUSING

Seal gaps

around

housing.

Seal duct

joints with

tape.

Keep duct

runs short.

INSULATION

(Place around and

over fan housing.)

POWER

CABLE*

*Purchase

separately.

The ducting from this fan to the outside of the building has a strong effect on the

air flow, noise and energy use of the fan. Use the shortest, straightest duct routing

possible for best performance, and avoid installing the fan with smaller ducts than

recommended. Insulation around the ducts can reduce energy loss and inhibit

mold growth. Fans installed with existing ducts may not achieve their rated airflow.

Page 3

VENTILATION FAN / LIGHT MODEL QTXE150FLT

1b. Mount housing anywhere between

trusses, joists, or -joists using hanger I

bars.

Sliding hanger bars are provided to allow for accurate positioning

of housing anywhere between framing. They can be used on all

types of framing ( -joist, standard joist, and truss construction) I

and span up to 24”.

Attach the MOUNTING CHANNELS to the housing using the

SCREWS supplied.

Extend HANGER

BARS to the width of

the framing.

Hold housing in place

so that bottom edge of

housing will be flush

with finished surface

of ceiling. For 1/2”

thick ceiling material,

position bottom of

each mounting flange

flush with bottom of

joist.

INSTALLATION

1a. Mount

housing to

joist.

Hold housing

in place so that

bottom edge

of housing will

be flush with

finished surface

of ceiling. For

1/2” thick ceiling

material, position bottom of each mounting flange flush

with the bottom of joist. The housing mounts with four (4)

screws or nails. Screw or nail housing to joist through low-

est holes in each mounting flange, then through highest

holes. NOTE: Mounting to I-JOIST (shown) requires use

of SPACERS (included) between the highest hole of each

mounting flange and the I-joist.

2. Attach

damper/duct

connector.

3. Install

6-inch round

ductwork.

Connect 6-inch

round ductwork

to damper / duct

connector. Run

ductwork to a roof

cap or wall cap.

Tape all ductwork

connections

to make them

secure and air tight.

SPACER

(use for

mounting

to I-Joist)

TOP AND BOTTOM FLANGES

REMAIN OUTSIDE OF HOUSING

I-JOIST

SCREW

FROM

PARTS BAG

INSERT

TAB INTO

SLOT IN

HOUSING

To ensure a noise-free

mount: Secure hang-

ing bars together with

SCREWS and use a

pliers to crimp mount-

ing channels tightly

around hanger bars.

Produktspecifikationer

Varumärke:	Broan
Kategori:	Fläkt
Modell:	QTXE150FLT

Behöver du hjälp?

Om du behöver hjälp med Broan QTXE150FLT ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Fläkt Broan Manualer

Broan Ultra Pro RB110L1 Bruksanvisning

3 April 2025

Broan QTXE110S Bruksanvisning

2 April 2025

Broan Ultra Pro RB110 Bruksanvisning

1 April 2025

Broan QTXE150 Bruksanvisning

1 April 2025

Broan Roomside AER110LBN Bruksanvisning

1 April 2025

Broan AER80CCTK Bruksanvisning

1 April 2025

Broan Roomside AER110SLW Bruksanvisning

1 April 2025

Broan Flex AE50F1 Bruksanvisning

1 April 2025

Broan 744L Bruksanvisning

1 April 2025

Broan Roomside AER80LWH Bruksanvisning

1 April 2025

Fläkt Manualer

Nyaste Fläkt Manualer

Innoliving INN-533 Bruksanvisning

8 April 2025

Innoliving INN-532 Bruksanvisning

8 April 2025

Innoliving INN-531 Bruksanvisning

8 April 2025

Panasonic F-30SMH Bruksanvisning

5 April 2025

Ryobi RY40HF02 Bruksanvisning

2 April 2025

Fantini Cosmi ASPIRKAPPA Bruksanvisning

1 April 2025

Honeywell QuietSet 5 HYF260 Bruksanvisning

1 April 2025

Honeywell Quietset Slim Mini HTF210 Bruksanvisning

1 April 2025

PAX TSC 13 Bruksanvisning

1 April 2025

DeepCool FT12-3 Bruksanvisning

1 April 2025
