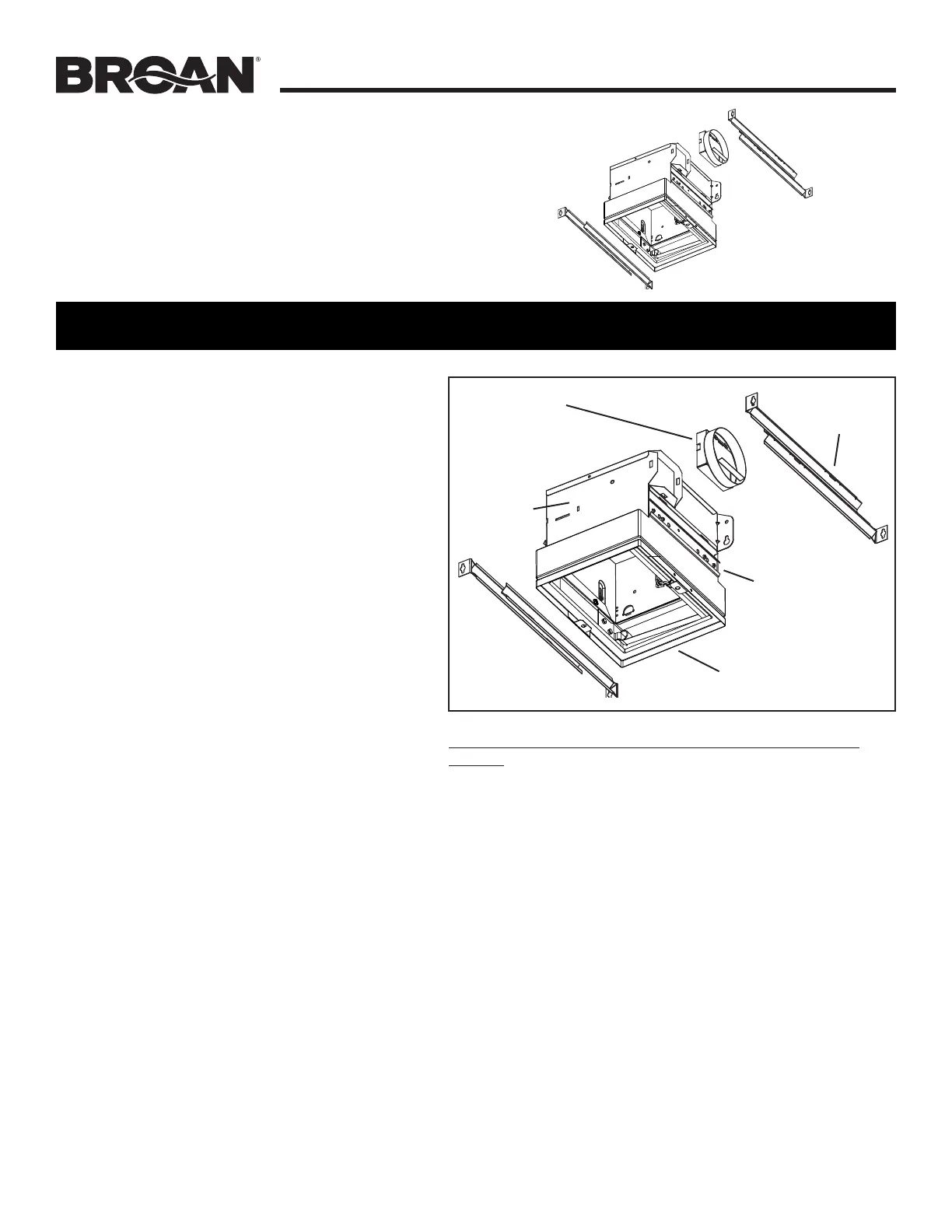

MODEL RDH
Page 1
For Use in 1, 2 or 3 Hour Rated Floor-Ceiling and
Roof-Ceiling Designs.
Horizontal Mount Only.
For use with the following Broan ventilation fan models:
• 80RDF, 110RDF, HD50RDF
The following components are included with this
accessory kit:
(1) Radiation Damper and Fan Housing Assembly
(1) Metal Duct Connector
(4) Support Angles
(1) Housing Mask
Identify the following ventilation fan (purchased
separately) components and discard:
• Plastic Fan Grille Assembly
• Plastic Duct Connector Assembly
ROUGH-IN KIT WITH
RADIATION DAMPER
READ AND SAVE THESE INSTRUCTIONS
METAL DUCT
CONNECTOR
HOUSING
SLIDE
CHANNEL
SUPPORT
ANGLE
RADIATION
DAMPER
ASSEMBLY
Assemble support angles and duct connector to ventilation fan
housing:
1. Snap metal duct connector onto housing. Make sure that tabs on
the duct connector lock into the slots on the housing. Damper flap
hinge should be positioned toward top of housing.
2. Slide channels can be adjusted up or down to accommodate
different ceiling thicknesses.
3. Insert (2) support angles into each slide channel.
MODEL RDH
Page 2
NON-COMBUSTIBLE
FLOOR / CEILING
INSTALLATION
1. Plan installation so that ceiling penetration is located
within ceiling tiles or panels without necessitating cuts
in any ceiling suspension main runners or cross tees.
Ifrequired, a maximum of one runner or cross tee
may be cut to accommodate desired damper location.
Cutends must be supported by a minimum 12 gauge
(3mm) steel, vertical hanger wire.
2. Mount fan/damper assembly to the deck or ceiling
structure above or adjacent to the assembly. If the
assembly is hung from the structure above, a minimum
12 gauge (3mm) steel, hanger wire must be used. There
must be a minimum of two wires on each of two opposite
sides. If the assembly is directly mounted to the adjacent
structure, use #8 (M4) sheet metal screws or 1/4”
(6mm) diameter bolts with nuts (hardware not provided)
to mechanically fasten it to the structure. Position fan/
damper assembly so that the inlet face of the radiation
damper is flush with the finished surface of the ceiling.
Ceiling opening must be no larger than the inlet opening
of the damper.
3. New Construction
A housing mask has been provided to keep construction
dust, drywall spray, paint, etc. from damaging the
radiation damper or blower assembly.
a) Bend up the small tab of the mask.
b) Tuck the opposite side of the mask under one of the
damper’s grille mounting ears and push mask up into
damper housing.
Remove mask before installing grille or operating fan.
4. Attach the metal grille over the inlet face of the radiation
damper using (2) #8-18 x 0.812” sheet metal screws
(provided).
CLASSIFIED SEE DETAILS ON UL
CLASSIFICATION
MARKING ON
PRODUCT
FAN
GRILLE
WIRE
DAMPER
GRILLE
SCREW
CEILING
MOUNTING
BRACKET
MODEL RDH
Page 3
WOOD CONSTRUCTION
FLOOR / CEILING
INSTALLATION
1. Position radiation damper on the inlet side of the fan so
that the arrow in the damper will point in the finished UP
installation. Attach the damper to the fan using #8 (M4)
sheet metal screws (provided). There must be a minimum
of two connections on each of two opposite sides.
Care must be taken to ensure that the fasteners do not
interfere with the closing of the damper curtain. For best
results, use mounting holes provided.
2. Position fan/damper assembly so that the inlet face of
the radiation damper is flush with the finished surface of
the ceiling. Fasten fan/damper assembly to the building
structure by driving #10 (M5) minimum sheet metal
screws or #8d minimum nails (hardware not provided)
through the fan mounting brackets and into the ceiling
joists. There must be a minimum of two fasteners on
each of two opposite sides. Ceiling opening must be
no larger than the inlet opening of the damper.
3. New Construction
A housing mask has been provided to keep construction
dust, drywall spray, paint, etc. from damaging the
radiation damper of blower assembly.
a) Bend up the small tab of the mask.
b) Tuck the opposite side of the mask under one of the
damper’s grille mounting ears and push mask up into
damper housing.
Note: Mask can be put in place before or after the
blowers assembly is installed.
Remove mask before installing grille or operating
fan.
4. Attach the metal grille, supplied, over the inlet face of
the radiation damper using #8 (M4) sheet metal screws
(provided). There must be a minimum of one screw
on each of two opposite sides. For best results, use
mounting holes provided.
WARNOCK HERSEY LISTING
INCLUDES DAMPER ONLY. IT
DOES NOT INCLUDE EXHAUST
FAN. DAMPERS MAY BE USED
WITH UL LISTED FAN MODELS
NOTED.
WARNOCK HERSEY LISTED
FASTENER
FAN
MOUNTING
BRACKET
GRILLE GRILLE SCREW
CEILING
DAMPER
16” OR 24” ON CENTER
TRUSS
2 x 4 BLOCKING
Radiation damper and fan combination is UL / cUL Listed for
use in the following Floor, Ceiling, and Roof Assemblies:
L521, L528, L546, L558, L562, L574, L576, L581, L583,
L585, P522, P533, P538, P545, AND P547.
