Installation Over the Range
Instructions Microwave Oven
Read these instructions completely and carefully.
• IMPORTANT – Save these
instructions for local inspector’s use.
• IMPORTANT – Observe all
governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
BEFORE YOU BEGIN
• Note to Consumer – Keep these
instructions for future reference.
• Skill level – Installation of this appliance requires
basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
31-7000091 Rev. 4 12-23
English/Spanish
231-7000091 Rev. 4

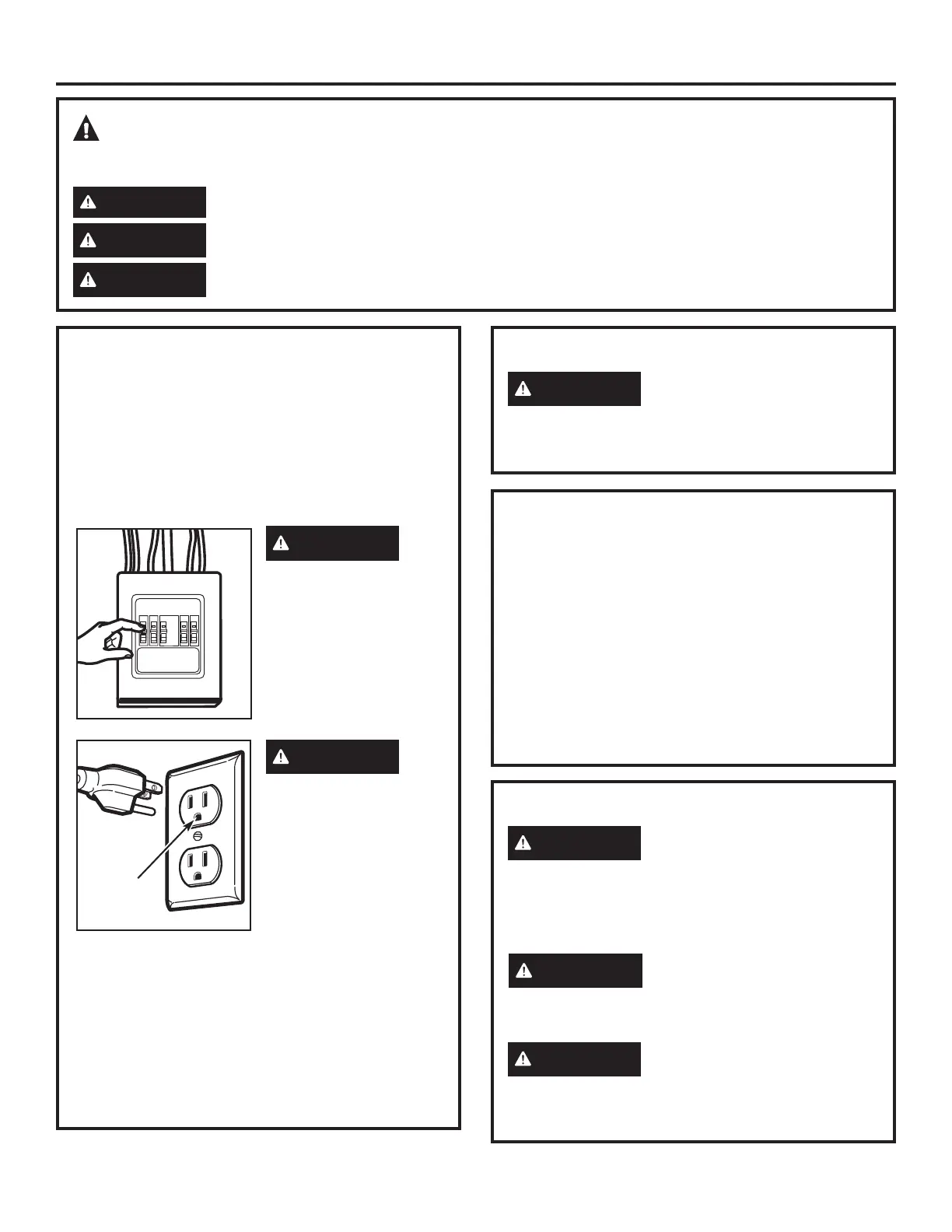

IMPORTANT SAFETY INSTRUCTIONS
A qualified electrician must perform a ground
continuity check on the wall receptacle before
beginning the installation to ensure that the
outlet box is properly grounded. If not properly
grounded, or if the wall receptacle does not meet
electrical requirements noted (under ELECTRICAL
REQUIREMENTS), a qualified electrician should be
employed to correct any deficiencies.
Risk of Electric Shock.
Can cause injury
or death: Remove
house fuse or open
circuit breaker before
beginning installation
to avoid severe or fatal
shock injury.
Risk of Electric Shock.
Can cause injury or
death: THIS APPLIANCE
MUST BE PROPERLY
GROUNDED to avoid
severe or fatal shock.
The power cord of this appliance is equipped
with a three-prong (grounding) plug which mates
with a standard three-prong (grounding) wall
receptacle to minimize the possibility of electric
shock hazard from this appliance.
Where a standard two-prong wall receptacle is
encountered, it must be replaced with a properly
grounded three-prong wall receptacle, installed
by a qualied electrician.
Ensure
proper
ground
exists before
use
FOR YOUR SAFETY:
For personal safety, the
mounting surface must be
capable of supporting the cabinet load, in addition to
the added weight of this 63–85 pound product, plus
additional oven loads of up to 50 pounds or a total
weight of 113–135 pounds.
For personal safety, this product
cannot be installed in cabinet
arrangements such as an island or a peninsula. It
must be mounted to BOTH a top cabinet AND a wall.
To avoid the risk of personal
injury (back injury or other injuries
due to excessive weight of the microwave oven) or
property damage, you will need two people to install
this microwave oven.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These
words are defined as:
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
ELECTRICAL REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 14.5 amps
and 1.7 kilowatts. This product must be connected to
a supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of
the National Electrical Code or the prevailing local
code for this kilowatt rating. The power supply cord
and plug should be brought to a separate 15- to
20-ampere branch circuit single grounded outlet. The
outlet box should be located in the cabinet above
the microwave oven. The outlet box and supply
circuit should be installed by a qualified electrician
and conform to the National Electrical Code or the
prevailing local code.
CAUTION
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
Can cause injury or death: DO
NOT, under any circumstances,
cut, deform or remove any of the prongs from the
power cord. Do not use with an extension cord.
Failure to comply may cause fire.
WARNING
WARNING
WARNING
Installation Instructions
31-7000091 Rev. 4 3
Installation Instructions

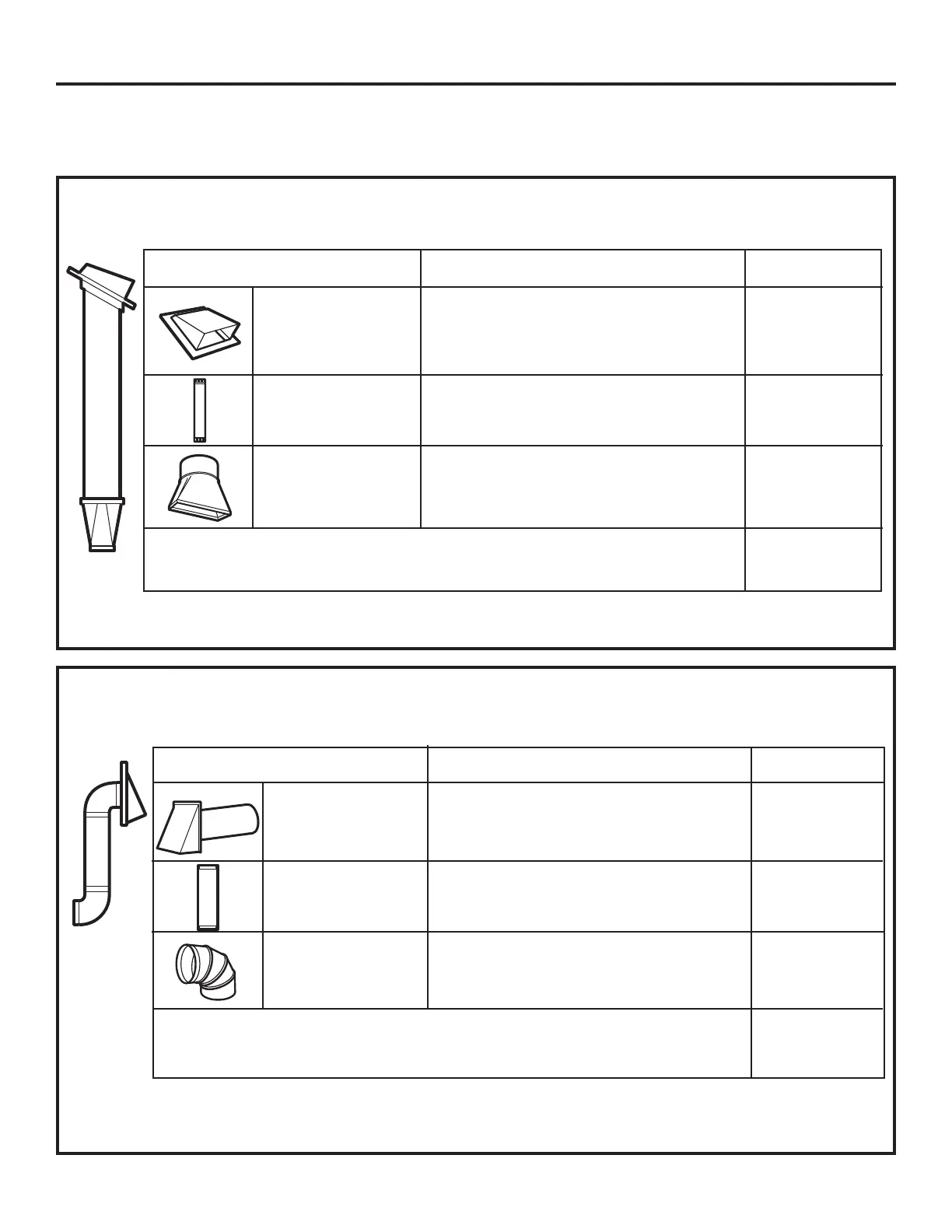

HOOD EXHAUST
The following chart describes an example of one possible ductwork installation.
NOTE: Read these next two pages only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back
into the room, proceed to page 11.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall
should be prepared at the time it is constructed by leaving enough space between the wall studs to
accommodate exhaust.
* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
The following chart describes an example of one possible ductwork installation.
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
EQUIVALENT NUMBER
DUCT PIECES LENGTH x USED = LENGTH
Roof Cap 24 Ft. x (1) = 24 Ft.
12 Ft. Straight Duct 12 Ft. x (1) = 12 Ft.
  Ǝ5RXQG
Rectangular-to-Round 5 Ft. x (1) = 5 Ft.
Transition Adaptor*
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood.
Total Length = 41 Ft.
EQUIVALENT NUMBER
DUCT PIECES LENGTH* x USED = LENGTH
Wall Cap 40 Ft. x (1) = 40 Ft.
3 Ft. Straight Duct 3 Ft. x (1) = 3 Ft.
(31»4Ǝ[Ǝ5HFWDQJXODU
90° Elbow 10 Ft. x (2) = 20 Ft.
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood.
Total Length = 63 Ft.
