Customer care helpline: 0117 938 1900
www.caple.co.uk

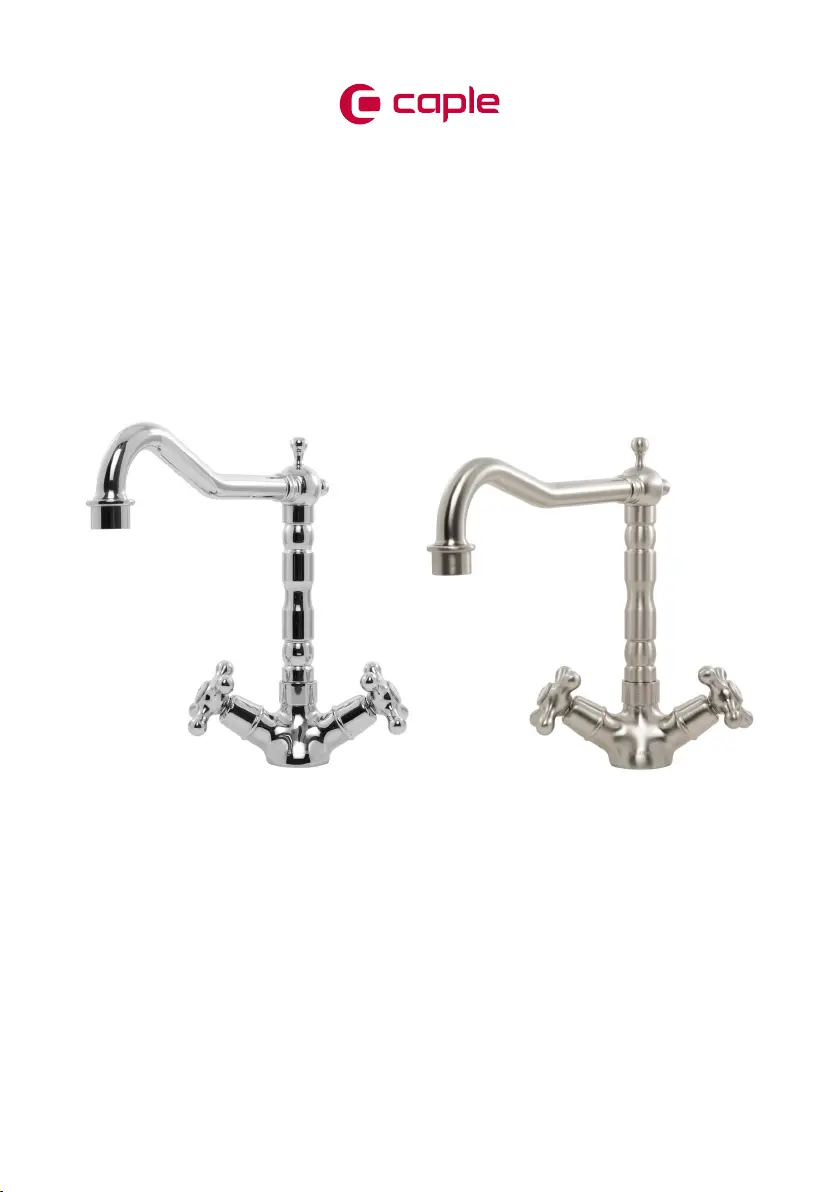

CH ROM E AN D BRUS HED NIC KE L TAP
C AR E , INS TALL ATIO N AN D GUAR A NT E E IN FOR MATION
MO DE L CO DE : A NT4 / CH & AN T4 / B N
2 INSTALLATION GUIDE ANT4/CH & ANT4/ BN Please keep this instruction manual for future reference
I NS TA L L ATI O N G U I DE
Thank you for purchasing your Caple tap.
These taps have been manufactured and inspected to exacting standards and are guaranteed to give years of trouble
free operation providing our care and installation guidelin es have been followed.
NOTE: Please see back page for installation instructions
4 INSTALLATION GU IDE A NT4/CH & ANT4/ BN Please keep this instruction manual for future reference
INS TAL L ATIO N I N S TR UC T I O N S
- Turn the spout and body so the tap is facing forwards, the
screw on the spout indicates the rear of the body. The hot water
connection should be on the left of the tap.
- Ensure the hot and cold pipes are thoroughly flushed to remove
any debris.
- A 35mm hole is required in either the sink or worktop.
- The fixing bolt must be screwed into the tap base, ensuring the
threads of the bolt are not damaged in the process.
- Pass the nylon washer over the fixing bolt flush to the bottom
of the tap base, then pass the bolt through the sink or worktop
(ensuring the nylon washer remains directly under the tap base).
- Pass the rubber washer and then the metal washer (on the
underside of the sink/worktop) over the fixing bolt and fix using
the fixing nut.
- Screw the flexi-tail pipes into the base of the tap, ensuring the
pipes threads are not damaged in the process. If the flexi-tails
are already inserted into the tap base, please ensure these are
screwed in tightly to prevent any leaks.
- Finally connect the flexi-tail pipes to the hot and cold supplies
ensuring they are connected to the correct supplies.
C ARE O F YO U R TAP S
- Only clean your taps with soap or mild liquid detergent and
clean water then dry using a soft cloth
- Do not use chemical cleaners, or bleach based solutions to clean
your tap, contact could affect the finish of your tap.
- Do not use abrasive cleaners, liquids, powders or pads. These
will damage the finish of your tap and void the guarantee.
- Provided all of the above points are adhered to the surface finish
of your Caple Tap is guaranteed for 5 years.
PR E IN S TAL L ATI O N C H EC K S
- The temperature of the hot water supply must not exceed 70°C.
- Water pressure requirements: minimum required pressure varies
dependent on model, maximum pressure 5 bar.
- Always seek advice from a qualified installer to ensure your
installation and water supply to your taps comply with the water
regulation (WRAS) requirements and good plumbing practice.
- It is good practice to ensure that both hot and cold water
supplies to your tap are of an equal pressure to provide a
consistent flow. If supplies are not of equal pressure then
a non return valve should be fitted on the hot inlet.
- Supplies of water should be from a common source (mains or
tank fed).
- We recommend that a service valve is installed in
the supply lines to the tap to enable water isolation
if required.
POST I N S TAL L ATIO N P O I N TS
- We suggest when connecting screw connections that PTFE tape
is used before the joints are fully tightened.
- Before use correctly check the installation for leaks, and turn the
hot and cold water on to thoroughly flush any small particles
that may have been dislodged during the tap installation.
- THESE INSTRUCTIONS ARE INTENDED AS A GUIDE,
IF IN ANY DOUBT ENSURE YOU SEEK ADVICE FROM A
CERTIFIED PLUMBER.
GU A RA N TEE
-Your Caple tap is guaranteed for 5 years.
- Should you have any defects as detailed above during the appropriate guarantee period we guarantee to repair or replace the
defective products or parts, or, at our option refund the purchase price assuming we were advised immediately of any claim
in writing.
-It is important that you keep a proof of purchase (such as your receipt) to facilitate your guarantee.
TE R MS AND CO NDI T I O N S
-Guarantee conditions are only valid if the Care guidelines listed above are followed.
-Our obligation under the guarantee is to the original purchaser, and may not be transferred.
- The guarantee is valid for UK domestic installations only and relates to defects in manufacture, materials and workmanship only.
- Issues that arise due to normal wear and tear (for example valves, discs or washers), poor installation, improper use or accidental
damage are not covered by the Caple guarantee. Spare parts can be purchased from our Customer care helpline 0117 938 1900.
- No liability is accepted for consequential damage to other household fixtures, fittings or furnishings relating to any claim – even if
attached to the product.
- If it is more economically viable a replacement tap will be supplied, this tap might vary from the original design should range changes
of occurred since the initial supply.
-We reserve the right to inspect any tap before committing to support under the guarantee conditions.
