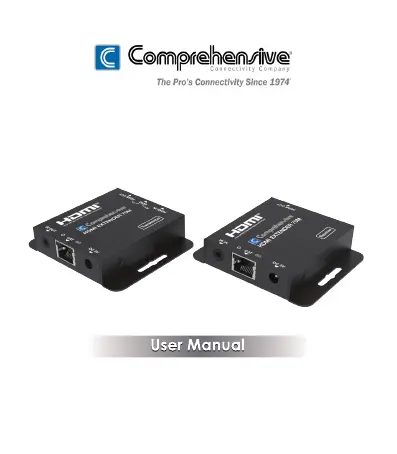

CHE-1
4K HDMI xtender with IR ontrole c up to
230ft (70m)
VER 1.0
Thank you for purchasing this product
For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product.
Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shook, lighting strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.
Table of Contents
1. Introduction..............................................................................
2. Features....................................................................................
3. Package Contents..................................................................
4. Specifications..........................................................................
5. Operation Controls and Functions........................................
5.1 Transmitter Panel...............................................................
5.2 Receiver Panel..................................................................
5.3 IR Pin Definition..................................................................
6. Application Example..............................................................
1
1
2
2
4
4
5
6
7
1. Introduction
This HDMI Extender can extend high definition video/audio signal
and IR control signal up to 230ft/70m for 1080p resolution, and
131ft/40m for 4K30 resolution via a single CAT6 cable, which can
achieve zero-delay, uncompressed long-distance transmission
between the transmitter and receiver. This extender with HDMI loop
output can be cascaded to the next extender, supporting resolution
up to 4K@30Hz. It supports EDID copy function (you can choose
local or remote EDID). It supports audio formats up to PCM7.1,
Dolby True HD, DTS HD. This product can be widely used in multi-
media conference halls, TV teaching and large-screen displays.
2. Features
1/7
☆ HDMI 1.4 and HDCP 1.4 compliant
☆ Support video resolution up to 4K@30Hz
☆ The maximum transmission distance via a single CAT6/5E
cable is as follows:
CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
☆ Support copying EDID from receiver display or loop out display
☆ Allow for cascading via additional HDMI loop out port
☆ Compact design for easy and flexible installation

Produktspecifikationer

Varumärke: Comprehensive
Kategori: Audio/video-omvandlare
Modell: CHE-1
