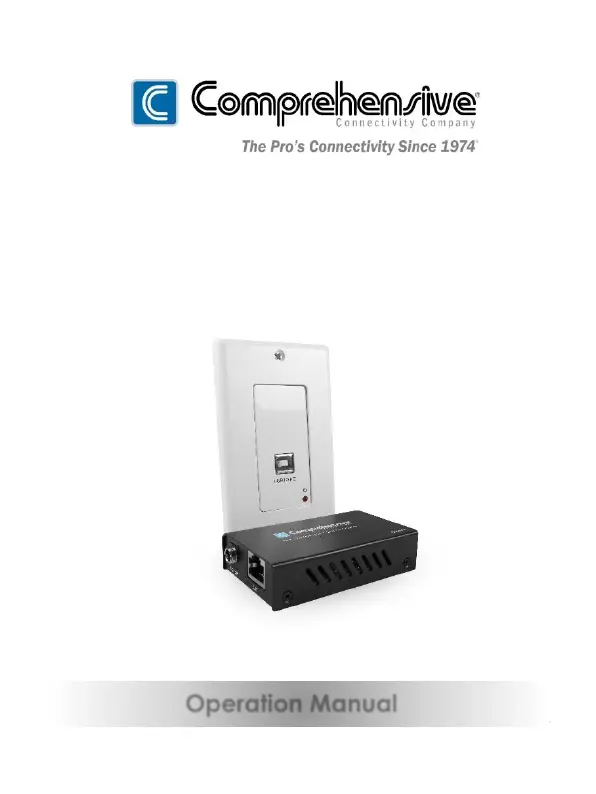

CHE-HDBTWP105K
Pro AV/IT USB 2.0 High Speed Single Gang Wall
Plate Extender Kit up to 328ft
Operation Manual
1 / 5
1. Introduction
Comprehensive’s CHE-HDBTWP105K Wall Plate Extender kit was designed to extend
high speed USB 2.0 up to 328ft over Cat5e or Cat6 cables with data transfer speeds
up to 480Mbps. This product can be used as an extension for applicable USB devices
such as keyboards, mice, webcams, printers and USB hard drives. No additional
drivers needed. You can connect your USB 2.0 devices hassle free. The two high
speed USB 2.0 ports allow you to connect two USB devices and use them
simultaneously. When connected to the power adapter at the receiver (RX) end, this
unit will transit power to the wall plate transmitter to operate.
2. Features
• Supports USB 2.0 protocol, transmission rate up to 480Mbps
• Supports extend distance up to 328ft (100 meters) via CAT 5e/6 cable
• Supports one USB-B port Input in wall-plate Transmitter
• Supports two USB 2.0 ports Output in Receiver
• Receiver is powered by a connecting 12V/1A power adapter
• Simply plug and play with no drive and setting installation required
• Compact design for easy and flexible installation
• 3 Year Warranty
3. Package Contents
• USB 2.0 Extender Wallplate Transmitter x 1
• Screws for mounting Wallplate x 2
• White face plate x 1
• Screws to mount face plate x 2
• USB 2.0 Box Receiver x 1
• USB 2.0 cable Type A to Type B (3 feet) x 1
• 12V/1A Power Adapter x 1
• User Manual x 1
2 / 5
4. Specifications
Technical
USB protocol
USB 2.0
Transmission rate
Up to 480Mbps
Transmission distance
328ft (100M)
ESD Protection
Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connections
Wall-plate Transmitter
Input port: USB-B [female] x 1
Output port: RJ45 [female] x 1
Receiver
Input port: RJ45 [female] x 1
Output port: USB-A [female] x 2
Mechanical
Housing
Metal Enclosure
Color
Transmitter: White decora panel, Black chassis
Receiver: Black
Dimensions
Wall-plate Transmitter: 4.1” [W] x 1.77” [D] x 1.38” [H] Receiver:
3.23” [W] x 1.93” [D] x 0.79” [H]
Weight
Wall-plate Transmitter: 0.25 lb, Receiver: 0.25 lb
Power Supply
Input: AC100~240V 50/60Hz
Output: DC 12V/1A
Power Consumption
Transmitter: 1.3 Watts, Receiver: 2.3 Watts
Operating Temperature
32°F ~ 104°F
Storage Temperature
-4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)

Produktspecifikationer

Varumärke: Comprehensive
Kategori: Audio/video-omvandlare
Modell: CHE-HDBTWP105K
