RFM-CVN1
Multi View Integration Interface with A/V Input for
Dodge Caravan with MyGig Radio
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.083019
1 of 5
- Adds a reverse camera input, 6 video plus 1 audio/video inputs.
- Uses the steering wheel controls buons to toggle between the sources.
- Includes side mirror mounted camera pods with adjustable angle cameras.
- Turn signals automacally triggers the corresponding side camera.
- Turn signal camera trigger can be turned on or o by using the SWC buon.
- Forced view funcon on cameras (except side cameras).
- Ability to toggle from back-up camera to cargo camera and trailer camera while in reverse gear.
PRODUCT FEATURES:

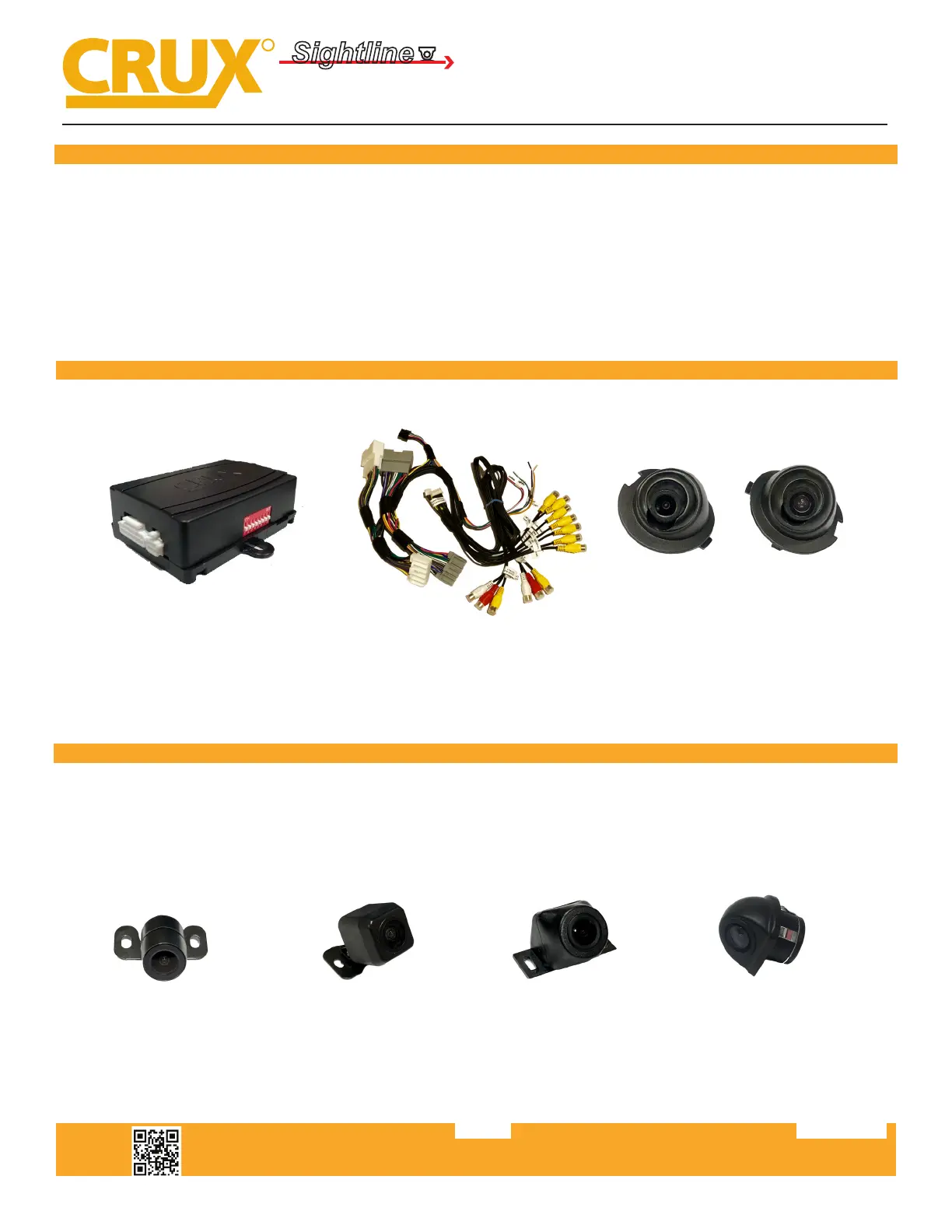

PARTS INCLUDED:
RFM-CVN1 Module RFM-CVN1 Harness CVS-CVN Side Mirror Mounted
Cameras
OPTIONAL ADD-ON CAMERAS:
Oponal add on cameras are available to complete the mul-view capability of the RFM-CVN1. Cameras available
and sold separately include: (More cameras can be found at www.cruxinterfacing.com)
CFF-01 Bullet Type Front
Camera
CFF-02 Square Body Front
Camera
CFF-03 Grille Mount Front
Camera
CUL-16 Universal Lip Mount
Camera
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.083019
2 of 5
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Front Camera Input
Right Camera Input
Left Camera Input
Cargo Camera Input
Aftermarket Backup Camera Input
Trailer Camera Input
Auxiliary Camera Input
Audio/Video
Input
Front and Rear Camera Power Output 12V (purple/white)
Left and Right Camera Power Output 12V (green/white)
Cargo and Trailer Camera Power Output 12V (orange/white)
Video AUX Power Output 12V (red/white)
Connect this 6-pin plug if OEM
backup camera is being used
Audio/Video
Output
TO RADIO
WHITE
22-PIN
(MALE)
GRAY
22-PIN
(MALE)
WHITE
22-PIN
(FEMALE)
GRAY
22-PIN
(FEMALE)
TO FACTORY
HARNESS
DIP SWITCH SETTINGS:
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3 Le Camera ON Le Camera OFF
4Right Camera ON Right Camera OFF
5Cargo Camera ON Cargo Camera OFF
6Trailer Camera ON Trailer Camera OFF
7AUX A/V ON AUX A/V OFF
8Set to ON
RFM-CVN1
Multi View Integration Interface with A/V Input for
Dodge Caravan with MyGig Radio
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0830193 of 5
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
OPERATION:
RFM-CVN1
Multi View Integration Interface with A/V Input for
Dodge Caravan with MyGig Radio
1. Carefully remove the radio trim. Use a plasc pry tool to
release the clips.
2. Note that the radio trim is held in place by 2 clips on
the sides.
3. Remove the 4 screws holding the radio. 4. Remove the radio and unplug the factory connectors.
Set the radio aside for now.
6. Determine what cameras will be installed in the
system and install the cameras per manufacturers
installaon instrucons. Run the camera cables towards
the radio. Camera power will be provided at the RFM-
CVN1 harness.
5. Mate the RFM-CVN1 T-harness between the radio and
factory radio harness.
Installaon example is on a 2018 Dodge Grand Caravan.
