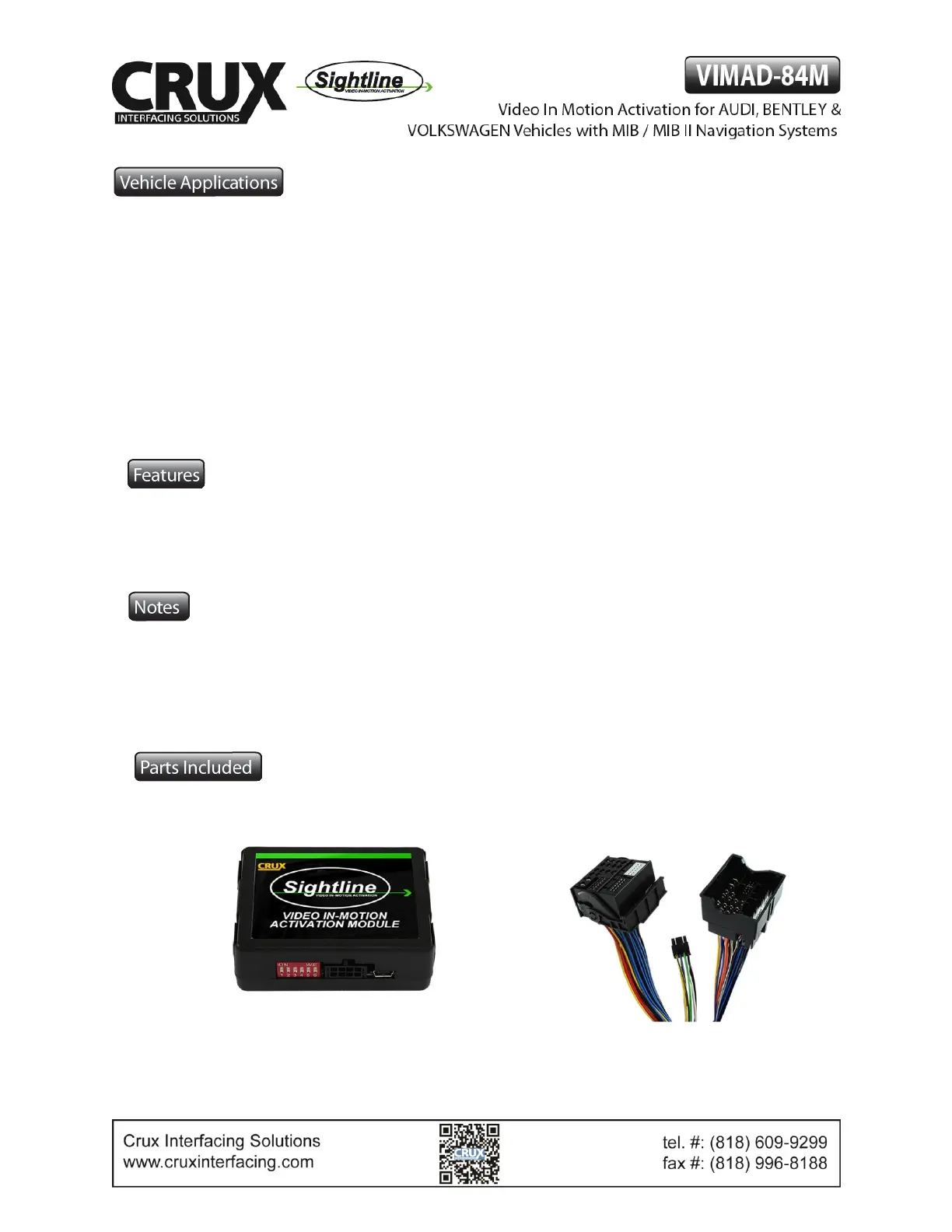

AUDI Navi Plus System 8V –
2014 – 2016 A3
2017 – 2018 A4/S4
2015 – 2018 A5/S5
2015 – 2018 A6/S6
2015 8 – 201 A7/S7
2017 – 2018 Q3
2018 Q5
2016 – 2018 Q7
2016 – 2018 R8
BENTLEY
2017 – 2018 Bentayga
VOLKSWAGEN Discover Pro System –
2016 - 2018 Golf
2016 – 2018 Passat
2016 – 2018 Tiguan
- Retains functionality of Factory-installed Navigation System for passenger access at any time.
- Plug and Play Installation.
- Compatible with Audi, Bentley and Volkswagen MIB/MIB II High Navigation systems with 8”
monitor (Audi Navi Plus & VW Discover Pro).
- On some vehicles, the navigation will not work while the video- -motion function is active. This in
can only be detected by a test drive. Please see notes on page 3.
VIM -84M Module AD
VIM -84M T-Harness AD
1 / 3
rev.121818
1. Remove the factory radio from the dashboard.
2. Remove the factory connectors from behind the factory radio.
3. Mate the T-Harness connections to the factory harness and radio. (Make sure all connectors are
properly seated into the interface and into the radio.)
4. Connect the 8-pin Molex connector from the T-harness to the VIMAD-84M module.
5. the DIP switches according to the table below. Set
6. Test the interface and re-install the radio into the dash.
Setting the DIP Switches of the VIMAD- 84M
Audi and VW
Dip 1
Dip 4
Dip 6
Video-in-motion permanent
ON
OFF
ON
Video-in-motion selective*
OFF
OFF
ON
*With DIP#1 set to OFF the included green wire is used to activate the video- -motion function. in
2 / 3
rev.121818
Note: DIP switch functions of the VIMAD- 84M
Dip 1 Activate Video In Motion –
Dip 2 no function –
Dip 3 no function –
Dip 4 no function –
Dip 5 CAN-bus termination resistor on the vehicle side –
Dip 6 CAN-bus termination resistor on the head-unit side –
NOTE: Vehicles with affected navigation performance
On some vehicles, the navigation performance is affected as long as the video- -motion function is in
activated. This can only be detected by a test drive and with DIP# set to ON. 1
If the navigation performance is affected you have to set DIP#1 to OFF. As long as the video- -motion in
function is activated, the navigation will NOT work. The green wire on the T-harness can be used to
activate the video- -motion function (Video- -motion selective) by connecting a switch (not included) in in
between the GREEN wire and +12V ACC.
Cable colour
Assignment
● Red
+12V Constant Pin 18
● Brown
Ground Pin 17
●● Orange/Violet
CAN HIGH Pin 6
●● Orange/Brown
CAN LOW Pin 12
ACTIVATING AND DEACTIVATING THE VIM FEATURE
The video- -motion can be activated and deactivated either by setting DIP# to ON (permanent VIM) in 1
or by the connecting a switch (not included) between the GREEN wire and +12V (selective VIM).
Video- -motion permanent in
With DIP#1 set to ON, the video- -motion function is activated permanently without disturbing the in
navigation performance.
Video- -motion selective in
With DIP# set to OFF, t GREEN wire is used to activate the video- -motion function. 1 he in
Connect a switch between the GREEN wire and +12V ACC.
● +12V = VIM is activated
● 0V VIM is deactivated=
3 / 3
rev.121818
