Sida 1/5

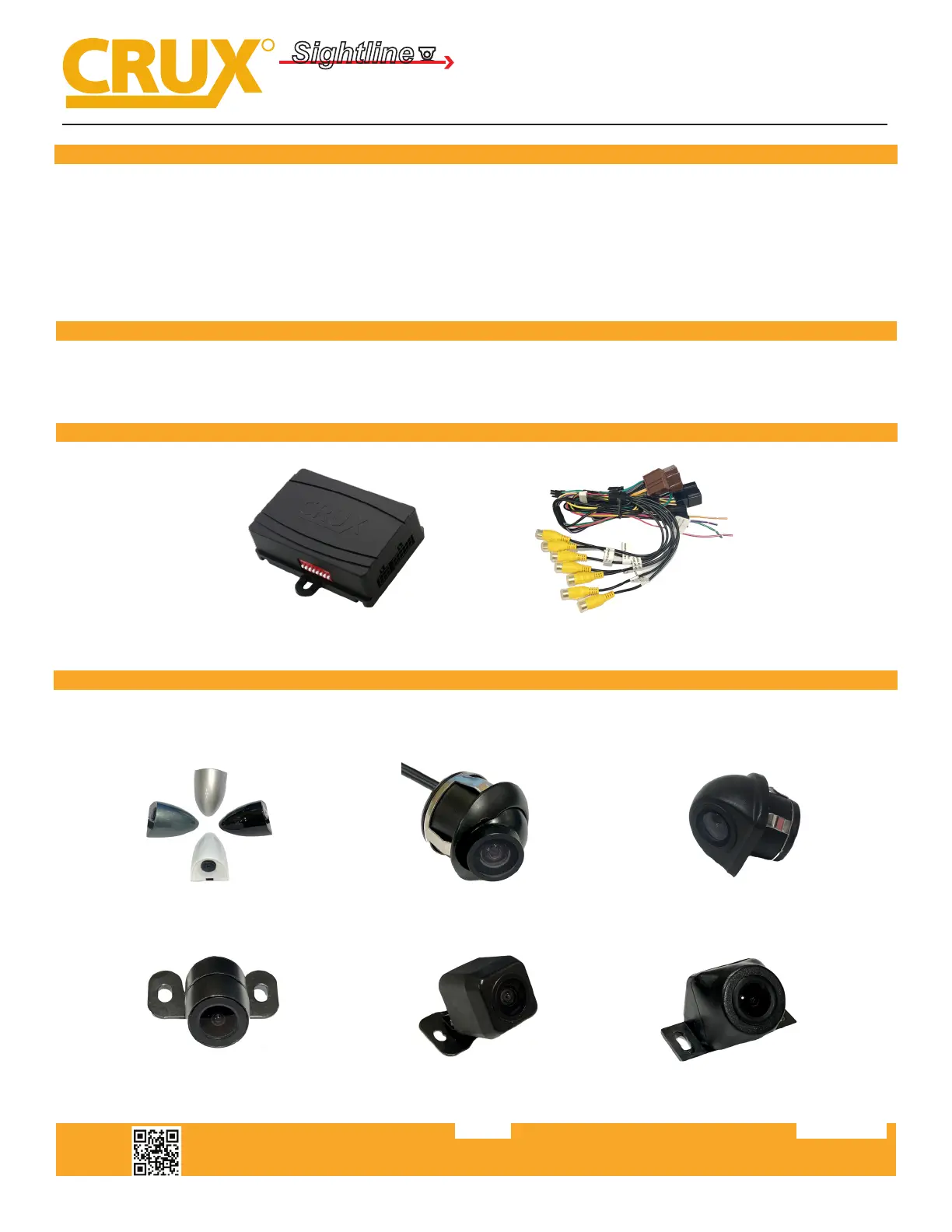

CSV-01 Fender Mount Side Camera CUB-15 Adjustable Angle Side Camera CUL-16 Push-In Rear View Camera
RFM-GM29
Multi View Integration Interface for
GM LAN 29-Bit Vehicles
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022019
1 of 5
- Adds a reverse camera input plus 6 more video inputs.
- Uses a factory steering wheel control buon to force view the video sources. (except OEM backup camera and side
cameras. See NOTE2 on page 5)
- Turn signals automacally trigger the corresponding side camera.
- Turn signal camera trigger can be turned on or o by using the SRCE buon on the SWC.
- Ability to toggle from back-up camera to cargo camera and trailer camera while in reverse gear.
PRODUCT FEATURES:
PARTS INCLUDED:
RFM-GM29 Module RFM-GM29 Harness
OPTIONAL ADD-ON CAMERAS:
Oponal add on cameras are available to complete the mul-view capability of the RFM-GM29. Cameras available
and . Plase visit sold separately www.cruxinterfacing.com for a complete list of cameras available for your vehicle.
CFF-01 Bullet Type Front Camera CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera
Silver
Black
White
Gray
NOTE:
If your vehicle is not equipped with a factory backup camera, you will need to have the radio coded at the
dealership for a backup camera.
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022019
2 of 5
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
DIP SWITCH SETTINGS:
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3Le Camera ON Le Camera OFF
4 Right Camera ON Right Camera OFF
5 Cargo Camera ON Cargo Camera OFF
6 Trailer Camera ON Trailer Camera OFF
7 No. 7 Camera ON No. 7 Camera OFF
8 Set to ON
RFM-GM29
Multi View Integration Interface for
GM LAN 29-Bit Vehicles
Front Camera Input
Right Camera Input
Left Camera Input
Cargo Camera Input
Aftermarket Backup Camera Input
Trailer Camera Input
No. 7 Camera Input
Front and Rear Camera Power Output 12V (purple/white)
Left and Right Camera Power Output 12V (green/white)
Cargo and Trailer Camera Power Output 12V (orange/white)
Any Camera Power Output 12V (red/white)
To Vehicle Harness
Connect this 6-pin plug if OEM
backup camera is being used
DIP Switches
FORCED VIEW CAMERA SEQUENCE:
Using OEM backup Camera
FRONT CARGO TRAILER CAMERA No.7
Using Aermarket backup Camera
FRONT BACKUP CARGO TRAILER CAMERA No.7
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0220193 of 5
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
1. Carefully remove the trim around
the radio using plasc pry tools.
2. Remove the 4 screws holding the
radio.
3. Unplug the Black and Brown
connectors and mate them to the RFM-
GM29 T-harness.
4. Mount the cameras (le, right,
front, rear, etc.) and run the cables to
the radio.
5. Plug the camera RCAs to the
corresponding RCA inputs on the
T-harness.
6. Connect the camera power wires to
the corresponding camera power wires
on the T-harness. Apply tape to each
connecon.
7. Prior to reinstalling the radio, test
each camera connected for funconality.
See next page for Operaon
Instrucons.
CSV-01B Fender Mount Side Camera CFF-03 Grille Mount Front Camera
RFM-GM29
Multi View Integration Interface for
GM LAN 29-Bit Vehicles
INSTALLATION INSTRUCTIONS:
