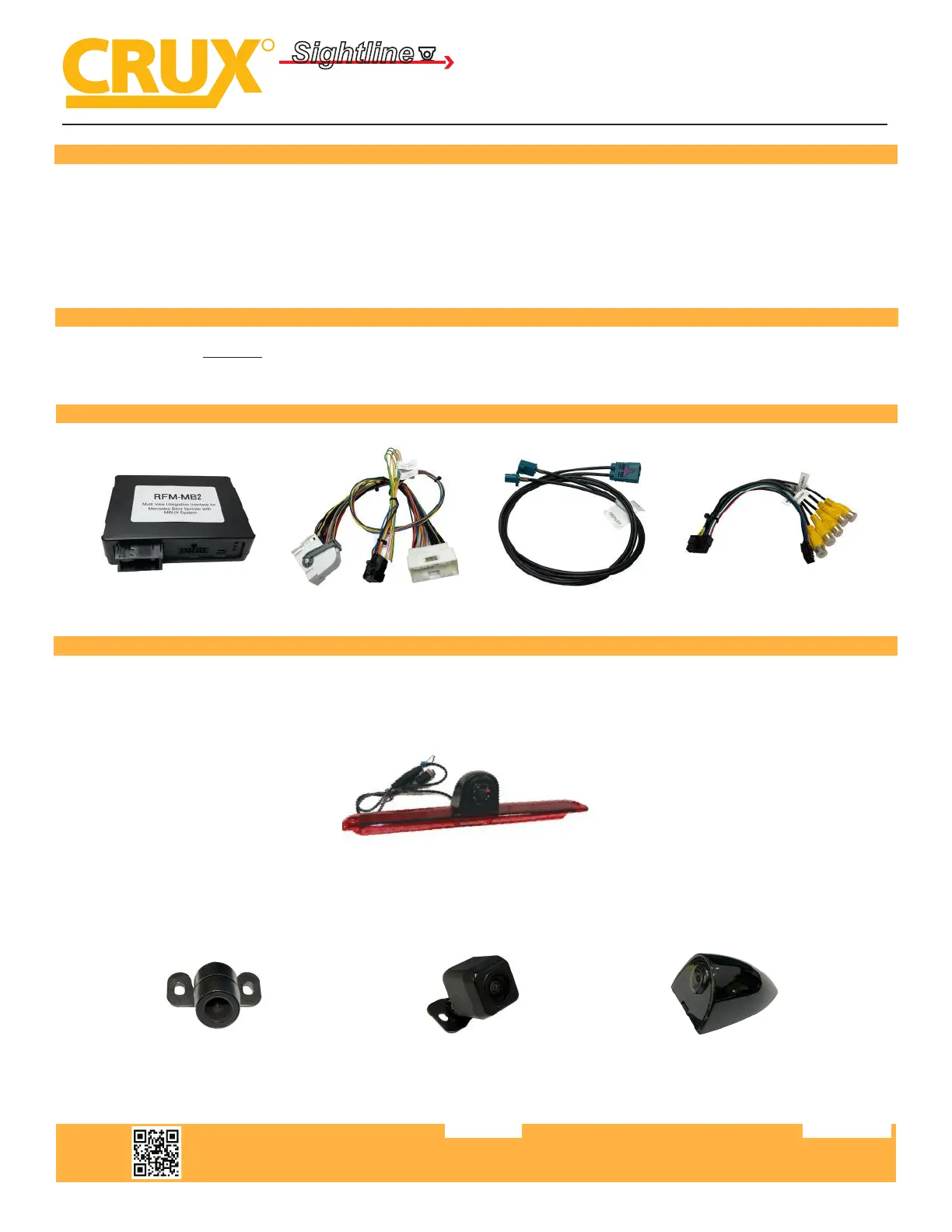

CMB-18S Third Brake Light Camera
RFM-MB2 Module RFM-MB2 Harness GMSL Video Cable Video Harness
RFM-MB2
Multi View Integration Interface for
Mercedes Benz Sprinter with MBUX System
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.04042024
1 of 7
- Adds front, right, le and rear camera inputs.
- Uses the steering wheel control buons to toggle between the camera sources.
- Turn signals automacally trigger the corresponding side camera.
- With OEM type interacve parking guide lines with calibraon funcon.
- On Screen Display set up.
PRODUCT FEATURES:
PARTS INCLUDED:
OPTIONAL ADD-ON CAMERAS:
Oponal add on cameras are available to complete the mul-view capability of the RFM-MB2. Cameras available
and sold separately include: (More cameras can be found at www.cruxinterfacing.com)
CFF-01 Bullet Type Front Camera CFF-02 Square Body Front Camera CSV-01 Fender Mount Camera
RADIO COMPATIBILITY:
7” MBUX Systems Navigaon.without
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.040420242 of 7
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
RFM-MB2
Multi View Integration Interface for
Mercedes Benz Sprinter with MBUX System
Front Camera Input
Rear Camera Input
Left Camera Input
Right Camera Input
Front Camera Analog Activation
+12V Trigger (White/Black)
Rear Camera Analog Activation
+12V Trigger (White)
Left Camera Analog Activation
+12V Trigger (Yellow/Green)
Right Camera Analog Activation
+12V Trigger (Yellow/Red)
Vehicle
Harness
+12V Output 1
(Pink)
+12V Output 2
(Green)
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.04042024
3 of 7
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
DIP SWITCH SETTINGS:
SCREEN SIZE DIP 1 DIP 2 DIP 3
7” NTG6 OFF OFF OFF
RFM-MB2
Multi View Integration Interface for
Mercedes Benz Sprinter with MBUX System
NOTE: Unplug the module power harness before seng the DIP switches.
LED INFORMATION:
Blue = (ON) Valid Input Source
Green = (ON) CAN OK
Red = (ON) Power
INSTALLATION:
The RFM-MB2 is installed at the headunit and monitor. Refer to the installaon diagram on page 2
for a visual reference on the connecons.
OSD OPERATION:
The RFM-MB2 adds front, rear, le and right camera inputs that can be congured using the built-in
OSD (On Screen Display) menu. The next steps will help you setup the cameras to seemlessly integrate
to the factory MBUX System. Use the Steering Wheel Control buons to enter and exit the OSD menu.
Press for 3 seconds
to enter or exit the
OSD menu
Use the rotary control
to navigate through the
OSD sengs. Press it to
enter the selecon.
