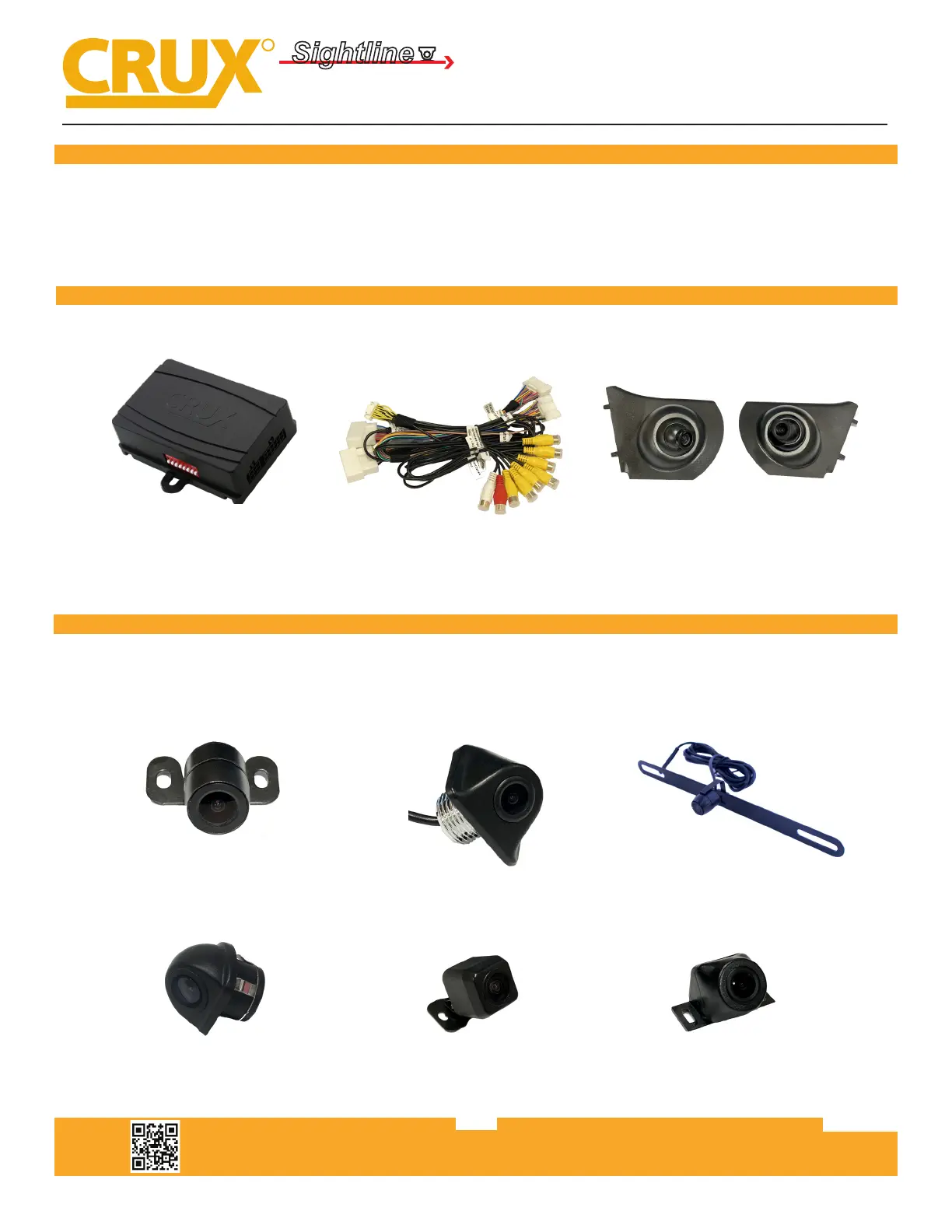

CFF-01 Bullet Type Front Camera
(Recommended)
CUL-04 Lip Mount Camera CLP-12 License Plate Mount Camera
RFM-TYH
Multi View Integration Interface with A/V Input
and Side Mirror Mounted Cameras For Toyota Highlander
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
- Adds a reverse camera input, plus 5 video inputs, and an addional audio/video input.
- Uses the steering wheel control buons to toggle between the sources.
- Turn signals automacally trigger the corresponding side camera.
- Turn signal camera trigger can be turned on or o by using the SWC buon.
PRODUCT FEATURES:
PARTS INCLUDED:
RFM-TYH Module RFM-TYH Harness CSV-TYH Highlander Side Mirror Camera
OPTIONAL ADD-ON CAMERAS:
Oponal add on cameras are available to complete the mul-view capability of the RFM-TYH. Cameras available
and sold separately include: (More cameras can be found at www.cruxinterfacing.com)
CUL-16 Lip Mount Camera CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera
Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
1 of 5 rev.91218
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
DIP SWITCH SETTINGS:
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3Le Camera ON Le Camera OFF
4 Right Camera ON Right Camera OFF
5 Cargo Camera ON Cargo Camera OFF
6 Trailer Camera ON Trailer Camera OFF
7AUX A/V ON AUX A/V OFF
8Set to OFF
RFM-TYH
Multi View Integration Interface with A/V Input
and Side Mirror Mounted Cameras For Toyota Highlander
Front Camera Input
Right Camera Input
Left Camera Input
Cargo Camera Input
Aftermarket Backup Camera Input
Trailer Camera Input
Audio/Video
Input
Front and Rear Camera Power Output +12V (purple/white)
Left and Right Camera Power Output +12V (green/white)
Cargo and Trailer Camera Power Output +12V (orange/white)
Right Turn Signal Input (grey/red)
Left Turn Signal Iput (pink/black)
To Vehicle Harness
Connect this 6-pin plug if OEM
backup camera is being used
28 PIN30 PIN
To Radio
10 PIN
Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
2 of 5 rev.91218
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
OPERATION:
RFM-TYH
Multi View Integration Interface with A/V Input
and Side Mirror Mounted Cameras For Toyota Highlander
1. Remove the felt liner inside the door pull and remove
the screw.
2. Remove the door unlock handle cover and remove the
screw.
3. Use a plasc pry bar to remove the window sail. Remove
the trim panel clips
4. Unhook the door panel by pulling it upward. Unplug the
speaker and door lock harness.
5. Use a hooked pick tool to remove the OEM side mirror
cover. Fish the camera cable through the hole.
6. Tuck in the camera cable inside the cavity and snap in
the CSV-TYH side mirror cover with camera. Adjust the
camera angle as necessary.
Side Mirror Mounted Camera Installaon:
Side mirror camera installaon below is on a 2018 Toyota Tacoma. Installaon on a 2017 Highlander is similar.
Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
3 of 5 rev.91218
