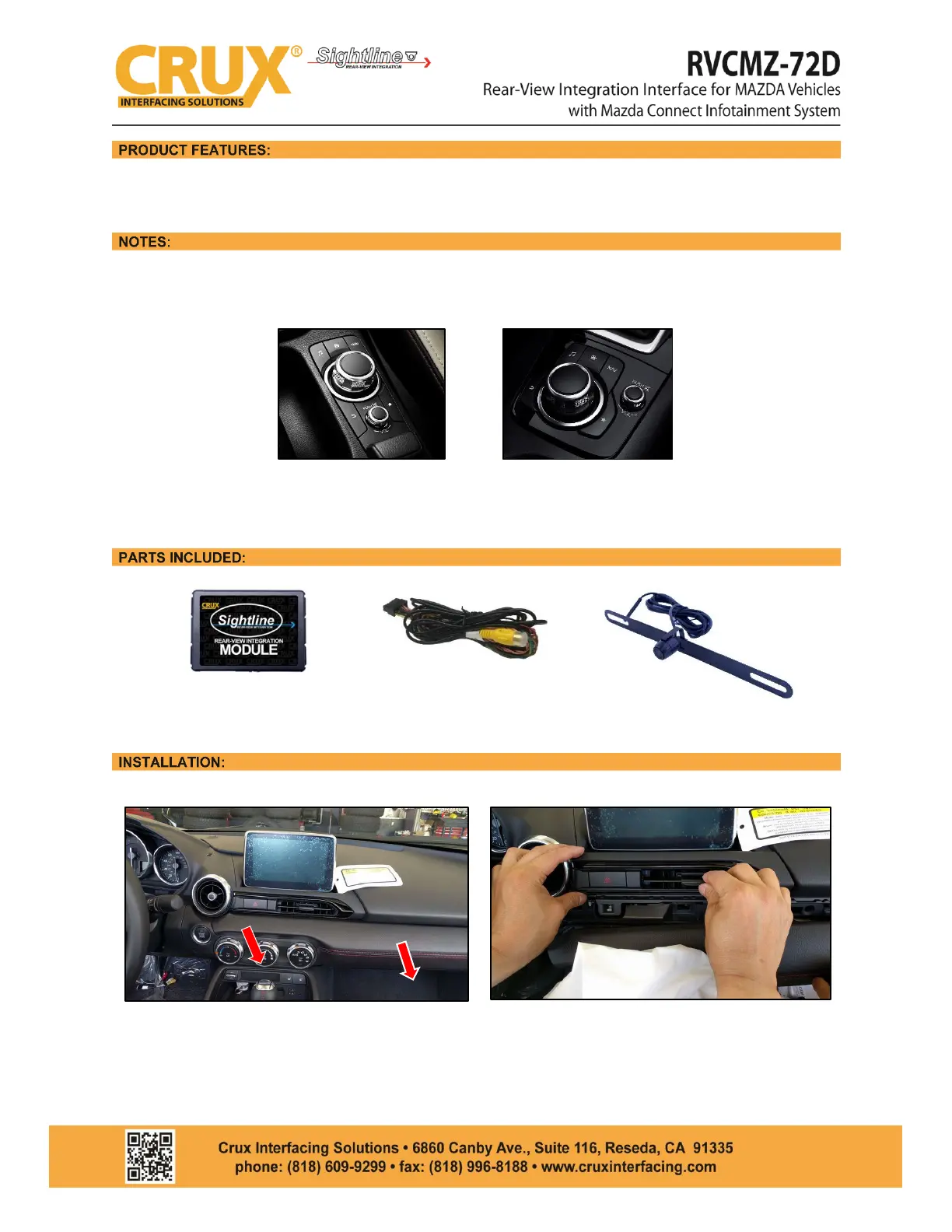

- Adds a reverse camera input on select Mazda vehicles.
- Includes universal license plate camera.a
1. Vehicle must be equipped with a touch screen Mazda Connect Infotainment system and a 7”
knob control behind the shifter.
2. The provided RCA cable with female pins must be inserted into the connector behind the OEM
screen.
RVCMZ- D MODULE 72
RVCMZ-72D HARNESS
LICENSE PLATE CAMERA
2017 Mazda MX-5 (Miata dash removal: Some pictures are of a Mazda 3 but similar in removal.)
1. Partially remove dash trim below the AC vent by
gently pulling towards you with a panel
remover. Avoid removing it completely as it will
be difficult to put back in.
2. With the dash trim out of the way, remove
the AC vent by gently pulling it out. Use a
panel removal tool if necessary.
1/4
rev.110419
3. Unplug the hazard light connector from behind
the AC vent.
4. With the AC vent removed, unscrew the
10mm bolt holding the radio screen.
5. Once the 10mm bolt is removed, the radio
screen assembly is secured with clips. Gently
pull the assembly until it pops out.
6. Unplug the 28 pin connector from behind
the radio screen.
7. Release the terminal lock by pulling it up with a
pry tool or any pointed tool. The terminal lock
does not fully remove!
8. Connect the video ouput wires by inserting
the BLUE wire (Video signal ground) into PIN
1 and the GREEN wire (Video signal +) into
PIN 15. Make sure that the pins are inserted
far enough into the connector to lock in
place. Press down the terminal lock to lock
pins in place.
2/4
9. Unplug the 18 pin connector and locate the
following wires:
RED CAN wire
WHITE CAN wire
BLACK Ground wire
YELLOW +12V
10. Tap the wires from the RVCMZ-72D module
harness to the OEM connector wires
according to the diagram below. We
recommend soldering for a secure
connection.
3/4
