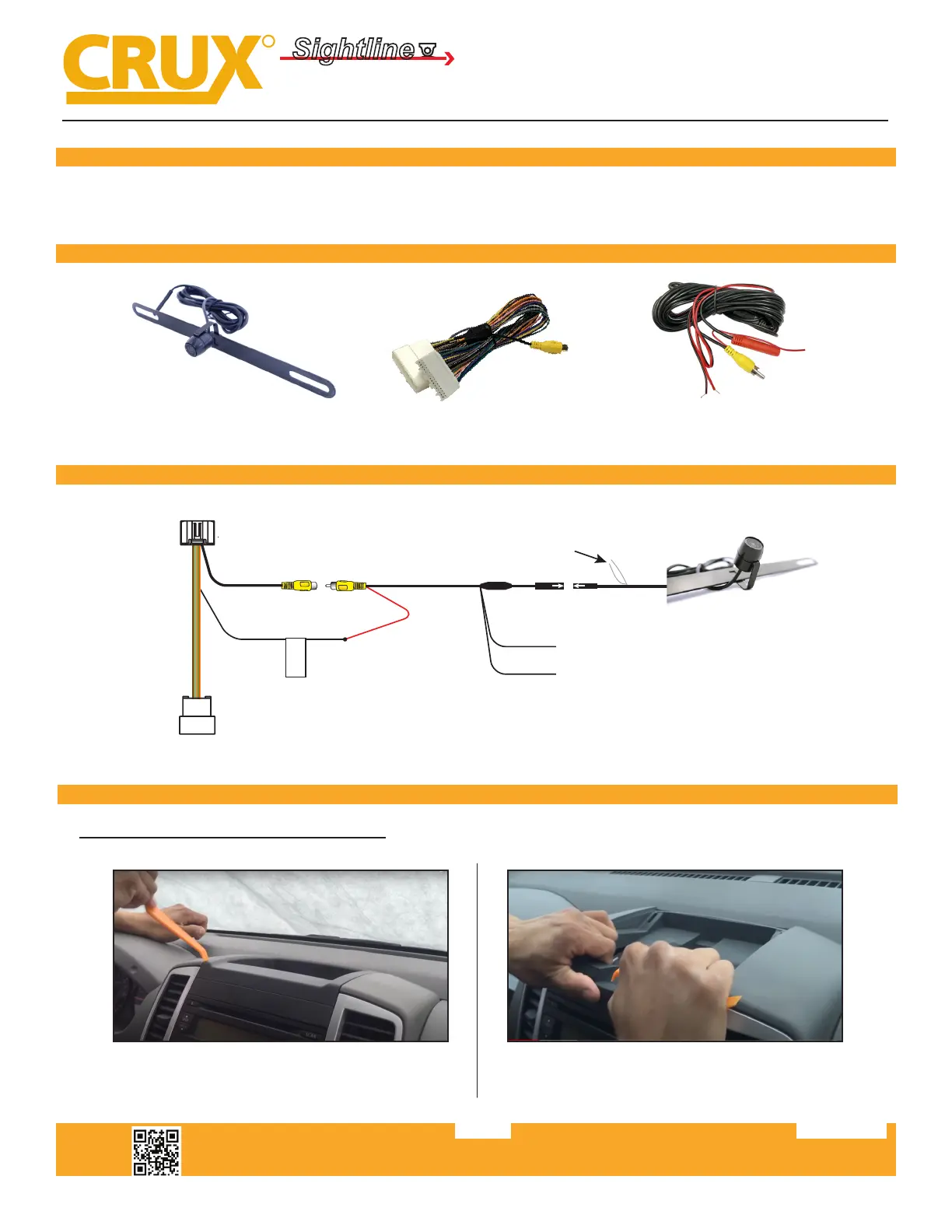

R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.081120
RVCNF-74U
Rear View Camera Integration with License Plate
Camera for Select Nissan Vehicles with 4.3” Screen
1 of 3
PRODUCT FEATURES:
PARTS INCLUDED:
- Allows the integraon of an aermarket backup camera to the factory radio.
- Plug and play wiring for easy installaon.
Universal License Plate Camera RVCNS-74U T-Harness 26’ Extension Cable
INSTALLATION DIAGRAM:
32 Pin
(Female)
32 Pin
(Male)
To Radio
To Vehicle
Harness
WHITE Wire
Parking Guide Lines
(cut to remove parking lines)
+12V Red
(tap to +12V Backup Light wire)
Ground - Black
(tap to Backup Light ground wire)
Reverse
Gear
1. Remove the dash panel above the radio using a pry
tool.
2. Carefully pull out the radio trim bezel.
INSTALLATION INSTRUCTIONS:
RVCNS-74U Installaon at the Radio:
3. Use the pry tool to pull put the corners of the radio
trim bezel.
4. Unplug the factory radio connector and plug it into
the RVCNS-74U t-harness.
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.081120
RVCNS-74U
Rear View Camera Integration with License Plate
Camera for Select Nissan Vehicles with 4.3” Screen
2 of 3
1. Remove the rear license plate. 2. Mount the license plate camera with the bar
behind the license plate. Run the extension
cable towards the radio.
3. Tap the Red wire on the extension cable to +12V on
the reverse light. Tap the black wire to ground. See
diagram on page 1.
4. Tap the Red wire on the Yellow RCA connector to
the wire on the T-harness labeled “Reverse Gear.
See diagram on page 1.
License Plate Camera Installaon:
5. Plug the male RCA from the extension cable to
the female RCA on the RVCNS-01F t-harness.
6. Test the camera for funconality before
re-installing the radio.
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.081120
RVCNS-74U
Rear View Camera Integration with License Plate
Camera for Select Nissan Vehicles with 4.3” Screen
3 of 3
VEHICLE APPLICATIONS:
2010-2015
2013-2016
2015
2013-2015
2011-2017
2011-2015
2010-2015
2013-2015
2014-2015
2014-2015
ALTIMA
FRONTIER
JUKE
LEAF
QUEST
ROGUE
SENTRA
TITAN
VERSA
VERSA NOTE
NOTE: Not compable in vehicles with Navigaon system.
