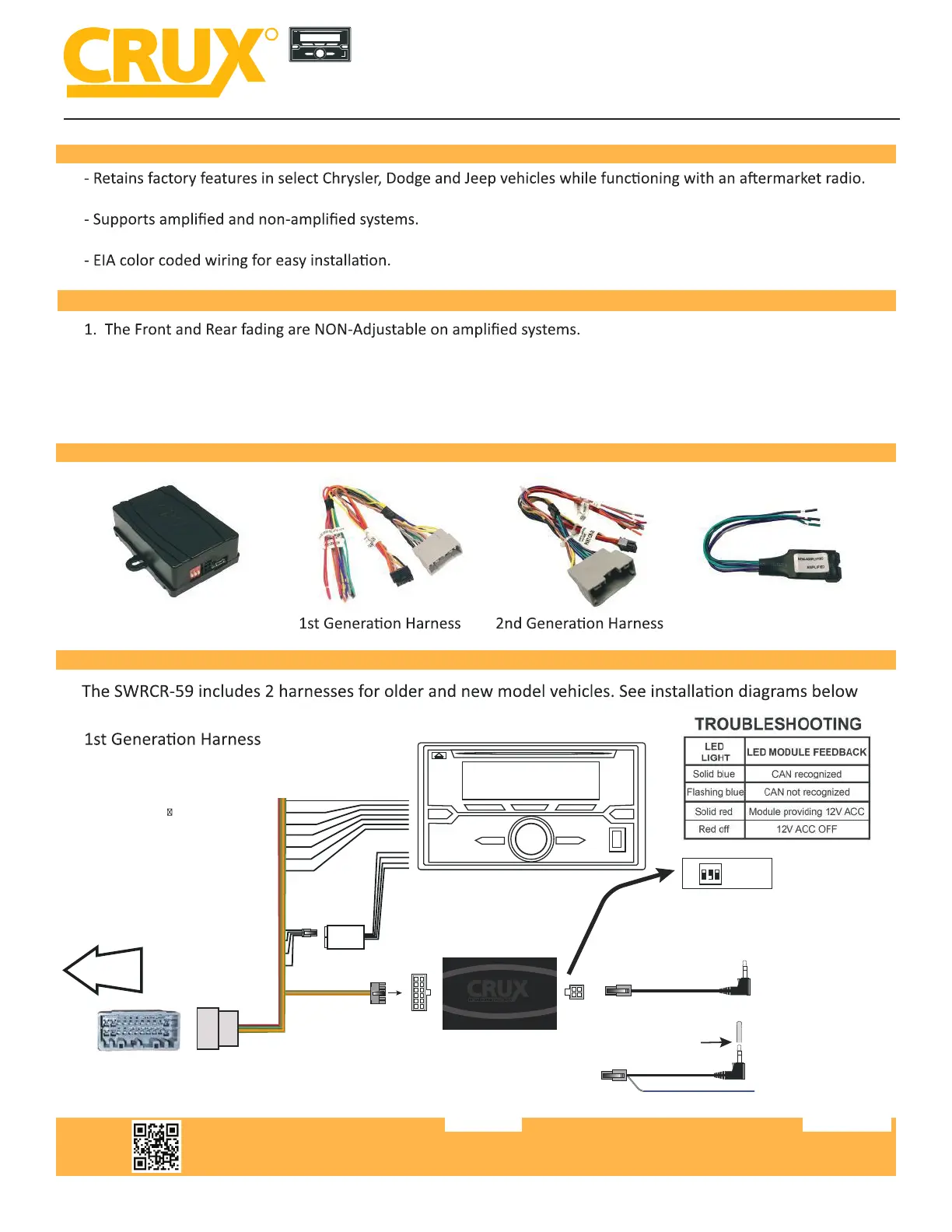

SWRCR-59
Radio Replacement with SWC Retention for
CHRYSLER, DODGE and JEEP Vehicles
1 of 3
PRODUCT FEATURES:
NOTES:
PARTS INCLUDED:
- Retains Steering Wheel Controls via built-in, pre-programmed interface.
- Provides reverse trigger for rear view camera.
2. Also supports radio replacement in vehicles with 4.3” and 8.4” color screens.
3. Does not retaind Uconnect.
SWRCR-59 MODULE Audio Filter
INSTALLATION DIAGRAM:
for each harness.
12-Pin Black
Connector
First Generation Harness
*Does not supply Reverse Trigger on Manual Transmissions. Reverse trigger wire from the
aftermarket radio and/or camera power must be connected to factory reverse light wire instead.
1 2 3
ON
4-Pin
Connector
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW Insulate with tape
if not being used
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
AFTERMARKET
RADIO
VSS (Vehicle Speed Sense) Pink
Illumina on (+) Orange
Power A enna/Amp Turn on Blue/ Whitent
Reverse Trigger* Purple/White
+12V Constant Yellow
+12V ACC Red
Ground Black
AMPLIFIED
NON AMPLIFIED
See page 2 for
speaker wire
connections
Audio
Filter
To aftermarket
radio SWC wire
or 3.5mm port
TO FACTORY
HARNESS
4. If vehicle is not equipped with Steering Wheel Controls use part# SOOCR-26
5. If you require a dash kit with SWC interface use part# DKCR-59K
RAD REPLA TIO CEMEN
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.050223
SWRCR-59
Radio Replacement with SWC Retention for
CHRYSLER, DODGE and JEEP Vehicles
2 of 3
12-Pin Black
Connector
Second Generation Harness
*Does not supply Reverse Trigger on Manual Transmissions. Reverse trigger wire from the
aftermarket radio and/or camera power must be connected to factory reverse light wire instead.
4-Pin
Connector
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW Insulate with tape
if not being used
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
1 2 3
ON
VSS (Vehicle Speed Sense) Pink
Illumina on (+) Orangeti
Power A enna/Amp Turn on Blue/ Whitent
Reverse Trigger* Purple/White
+12V Constant Yellow
+12V ACC Red
Ground Black
AMPLIFIED
NON AMPLIFIED
See below for
speaker wire
connections Audio
Filter
To aftermarket
radio SWC wire
or 3.5mm port
NON AMPLIFIED SYSTEMS AMPLIFIED SYSTEMS
Plug the 4-pin Molex connector to the NON-AMPLIFIED Plug the 4-pin Molex connector to the AMPLIFIED
SWRCR-59 Harness SWRCR-59 Harness
White
White/Black
yarG
kcalB/yarG
Green
Green/Black
Purple
Purple/Black
White
White/Black
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
White
kcalB/etihW
yarG
kcalB/yarG
Green
Green/Black
Purple
Purple/Black
Green
Green/Black
Purple
Purple/Black
Not Used
Not Used
Not Used
Not Used
Amplied vehicle troubleshooting: Bluetooth may be inaudible when installing select aftermarket radios.
Therefore hook the rear SWRCR-59 speakers to the aftermarket radio front speakers.
AFTERMARKET
RADIO
TO FACTORY
HARNESS
NOTE: Constant & Ground Pins are isolated.
RAD REPLA TIO CEMEN
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.050223
SWRCR-59
Radio Replacement with SWC Retention for
CHRYSLER, DODGE and JEEP Vehicles
3 of 3
DIP SWITCH SETTINGS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 31 2
Atoto, Dual, Fahrenheit, Jensen, Nakamichi,
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion, Stinger
Kenwood
JVC
Boss, Old Sony
New Sony (with CarPlay)
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be pro ammed.gr
4-PIN SWC CABLE
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
CHRYSLER
2011-2014 200
2005-2010 300
2007-2009 Aspen
2006-2010 PT Cruiser
2007-2010 Sebring
2008-2016 Town & Country
DODGE
2007-2014 Avenger
2006-2012 Caliber
2008-2014 Challenger
2006-2010 Charger
2013 Charger
2006-2011 Dakota
2004-2013 Durango
2009-2016 Grand Caravan
2009-2010 Journey
2013 Journey
2005-2008 Magnum
2007-2011 Nitro
2006-2012 RAM
JEEP
2006-2010 Commander
2007-2016 Compass
2005-2013 Grand Cherokee
2008-2012 Liberty
2007-2017 Patriot
2007-2017 Wrangler
2018 Wrangler (JK only)
MITSUBISHI
2006-2009 Raider
VOLKSWAGEN
2009-2013 Routan
VEHICLE APPLICATIONS:
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
connect the SWC wires as follows:
Note that there are some radios that only have
SWC1 and SWC2, in this case “shield” does not
need to be connected.
