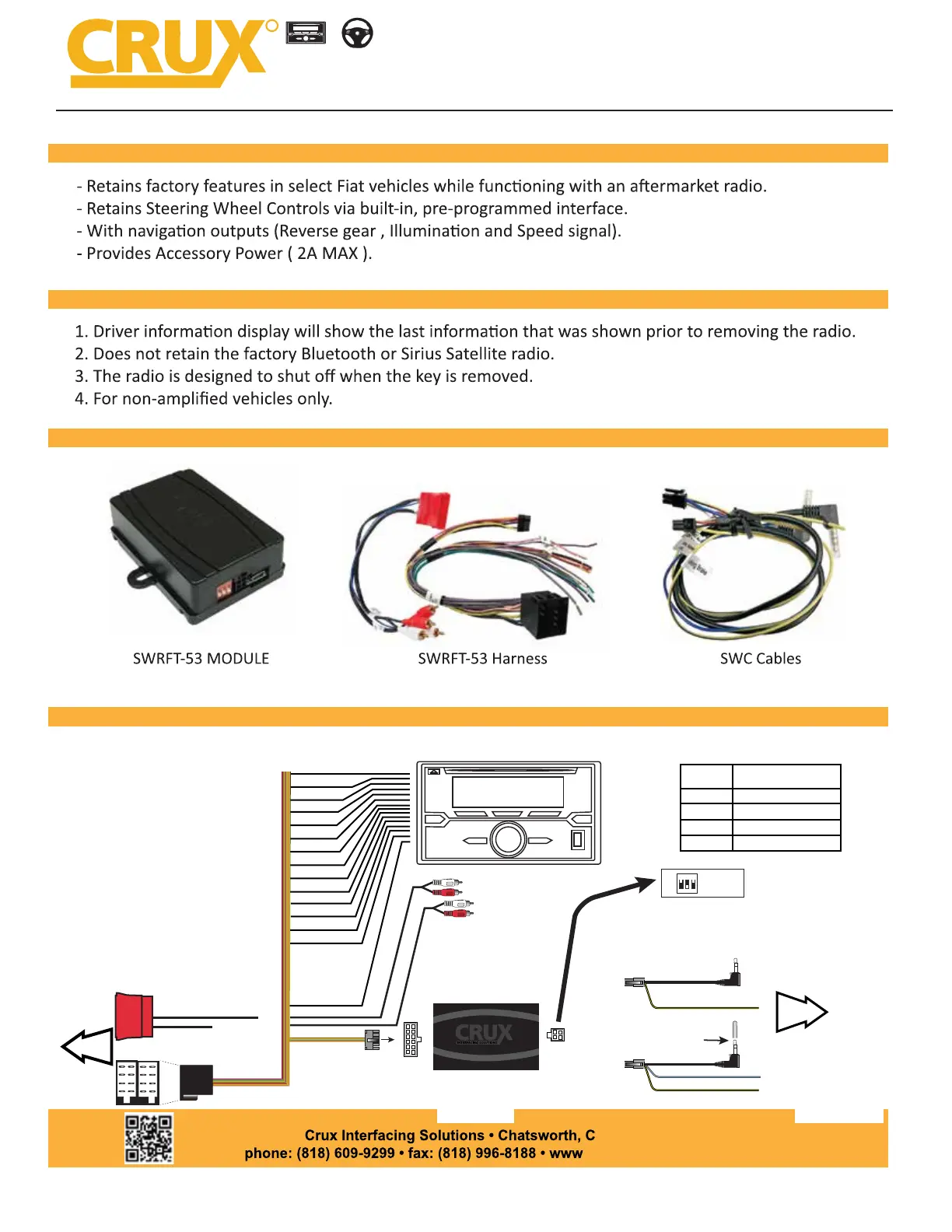

Sida 1/2
RAD IO R EP LAC EME NT
SWC R ETE NTI ON
+
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072322
SWRFT-53
Radio Replacement with Steering Wheel Retention
for select Fiat Vehicles
1 of 2
PRODUCT FEATURES:
PARTS INCLUDED:
- Retains factory features in select Fiat vehicles while funconing with an aermarket radio.
- Retains Steering Wheel Controls via built-in, pre-programmed interface.
- With navigaon outputs (Reverse gear , Illuminaon and Speed signal).
- Provides Accessory Power ( 2A MAX ).
SWRFT-53 MODULE SWRFT-53 Harness SWC Cables
INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
illumination (+) Orange
Reverse Gear Red/White
Vehicle Speed Sense Purple/White
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
TO FACTORY
HARNESS
12-Pin Black
Connector
1 2 3
ON
4-Pin
Connector
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
To aftermarket
Radio SWC Port
For Kenwood & JVC
NOTES:
1. Driver informaon display will show the last informaon that was shown prior to removing the radio.
2. Does not retain the factory Bluetooth or Sirius Satellite radio.
3. The radio is designed to shut o when the key is removed.
4. For non-amplied vehicles only.
RADIO REPLACEMENT
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072322
SWRFT-53
Radio Replacement with Steering Wheel Retention
for select Fiat Vehicles
2 of 2
FIAT
2012 – 2015 500
2012 – 2015 500c
2013 – 2015 500e
2012 – 2015 500 Turbo
2012 – 2015 500 Abarth
VEHICLE APPLICATIONS:
DIP SWITCH SETTINGS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen
Pioneer, Power Acoustik, Soundstream
Blaupunkt, Most o-brand Radio
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most o-brand radios,
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
4-PIN SWC CABLE
Use the proper 3.5MM to 4-Pin SWC cable for the aermarket radio you are using. Plug it into the
aermarket radio’s SWC port or connect the Blue/Yellow wire to Kenwood and JVC radios.
OPTION A is used for ALPINE, CLARION, JVC, and KENWOOD units (Blue/Yellow wire is aached)
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,
PIONEER, SONY, SOUNDSTREAM and Most O-Brand Radios.
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
For aermarket radios that have wires for SWC connecons, cut o the 3.5mm plug on the Crux SWC Cable (opon B) and
connect the SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
