Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.121123
SWRN S-63M
Radio Replacement with Steering Wheel Control Retention
1 of 3
RAD IO EPL A NT R CE ME
SW RET TIO NC EN
+
R
INTERFACING SOLUTIONS
- Pre-programmed to retain factory Medium Speed CAN-Data Bus Steering Wheel Controls.
- Includes antenna adapter.
PRODUCT FEATURES:
PARTS INCLUDED:
SWRNS-63M Harness Antenna
Adapter

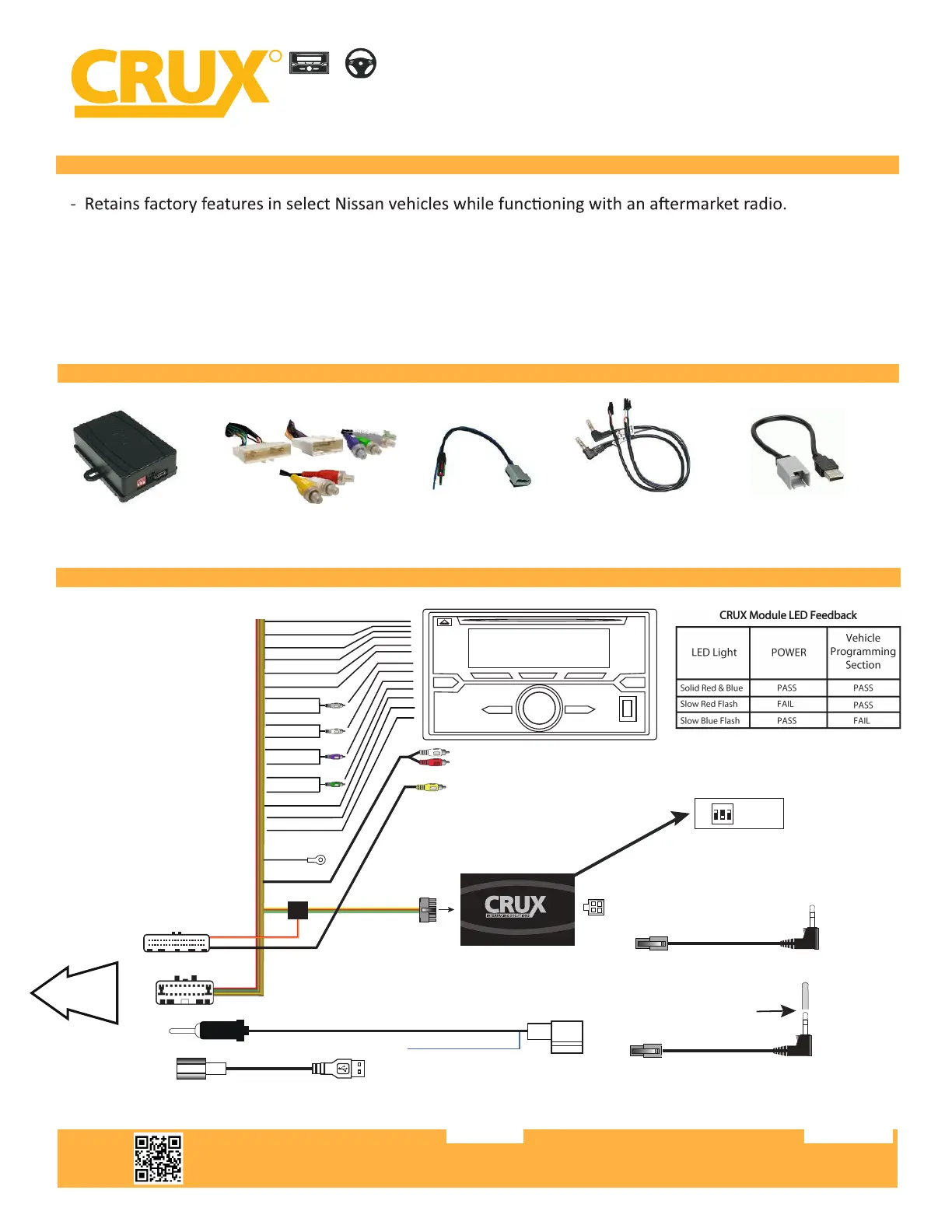

INSTALLATION DIAGRAM FOR AMPLIFIED VEHICLES:
SWRNS-63M MODULE SWC Cables USB Retention Cable
- Retains factory phone buttons.
- Retains factory USB input.
- Retains factory camera (not 360 panoramic camera).
- Provides outputs for Reverse & parking brake.
- Retains factory auxilary input
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination (+) Orange
Illumination (-) Orange/ White
Amp Turn On Blue/ White
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
VSS (Vehicle Speed Signal) Brown/White
Black
Violet/WhiteReverse Gear Output
Parking Brake Output Yellow/Black
(with Ring Terminal)
TO FACTORY
HARNESS
12-Pin Black
Connector
BLUE/ Power Antenna
4-Pin
Connector
40 PIN
20 PIN
Yellow RCA
(Retain OE Camera)
Rear View Camera Signal
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW
Insulate with tape
if not being used
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
To aftermarket
radio SWC wire
or 3.5mm port
1 2 3
ON
12v to 6v
Converter
Audio Input Red/White RCA
(Retains Factory AUX Input)
• For Amplied Systems Please Do Not Cut RCA to get better audio quality
** Please see page 2 for note
USB-Min2
USB Retention Adaptor (included in kit)
Chassis Ground
for Select 2015 -2016 NISSAN MURANO Vehicles w/ Navigation
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.121123
Radio Replacement with Steering Wheel Control Retention
for Select 2015 -2016 NISSAN MURANO Vehicles w/ Navigation
2 of 3
RAD IO EPL A NT R CE ME
SW RET TIO NC EN
+
R
INTERFACING SOLUTIONS
INSTALLATION DIAGRAM FOR NON-AMPLIFIED VEHICLES:
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination (+) Orange
Illumination (-) Orange/White
Amp Turn On Blue/ White
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
VSS (Vehicle Speed Signal) Brown/White
Chassis Ground Black
Reverse Gear Output Violet/White
Parking Brake Output Yellow/Black
(with Ring Terminal)
TO FACTORY
HARNESS
12-Pin Black
Connector
BLUE/ Power Antenna
4-Pin
Connector
40 PIN
20 PIN
Yellow RCA
(Retain OE Camera)
Rear View Camera Signal
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW
Insulate with tape
if not being used
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
To aftermarket
radio SWC wire
or 3.5mm port
1 2 3
ON
USB-Min2
USB Retention Adaptor (included in kit)
12v to 6v
Converter
Audio Input Red/White RCA
(Retains Factory AUX Input)
*
*
*
*
*
*
*
*
Green RCA (Left Rear)
Gray RCA (Right front)
White RCA (Left front)
Violet RCA (Right Rear)
Right Front (+)
Right Front (-)
Left Front (+)
Left Front (-)
Right Rear (+)
Right Rear (-)
Left Rear (+)
Left Rear (-)
GRAY
GRAY/BLACK
WHITE
WHITE/BLACK
VIOLET
VIOLET/BLACK
GREEN
GREEN/BLACK
*For Non-Amplied systems please cut RCA , and mate colored wires
to the appropriate aftermarket radio speaker wires
SWRN S-63M
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.121123
Radio Replacement with Steering Wheel Control Retention
for Select 2015 -2016 NISSAN MURANO Vehicles w/ Navigation
3 of 3
RAD IO EPL A NT R CE ME
SW RET TIO NC EN
+
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
VEHICLE APPLICATIONS:
NISSAN
2015 - 2016 Murano Base radio w/ Nav w/o Bose
NOTE: For base radio w/ display & Non-Nav use CRUX Part #SWRNS-63S
2015 - 2016 Murano w/ Bose w/ Nav
AFTERMARKET RADIO DIP SWI TCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen, Nakamichi,
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion, Stinger
Kenwood
JVC
Boss, Old Sony
New Sony (with CarPlay)
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
4-PIN SWC CABLE
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
NOTE: Some SWC functions might not be retained for the following radio series:
Planet Audio P9900CPA, Jensen CAR 710, Atoto F7, and similar radios of these brands.
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
connect the SWC wires as follows:
Note that there are some radios that only have
SWC1 and SWC2, in this case “shield” does not
need to be connected.
NISSAN INFOTAINMENT WITH MAP AND CAMERA
SWRN S-63M
