INSTRUCTION MANUAL
CAR STEREO CD/CDR/CDRW/MP3/WMA PLAYER
WITH PLL FM STEREO RADIO
RDS
USB / SD / MMC CARD INPUT
FLIP DOWN/DETACHABLE FRONT PANEL
CAD-490
PTY
AFTA
63 54
RELEASE
21
DISP
A/PS
PWR
BAND
TUNE/TRACK
SCN PAU INT RPT RDM
EJ
MD
V
O
L
P
U
S
H
S
E
L
E
C
T
E1

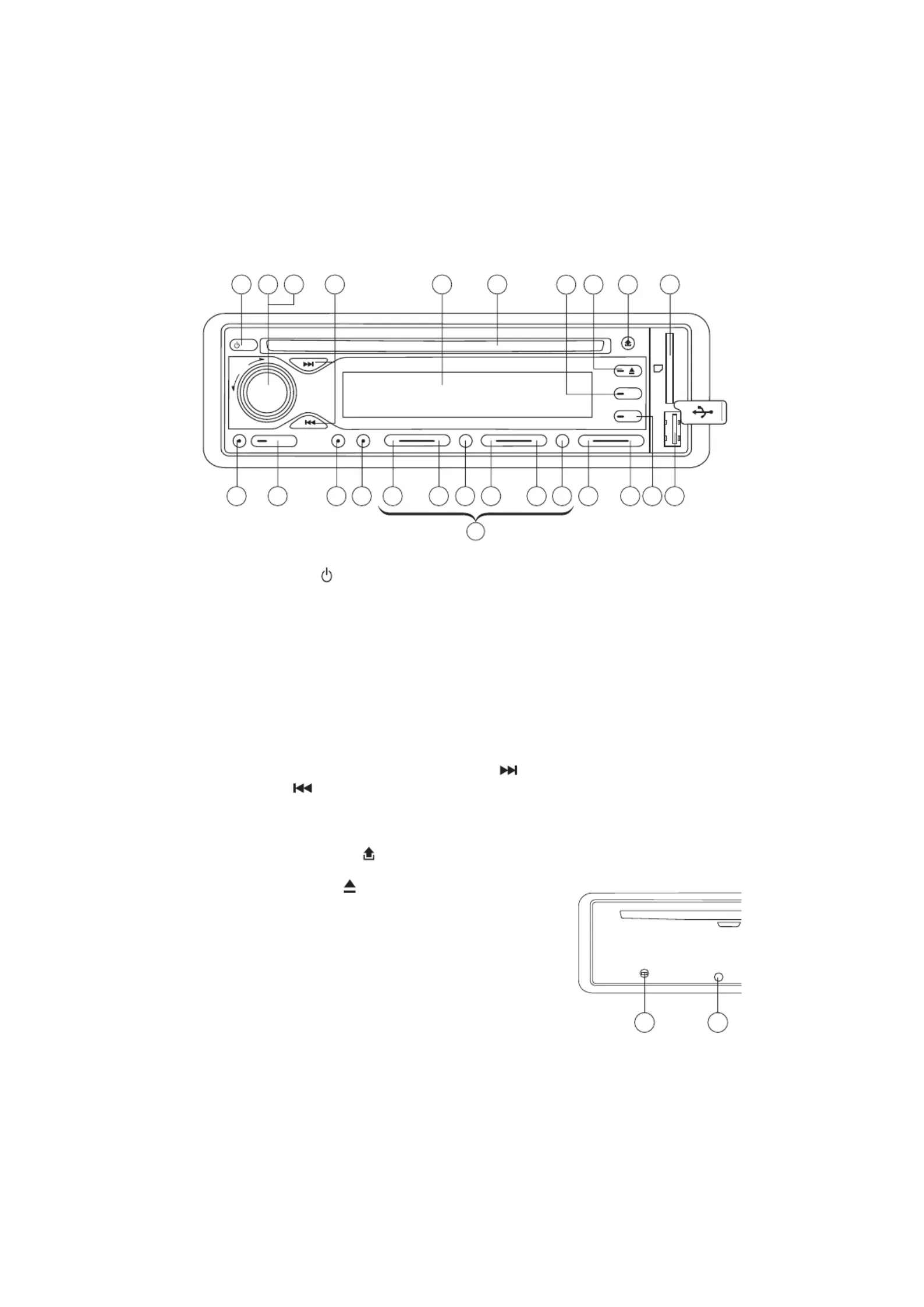

LOCATION OF PARTS AND CONTROLS
1. POWER ON/OFF ( )
2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK
DPI/RETUNE/AUDIO DSP/LOUDNESS/ESP/CD MULTI/BEEP/SEEK/STEREO/LOCAL
3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER / TA SEEK/MASK DPI/
RETUNE/AUDIO DSP/LOUDNESS/ESP/CD MULTI/BEEP/SEEK/STEREO/LOCAL
4. PRESET STATIONS (1,2,3,4,5,6)
5. ‘AF’ function (ALTERNATIVE FREQUENCIES)
6. ‘TA’ function (TRAFFIC ANNOUNCEMENT)
7. ‘PTY’ function (PROGRAM TYPE)
8. DISPLAY BUTTON (DISP)
9. MODE BUTTON (MD)
10. BAND BUTTON (BAND)
11. AUTOMATIC OR MANUAL TUNING (FREQ UP OR
FREQ DOWN )/ CD TRACK/SEARCH BUTTON
12. AUTO SEEK SEARCH TUNING (A/PS)
13. ‘SCAN’ AUTOMATIC TUNING CONTROL (SCN)
14. LCD DISPLAY
15. OPEN PANEL BUTTON ( )
16. CD SLOT
17. CD EJECT BUTTON ( )
18. PAUSE BUTTON
19. INTRO BUTTON (Preview all Tracks)
20. REPEAT BUTTON
21. RANDOM BUTTON
22, 23. + 10 TRACK SEARCH DOWN/UP
24. USB PORT
25. MULTI-MEDIA CARD (MMC) / SD CARD SLOT
26. RESET BUTTON
27. POWER INDICATOR LED
PTY
AFTA
63 54
RELEASE
21
DISP
A/PS
PWR
BAND
TUNE/TRACK
SCN PAU INT RPT RDM
EJ
MD
V
O
L
P
U
S
H
S
E
L
E
C
T
4(1-6)
15179 25161 2 3 1411
245 762322212019181310812
26 27
RESET
E2
53mm
182mm
3
2
182mm
53mm
1
2
134

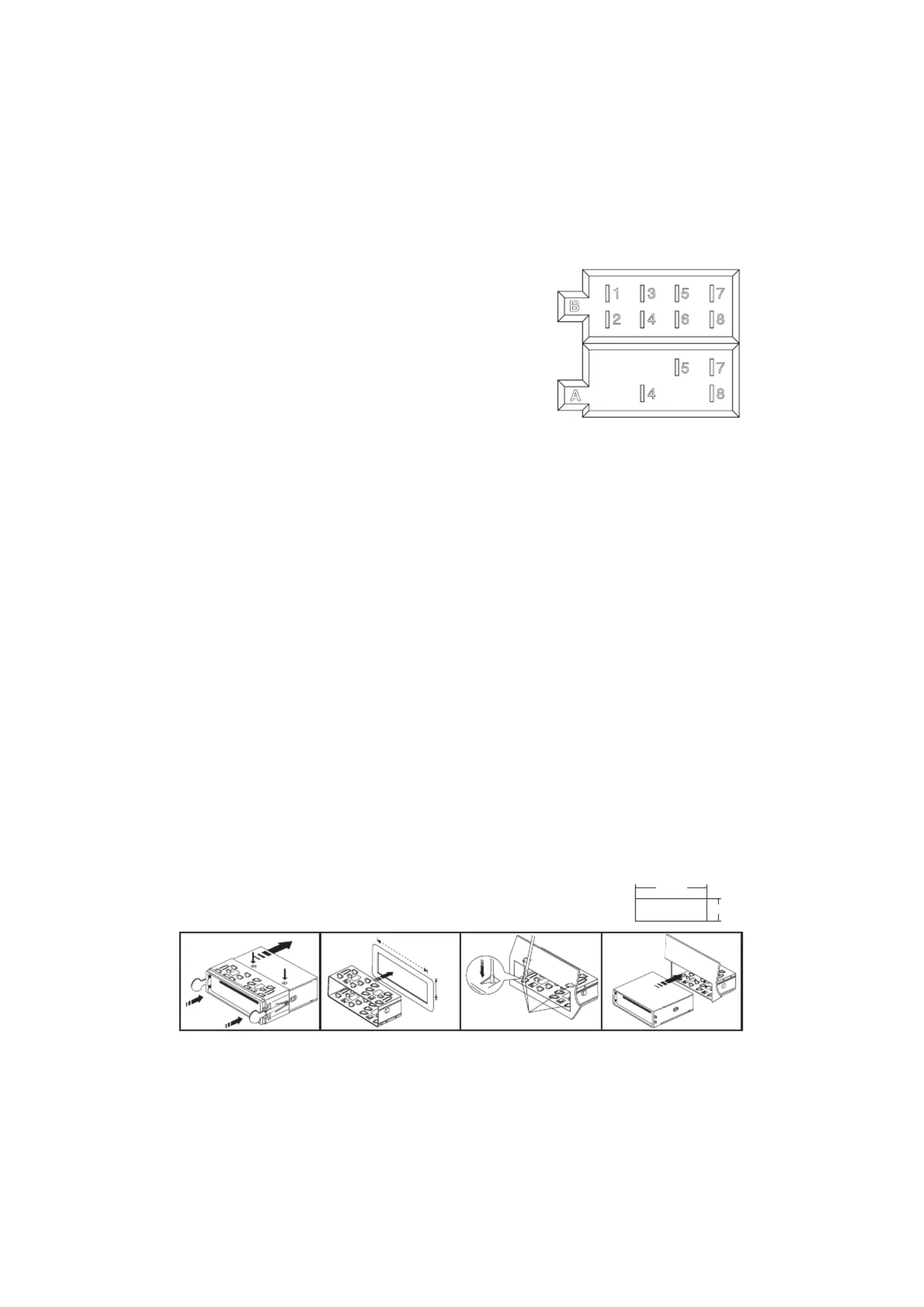

INSTALLATION
PRECAUTIONS
• Choose the mounting location carefully so that the unit will not interfere with the normal
driving functions of the driver.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct
sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive
vibration.
• Use only the supplied mounting hardware for a safe and secure installation.
• Be sure to remove the front panel before installing the unit.
NOTE : Inclination angle for car radio installation must not
exceed 30˚ otherwise the front panel will not open.
Note: Keep the release key in the safe place as you may need it in future to remove the unit
from the car.
Bend these
claws, if necessay
release screw and
bracket
ISO CONNECTOR
RCA Jack Line Out: RCA Jack Line In:
: Red (right) : Red (right)
: White (left) : White (left)
CONNECTOR A
1.
2.
3.
4. MEMORY +12V
5. AUTO ANTENNA OUTPUT
6.
7. +12V (TO IGNITION KEY)
8. GROUND
Note: (connector A no. 7) must be connected by car ignition key in order to avoid that car
battery becomes weak when the car will be not used for long period.
CONNECTOR B
1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)
Maintenance
FUSE REPLACEMENT
If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the
replacement, there may be an internal malfunction. In this case, consult your nearest repairing center.
Warning
Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause serious dam-
age.
B1 3 5 7
2 4 6 8
5 7
4 8
A
