INSTRUCTION MANUAL
Car Stereo
MP3/WMA/MPEG4 Player
with PLL FM Stereo Radio
Radio Data System
3 Inch TFT-LCD Display
USB / SD/MMC Card Input
Front AUX IN
Touch Screen Control
Flip Down/Detachable Front Panel
CUT-301

EN-2
2
1
INSTALLATION
PRECAUTIONS
• Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the
driver.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from
the heater, or where it would be subject to dust, dirt or excessive vibration.
• Use only the supplied mounting hardware for a safe and secure installation.
• Be sure to remove the front panel before installing the unit.
NOTE : Inclination angle for car radio installation must not exceed 30˚ otherwise the front panel will not open.
NOTE: Keep the release key in the safe place as you may need it in future to remove the unit from the car.
Detaching and attaching the front panel
The front panel of this unit can be detached in order to prevent the unit from being stolen.

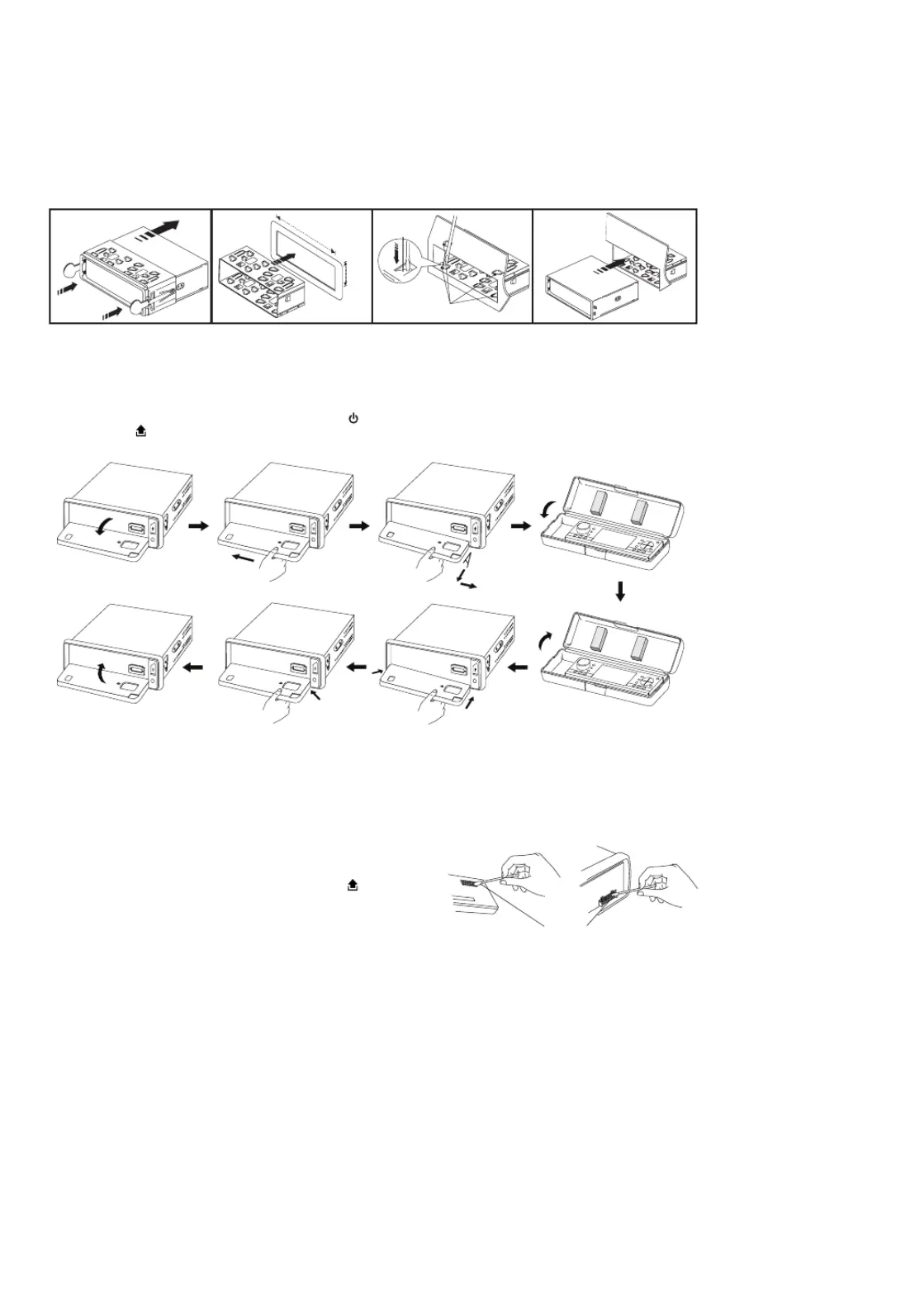

FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL
Before detaching the front panel, be sure to press the button (1) OFF rst.
Then press the button, let the Front Panel arrive in horizontal position and detach the panel by pulling it towards you
as illustrated.
Notes:
• Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing it lightly
against the unit.
• When you carry the front panel with you, put it in the supplied front panel case.
• Do not press hard or give excessive pressure to the display window of the front panel when attaching it to the
unit.
CLEANING THE CONNECTOR
The unit may not function properly if the connectors between the unit
and the front panel are contaminated with dirt. In order to prevent this
from happening, detach the front panel by pressing the button and
clean the connector from time to time.
Clean the connector with a cotton swab together with contact cleaner
as illustrated. Be sure to clean them carefully pin by pin and make
sure not to damage the connecting points.
2
182 mm
53mm
34
TAP
1
1
2
Bend these
claws, if necessay
<10°
Cotton Swab
Rear of
front panel
Main unit

EN-3
To Hand brake switch
10
7
1
2
3
4
4
4
5
5
6
6
8
9

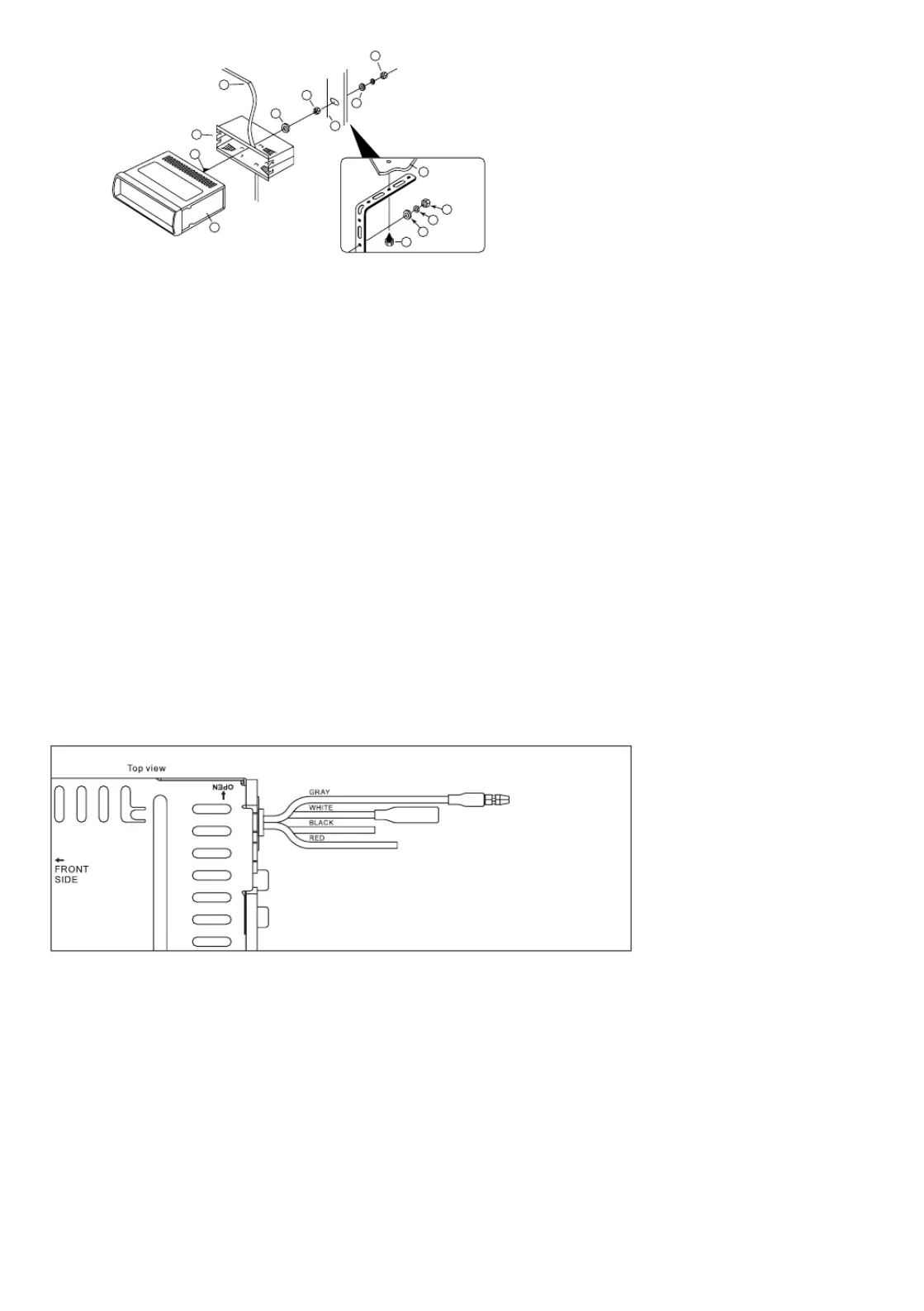

1. UNIT
2. RELEASE CASE
3. DASH BOARD
4. HEX NUT
5. LOCK WASHER
6. PLAIN WASHER
7. CAR BODY
8. REAR SUPPORT STRAP
9. TAPPING SCREW
10. M5 X 15 HEX BOLT
Dashboard
WIRE CONNECTION
IN / OUT CONNECTOR
Audio Out: White (L) Red (R)
Connect this wire to rear seat A/V monitor system
Line Out (Front): White (L) Red (R)
Line Out (Rear): White (L) Red (R)
CONTROL WIRE
Parking (Gray) : Connect this wire to car hand brake system
Tel mute (Black) : Connect to mobile phone unit
When receiving calls, audio sound will be muted.
Rear camera (Red) : Connect to back rear camera
During back gear condition, this wire should be connected to high voltage.
DRIVING WITHOUT VIDEO DISPLAY
Follow the installation below so when the car is in motion, no video will come out from the LCD screen.
Only sound can be heard from speaker.
Note:
- Only sound can be heard when car is in motion.
- Refer and follow your country’s law regarding driving with video.
Caution:
- Do not attempt to install it by yourself if the instruction is not clear to you. Consult you dealer concerning
the installation procedures.
TO SUPPORT THE UNIT
2 Video Outputs: Yellow
Connect to external A/V system to display
Video In: Yellow
Connect to external Video equipment
Rear camera In: Blue
Connect to rear camera output
Steps:
1. Connect the gray wire to the hand brake system.
2. Check your hand brake switch and make sure it is
connected to car body chassis and properly grounded.
