Denver CDB-440BT Bruksanvisning
Läs nedan 📖 manual på svenska för Denver CDB-440BT (21 sidor) i kategorin bilradio. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/21
1

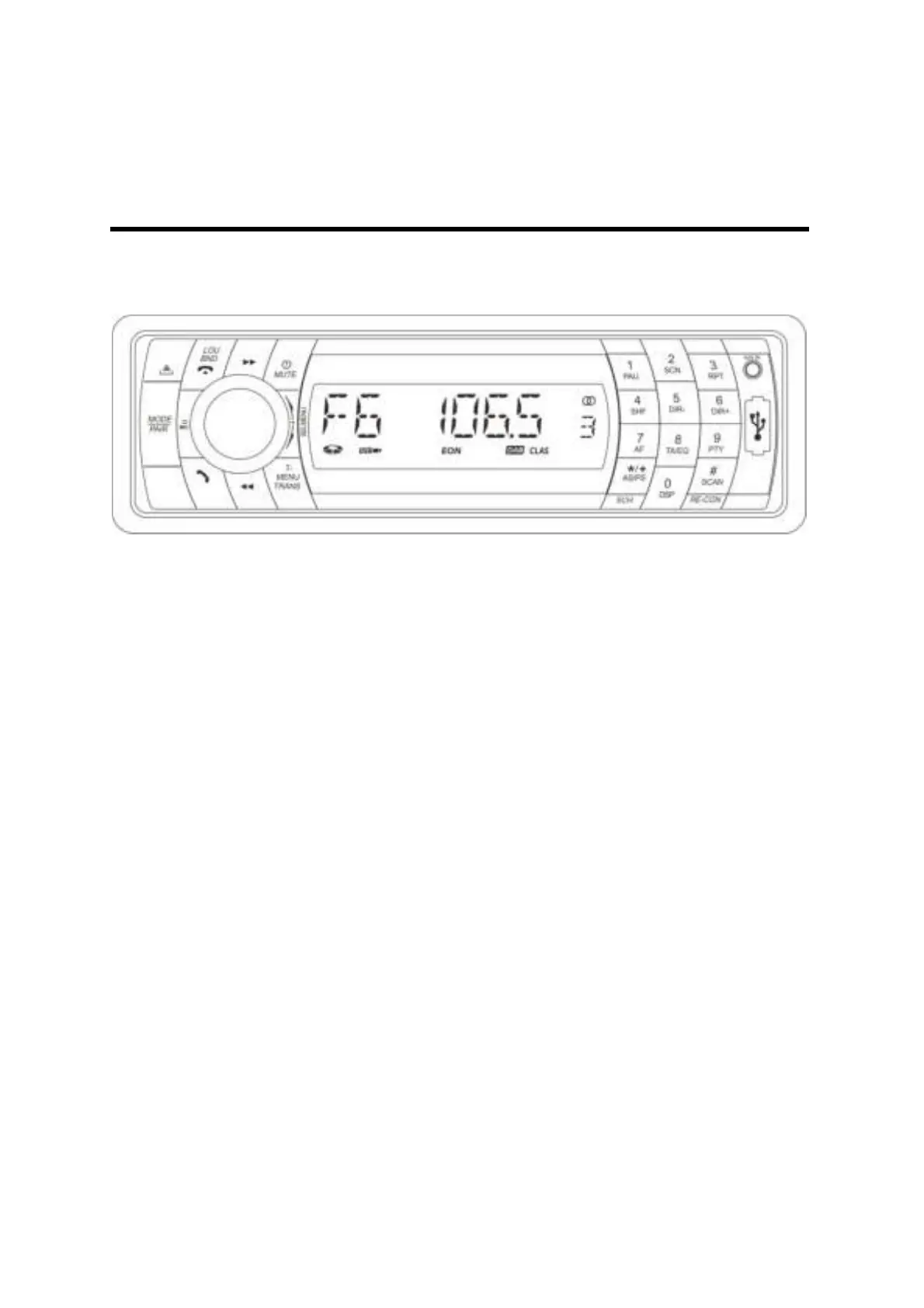

OWNER’S MANUAL
Mobile Audio System
PLL Synthesizer Stereo Radio
Automatic Memory Storing
USB&SD Card Interface
Detachable Front Panel
Auxiliary Input Function
Bluetooth Hands-free function & A2DP (Advanced Audio
Distribution Profile) Stereo Audio Transmission
DAB function
2
CONTENTS
Installation ........................................... 3
DIN Front-Mount (Method A) ................. 3
Installing the unit ............................... 3
Removing the unit ............................. 4
DIN Rear-Mount (Method B) ................. 5
Using the detachable front panel ...... 6
Wiring Connection .............................. 7
ISO connection ..................................... 7
Location of keys ................................. 8
Basic operation ................................... 9
Switching on/off the unit ........................ 9
Faceplate release ................................. 9
Sound adjustment ................................. 9
Loudness .............................................. 9
Display .................................................. 9
Equalization .......................................... 9
Reset function ....................................... 9
Mode selection ...................................... 9
System setting ...................................... 9
Auxiliary input ....................................... 10
DAB operation ..................................... 10
DAB antenna installation.................... 10
Radio operation .................................. 10
Selecting the frequency band ............ 10
Selecting a station ............................. 10
Automatic memory storing & program
scanning ............................................ 11
Scan .................................................. 11
Station storing ................................... 11
RDS ...................................................... 11
Setting RDS mode............................. 11
Using PTY to select program............. 11
TA SEEK/ALARM .............................. 11
PI SOUND/MUTE .............................. 12
RETURN LONG/SHORY .................. 12
MASK DIP/ALL .................................... 12
EONTA DX/LO ................................... 12
TA-VOLUME ...................................... 13
REG OFF/ON .................................... 13
Listening to Traffic Announcement .... 13
USB play operation ............................. 13
Switching to USB mode ..................... 13
Selecting tracks ................................. 13
Pausing playing ................................. 13
Previewing all tracks .......................... 14
Repeating the same track ................. 14
Playing all tracks in random............... 14
Selecting directory up/down .............. 14
Selecting tracks ................................. 14
Display ID3 information………………15
SD operation.. ...................................... 16
Bluetooth operation ............................ 16
Preparing for operation ...................... 16
Pairing ............................................... 16
Connect ............................................. 17
T-menu .............................................. 17
Making an outgoing call ..................... 18
Transfer the call between mobile phone
and the unit........................................ 18
BT reset ............................................. 18
Bluetooth audio (A2DP function) ....... 18
Specification ........................................ 19
Trouble shooting ................................. 20
3
INSTALLATION
Notes:
1. Choose the mounting location where
the unit will not interfere with the
normal driving function of the driver.
2) Before finally installing the unit, connect
the wiring temporarily and make sure it
is all connected up properly and the
unit and the system work properly.
3) Use only the parts included with the
unit to ensure proper installation. The
use of unauthorized parts can cause
malfunctions.
Consult with your nearest dealer if
installation requires the drilling of holes
or other modifications of the vehicle.
Install the unit where it does not get in
the driver’s way and cannot injure the
passenger if there is a sudden stop, like
an emergency stop.
If installation angel exceeds 30°from
horizontal, the unit might not give its
optimum performance.
- Avoid installing the unit where it would
be subject to high temperature, such as
from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either
from “Front” (conventional DIN Front-mount)
or “Rear” (DIN Rear-mount installation,
utilizing threaded screw holes at the sides
of the unit chassis). For details, refer to the
following illustrated installation methods.
DIN FRONT-MOUNT (Method A)
Installation Opening
This unit can be installed in any dashboard
having an opening as shown below:
Installing the unit
Be sure you test all connections first, and
then follow these steps to install the unit.
1. Make sure the ignition is turned off, and
then disconnect the cable from the
vehicle battery’s negative (-) terminal.
2. Disconnect the wire harness and the
antenna.
3. Press the release button on the front
panel and remove the control panel
(see the steps of “removing the front
panel”).
4. Lift the top of the outer trim ring then pull
it out to remove it.
5. The two supplied keys release tabs
inside the unit’s sleeve so you can
remove it. Insert the keys as far as
they will go (with the notches facing up)
into the appropriate slots at the middle left
and right sides of the unit. Then slide the
sleeve off the back of the unit.
30
Outer Trim Ring
Front Panel
L Key
Sleeve
R Key
53mm
182mm
