DVDO +1.408.213.6680 │ │ support@dvdo.com │www.dvdo.com
User Manual
Version v1.0

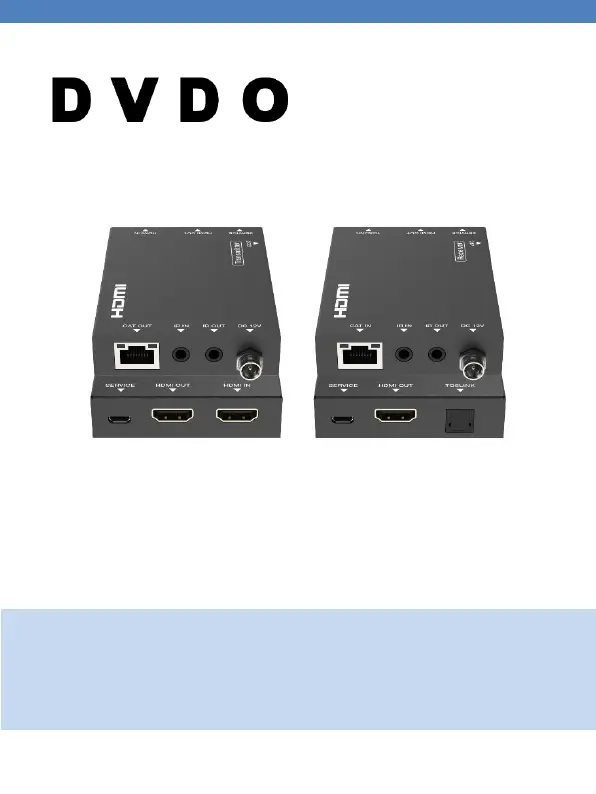

DVDO-CAT4K-70
4K HDMI 70m Extender Over Ethernet With ARC 60
Thank you for purchasing -CAT4K- DVDO 70
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life your equipment.of
Caution
The product requires the use of UTP connectors. Please connect in direct
interconnection method and not cross connect.do
White and Orange
Orange
White and Green
Blue
White and Blue
Green
White and Brown
Brown
Direct Interconnection Method
Table Contents of
1. Introduction. ........................................................................................ 1
2. Features. .............................................................................................. 1
3. Package Contents. ............................................................................. 2
4. Specifications. ..................................................................................... 2
5. Operation Controls and Functions. .................................................... 4
5.1 Transmitter Panel. .......................................................................... 4
5.2 Receiver Panel. ............................................................................. 5
5.3 Pin Definition IR .............................................................................. 7
6. Application Example. ......................................................................... 8
1 / 8
1. Introduction
This 18Gbps HDMI Extender can extend HDMI HD signal and IR control
signal to a distance up to 230ft / 70m via a single CAT6/6a cable, which
can achieve zero-delay, uncompressed long-distance transmission be-
tween the transmitter and receiver. Video resolution is up to 4K2K@60Hz.
It supports EDID copy pass-through function between the source device
and display device. supports POC function.It
This Extender can be widely used in multi-media conference halls, TV
teaching large screen displays.and
2. Features
☆ HDMI2.0b and 2.2 compliantHDCP
☆ Support 18Gbps video bandwidth
☆ Support video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4
☆ The transmission distance can be up extended to 230ft / 70m via a
single CAT6/6a cable
☆ Support HDR10, HDR10+, Dolby Vision, HLGHDR,
☆ Support -directional bi IR control signal pass-through
☆ Audio formats: LPCM 7.1, Dolby True DTS MasterHD, HD
☆ EDID copy pass-through function between the source device and
display device
☆ Support ARC and audio de-embedding, audio is output through the optical
ber port of the receiver
☆ Support bi-directional POC (Power over Cable) function
☆ Compact design for easy and exible installation
