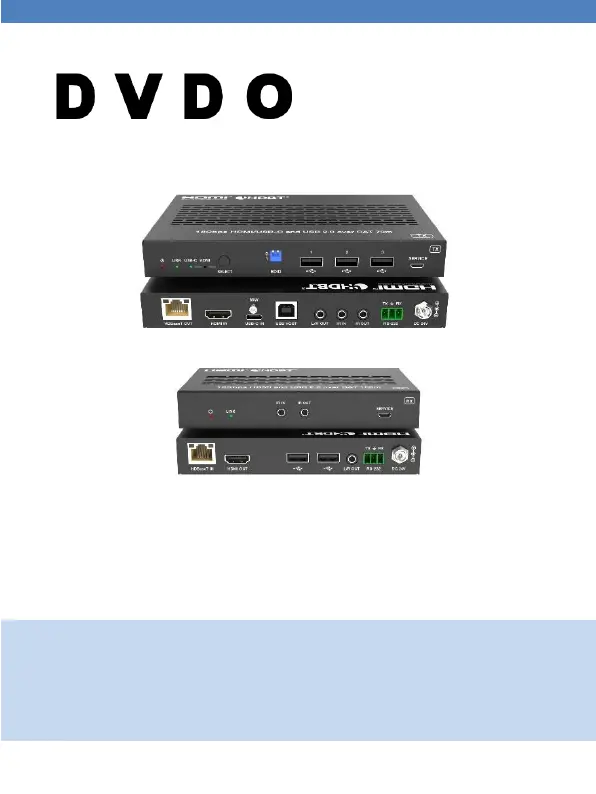

DVDO +1.408.213.6680 │ │ support@dvdo.com www.dvdo.com │
DVDO-Xtend-USBC-HDMI- 70
4K HDMI/USB-C 70m Extender Over HDBaseT 3.0 With USB 2.0
User Manual
Version v1.0
Thank you for purchasing DVDO-Xtend-USBC-HDMI-70
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this
manual for future reference.
Surge protection device recommended
DVDO-Xtend-USBC-HDMI- contains sensitive electrical components that 70
may be damaged by electrical spikes, surges, electric shock, lighting strikes,
etc. Use of surge protection systems is highly recommended in order to
protect and extend the life your equipment.of
Caution
DVDO-Xtend-USBC-HDMI- requires the use of UTP connectors. 70
Please connect in direct interconnection method and not cross do
connect.
White and Orange
Orange
White and Green
Blue
White and Blue
Green
White and Brown
Brown
Direct Interconnection Method
Table Contents of
1. Introduction. ........................................................................................ 1
2. Features. .............................................................................................. 1
3. Package Contents. ............................................................................. 2
4. Specifications. ..................................................................................... 2
5. Operation Controls and Functions. .................................................... 4
5.1 Transmitter Panel. .......................................................................... 4
5.2 Receiver Panel. ............................................................................. 6
6. IR Pin Definition. ................................................................................... 7
7. API Commands. .................................................................................. 8
8. Application Example. ......................................................................... 11
1 / 11
1. Introduction
DVDO-Xtend-USBC-HDMI- is an 18Gbps HDBaseT 3.0 extender that can 70
transmit uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and
USB 2.0 signals up to 230ft/70m (4K30/ 1080p) or 131ft /40m (4K60) via a
single CAT6A/7 cable. Video resolution is up to 4K2K@60Hz YUV 4:4:4. The
transmitter includes 1x HDMI input, 1x USB-C input (60W charging), 1x USB
Host and 3x USB Device ports. The receiver includes 1x HDMI output, 2x USB
Device ports. Both transmitter and receiver support 3.5mm analog audio de-
embedding, EDID management, bi-directional IR and RS-232 signal pass-
through. DVDO-Xtend-USBC-HDMI- supports -directional 24V POC 70 bi
function. It oers the most convenient solution for video extension via a single
CAT cable with long distance capability, and it is the perfect solution for home
or commercial applications.
2. Features
☆ Compliant with HDMI 2.0b 2.3, 18Gbps video bandwidthand HDCP
☆ HDBaseT 3.0 VS300R chipset based design
☆ Support video resolution up to 4K2K@60Hz (YUV 4:4:4)
☆ Uncompressed video signal transmission distance can be extended up to
230ft/70m for 4K@30Hz, 131ft/40m for 4K@60Hz over a singleor
CAT6A/7 cable
☆ TX features with 1x HDMI input, 1x USB-C input, 1x HDBT output, 1x
USB 2.0 host USB 2.0 clientsand 3x
☆ RX features with 1x HDMI output, 2x USB 2.0 clients
☆ USB-C and HDMI signal inputs support auto or manual switching mode
☆ Auto switching supports HDMI 5V or signal detect selection
☆ USB-C supports DP-ALT mode for A/V, USB 2.0 data and power charging
up to 60 watts
☆ TX/RX USB-A client ports VBUS on or o depends on USB host is
connected or not
☆ HDR, HDR10, HDR10+, Dolby Vision LLM HLG pass-throughand
☆ 4K to 1080p downscaling features on HDMI output, no frame rate
conversion
☆ Both TX support analog audio and RX de-embedding
☆ RS- signal pass-through and guest-mode control232
☆ Support bi-directional IR signal pass-through, USB 2.0 signal transmission
☆ Advanced EDID management
☆ Each USB-A provides power to 5V/500mAport up
☆ Support -directional 24V POC, with POC switchbi
☆ Compact design for easy exible installationand
