DVDO- Xtend-Pair3.0E

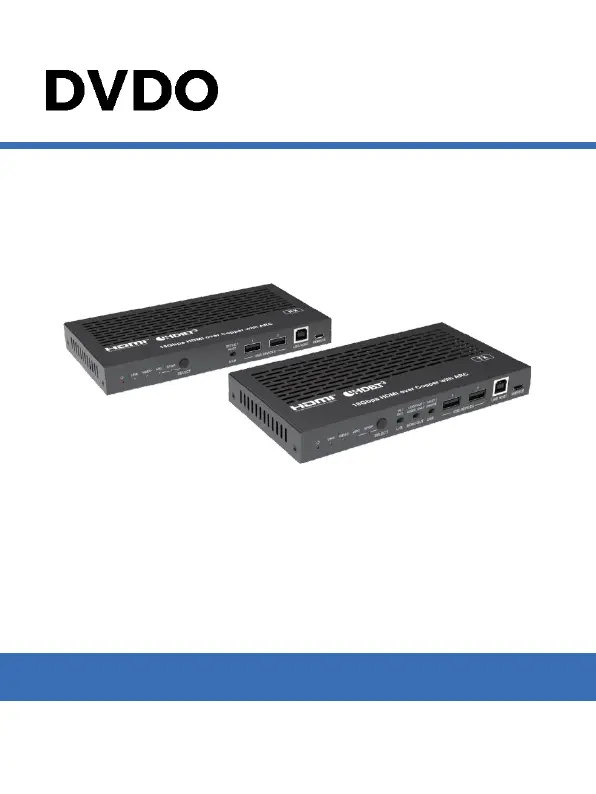

HDBaseT Extender 3.0
Version 1.0.0
User Manual
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical sp kes, surges, electric shock, lighting str kes, etc. Use of surge
protection systems highly recommended protect is in order to and extend the
life your equipment.of
Table Contentsof
1. Introduction. ......................................................................................... 1
2. Features. ............................................................................................... 1
3. Package Contents. .............................................................................. 2
4. Specifications. .....................................................................................
2
5. Operation Controls and Functions. .................................................... 4
5.1 Transmitter Panel. ...........................................................................4
5.2 Receiver Panel. ..............................................................................
6
5.3 Input & Output Switching. ..............................................................
7
5.4 Audio Embedding and -embedding De .......................................
9
5.5 Mode Applications. USB ................................................................
10
5.6 Pin Definition. IR ..............................................................................
11
6. Application Example. ..........................................................................
12
1 / 12
1. Introduction
This HDBaseT 3.0 Extender can extend uncompressed HD/UHD video and
audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and
USB2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter
supports audio embedding or de-embedding. The Receiver supports audio
de-embedding. It also supports eARC/ARC from RX's HDMI output pass
through to TX's HDMI input or de-embedding to TX's HDMI audio only and
SPDIF output ports, USB 2.0 (Host/Device is congurable) and bi-directional
POC.
The Extender oers the most convenient solution for HDMI extension via a
single CAT cable with long distance capability, and the perfect solution for is
home/commercial application.
2. Features
☆ HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant
☆ Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth
☆ HDR, HDR10, HDR10+, Dolby Vision and HLG pass through
☆ LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24,
DTS High Res, DTS- Master Audio, DSD pass throughHD
☆ Transmission distance to 328 / meters via a single CAT 6A/7 cableup ft 100
☆ Supports eARC/ARC function (the audio is returned to the HDMI IN port,
HDMI OUT(AUDIO ONLY) port and SPDIF OUT the transmitter.)port of
☆ Supports SPDIF audio reverse transmission
☆ Bi-directional IR, RS-232 and Ethernet signal pass through1G
☆ Supports USB2.0 transmission, Host/Device is congurable
☆ Bi-directional POC function24V
