Safety

The safety factor is the ratio of the

ultimate break strength

ultimate break strengthultimate break strength

divided by the working load limit

working load limit

working load limitworking load limit. The ultimate break

strength represents the force at which a part will struc-

turally fail. The working load limit is the maximum load

that the user shall apply. The safety factor provides a

margin of safety above the working-load limit to accom-

modate normal dynamic loading and normal wear.

The use of mounting configurations other than recom-

mended by Electro-Voice in this manual are at the risk of

the user.

Warning!

Suspending any object is potentially danger-

ous and should only be attempted by individu-

als who have a thorough knowledge of the

techniques and regulations of suspending ob-

jects overhead. Electro-Voice strongly recom-

mends that loudspeakers be suspended taking

into account all current national, federal,

state, and local laws and regulations. It is the

responsibility of the installer to ensure all

loudspeakers are safely installed in accord-

ance with all such requirements. When loud-

speakers are suspended, Electro-Voice

strongly recommends the system be inspected

at least once per year or as laws and regula-

tions require. If any sign of weakness or dam-

age is detected, remedial action should be

taken immediately. The user is responsible for

making sure the wall, ceiling, or structure is

capable of supporting all objects suspended

overhead. Any hardware used to suspend a

loudspeaker not associated with Electro-Voice

is the responsibility of others.

Prior to use, inspect the suspension points and associ-

ated hardware for any cracks, deformations, broken

welds, corrosion, missing or damaged components

which could reduce the suspension points strength. Re-

place any damaged hardware. Never exceed the limita-

tions or maximum recommended load intended for the

suspension points. As an added safety measure, it is

suggested the user install an extra suspension point

back to the building structural supports. This redundant

safety point should have as little slack as possible (less

than one inch is preferable). Prior to each use, inspect

the loudspeaker enclosures for any cracks, deforma-

tions, missing or damaged components, which could re-

duce enclosure strength. Replace any loudspeaker sys-

tems that are damaged or missing hardware.

Warranty information

For information on warranty periods and after sales ser-

vice, please visit: www.electrovoice.com/warranty

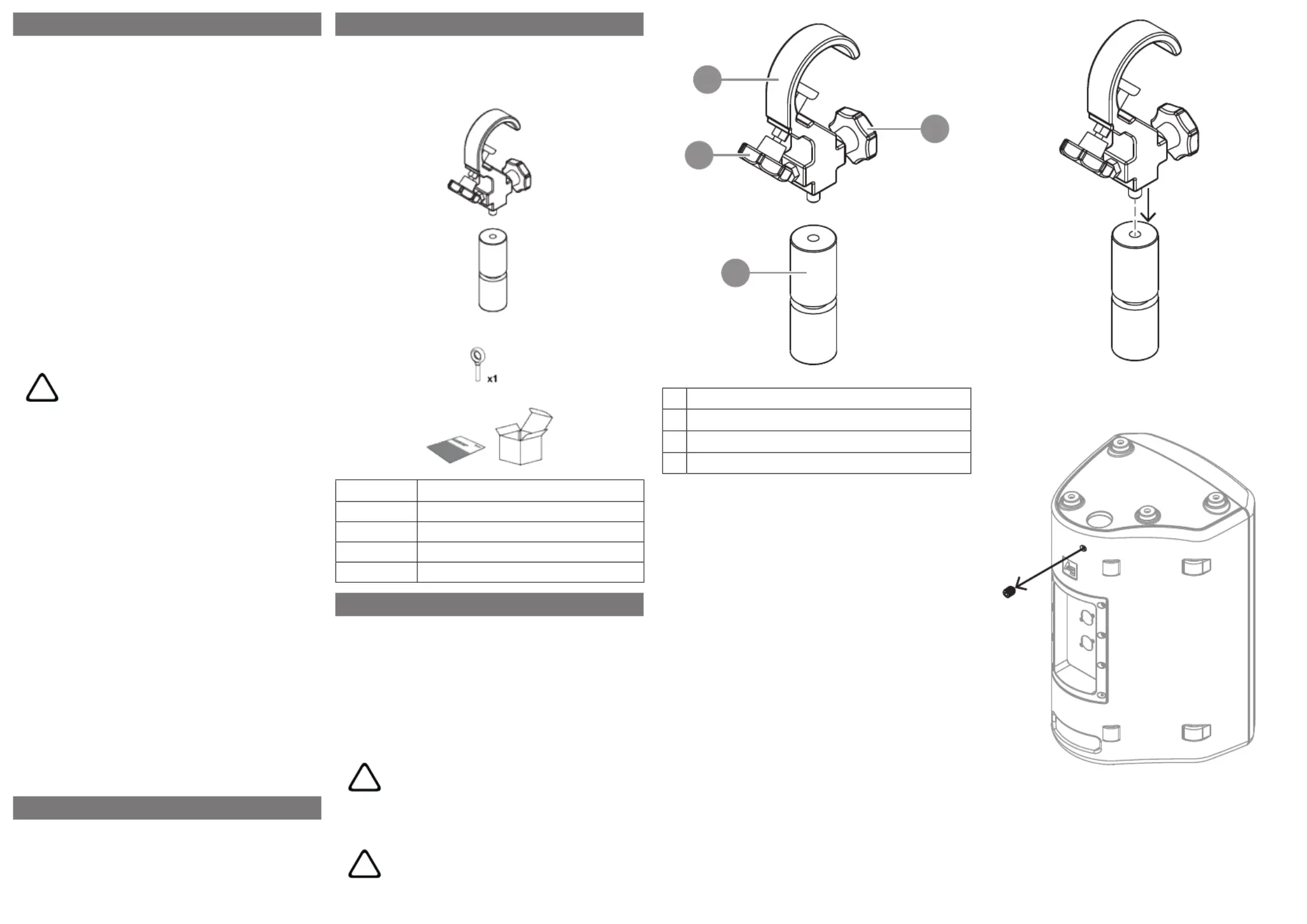

Parts included

Make sure that all parts are included and not damaged.

If the packaging or any parts are damaged, contact your

shipper. If any parts are missing, contact your Sales or

Customer Service Representative.

Quantity Component

1 Truss clamp

1 Pole mount adapter

1 M6 eyebolt

1 Quick installation guide

Installation

Thank you for choosing TCA-ZX1-LB accessory. This

manual describes how to install the truss clamp adapter

with ZX1 and 8-inch ZLX-G2 full-range loudspeaker sys-

tems.

The TCA-ZX1-LB is used to mount a ZX1, or 8-inch ZLX-

G2 full-range loudspeaker to a pole, or truss. It allows

for rotation (or panning) and locking of the position.

Warning!

Always mount the truss clamp adapter in a ver-

tical orientation to horizontal trusses. Do not

mount the truss clamp adapter in a tilted or

upside down orientation. Do not mount the

truss clamp adapter to vertical trusses.

Warning!

The maximum recommended load is 26.5lb

(12kg).

ATruss clamp

BPole mount adapter

CClamping knob

D Pan-locking knob

To install the TCA-ZX1-LB:

1. Loosen the pan-locking knob.

2. Tighten the bolt on the opposite side of the pan-

locking knob.

3. Tighten the pan-locking knob.

4. Remove the nut from the truss clamp and keep the

washer.

5. Screw and tighten the pole mount adapter onto the

truss clamp.

6. Turn the loudspeaker enclosure upside down, and

remove the setscrew from the back of the pole cup.

7. Insert the truss clamp and pole mount adapter into

the pole cup on the loudspeaker.

8. Screw the M6 eyebolt into the back of the pole cup.

Ensure that the M6 eyebolt is located in the groove

of the pole mount adapter properly by pulling on

the truss clamp.

9. Tighten the M6 eyebolt.

Bosch Security Systems, LLC

Bosch Security Systems, LLCBosch Security Systems, LLC

130 Perinton Parkway

Fairport, NY 14450

USA

www.electrovoice.com

www.electrovoice.comwww.electrovoice.com

EU importer:

EU importer:EU importer:

Bosch Sicherheitssysteme GmbH

Bosch Sicherheitssysteme GmbHBosch Sicherheitssysteme GmbH

Robert-Bosch-Platz 1

70839 Gerlingen

Germany

2024

2024-08 | 01 | F.01U.430.880 | 202408301030

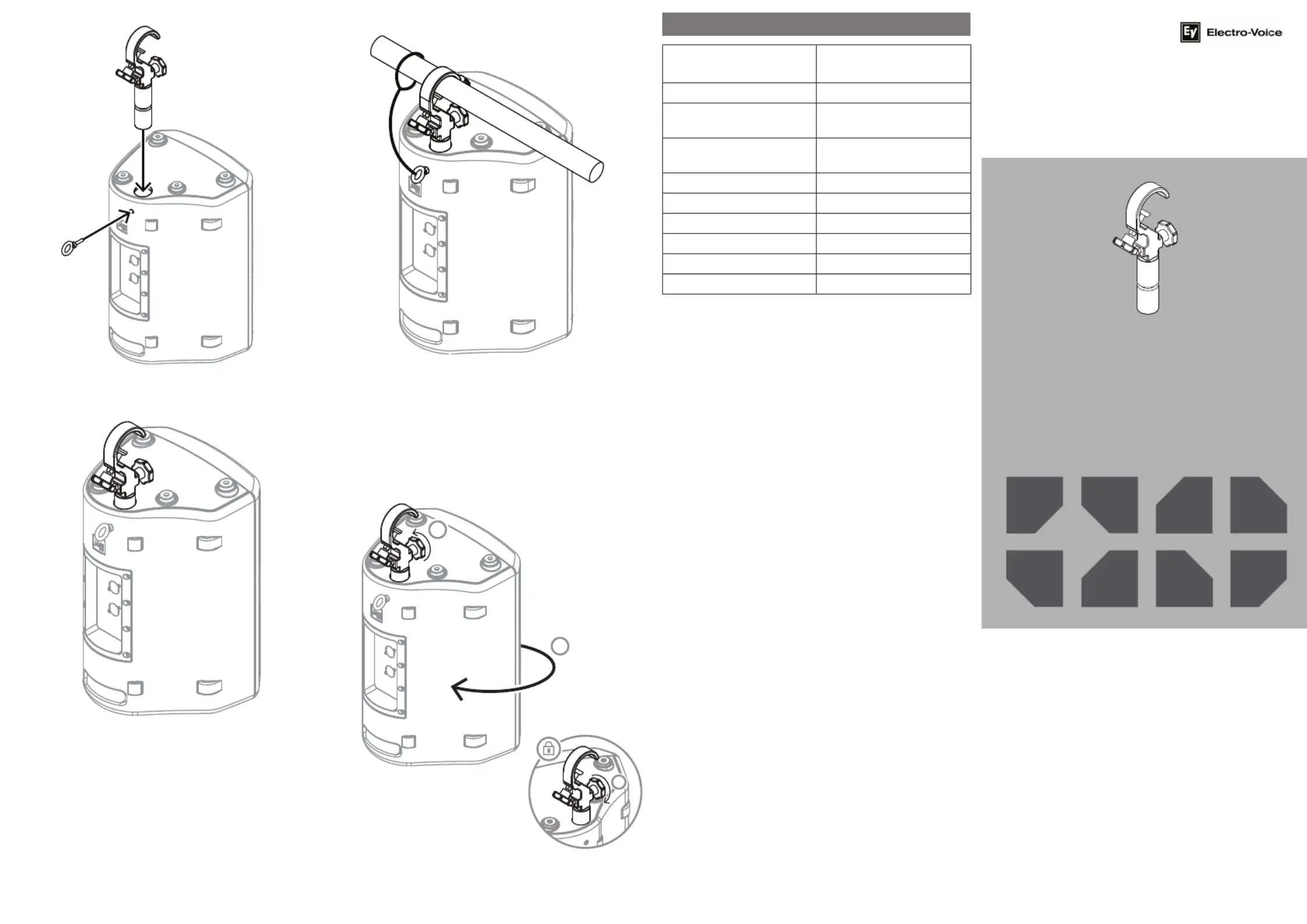

10. Attach a safety cable (not included) to the M6 eye-

bolt and truss as a safety precaution.

11. Mount the truss clamp to the truss and securely

tighten the clamp using the clamping knob.

To rotate (pan) the loudspeaker:

1. Loosen the pan-locking knob.

2. Rotate (pan) the loudspeaker to the desired angle.

3. Tighten the pan-locking knob to lock the loud-

speaker in the rotated position.

Technical data

TCA-ZX1-LB Truss clamp

adapter for ZX1, ZLX 8"

Color Black

Dimensions (H x W x D)

(in)

5.90 in x 5.70 in x 3.30 in

Dimensions (H x W x D)

(mm)

151 mm x 144 mm x 85 mm

Pipe outer diameter (in) 1.5 - 2in

Pipe outer diameter (mm) 38 - 51mm

Weight (lb) 1.40 lb

Weight (kg) 0.64 kg

Shipping weight (lb) 1.60 lb

Shipping weight (kg) 0.72 kg

Truss clamp adapter for ZX1, ZLX 8"

TCA-ZX1-LB

Quick installation guide
