Installing with the threaded rod
adapter
!
Warning!
Suspending any object is potentially
dangerous and should only be attemp-
ted by individuals who have a thorough
knowledge of the techniques and regu-
lations of suspending objects overhead.
Electro-Voice strongly recommends
that loudspeakers be suspended taking
into account all current national, fed-
eral, state, and local laws and regula-
tions. It is the responsibility of the in-
staller to ensure all loudspeakers are
safely installed in accordance with all
such requirements. When loudspeakers
are suspended, Electro-Voice strongly
recommends the system be inspected
at least once per year or as laws and
regulations require. If any sign of weak-
ness or damage is detected, remedial
action should be taken immediately.
The user is responsible for making sure
the wall, ceiling, or structure is capable
of supporting all objects suspended
overhead. Any hardware used to sus-
pend a loudspeaker not associated
with Electro-Voice is the responsibility
of others.
Notice!

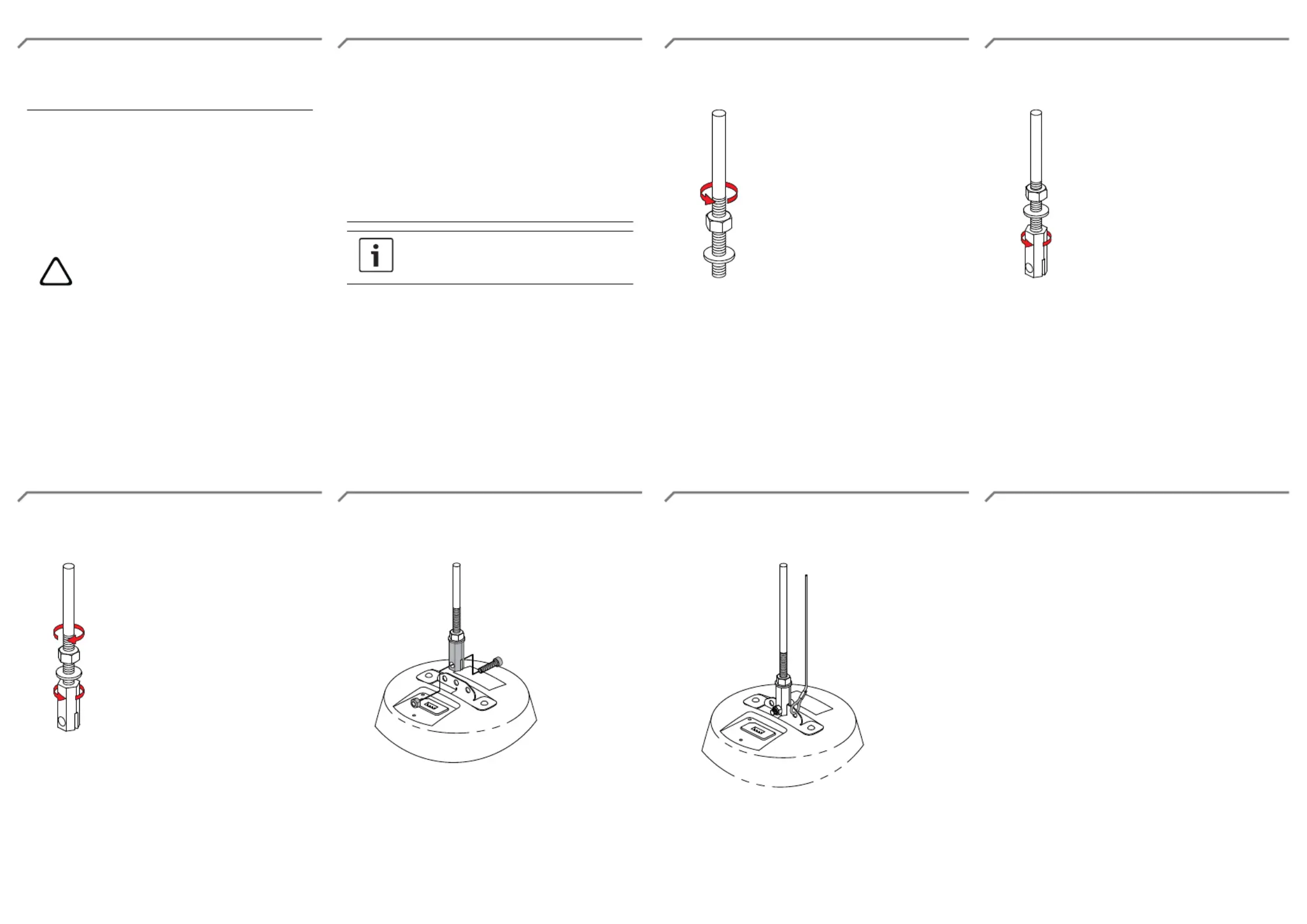

Use a steel threaded rod size 7/16"-20.
To , do the follow-install using a threaded rod
ing:
1. Mount (not included) to ceil-threaded rod
ing.
We highly suggest double nutting the threaded
rod, whenever possible.
2. Screw (not included) on the speakerjam-nut
end of the threaded rod on.
Leave enough space to screw the adapter.
3. Screw into threaded rod at leastadapter
3/4".
Align mounting slot, if needed.
4. Screw down until it contacts thejam-nut
surface of the threaded rod adapter.
Fully tighten against each other.
5. Insert into threadedpendant mounting plate
rod mounting slot.
6. Insert the threaded rod adapter locking
screw through the adapter holes and
speaker mounting plate center hole.
7. Tighten to the other endnylon locking nut
of the suspension screw.
8. Attach a secondary auxiliary support cable
(not included) onto one of the suspension
tab side holes in the top of the speaker.
9. Secure the secondary auxiliary support
cable (not included) to a different ceiling
support point of the building structure.
09
09
09
0909 10
10
10
1010 11
11
11
1111
12
12
12
1212 13
13
13
1313 14
14
14
1414
TR-P Threaded rod adaptor for pendant
en Quick Installation Guide
Bosch Security Systems, Inc
12000 Portland Avenue South
Burnsville MN 55337
USA
www.electrovoice.com
© Bosch Security Systems, Inc, 2018
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany
© Bosch Sicherheitssysteme GmbH, 2018
F.01U.359.768 | 01 | 2018.09
