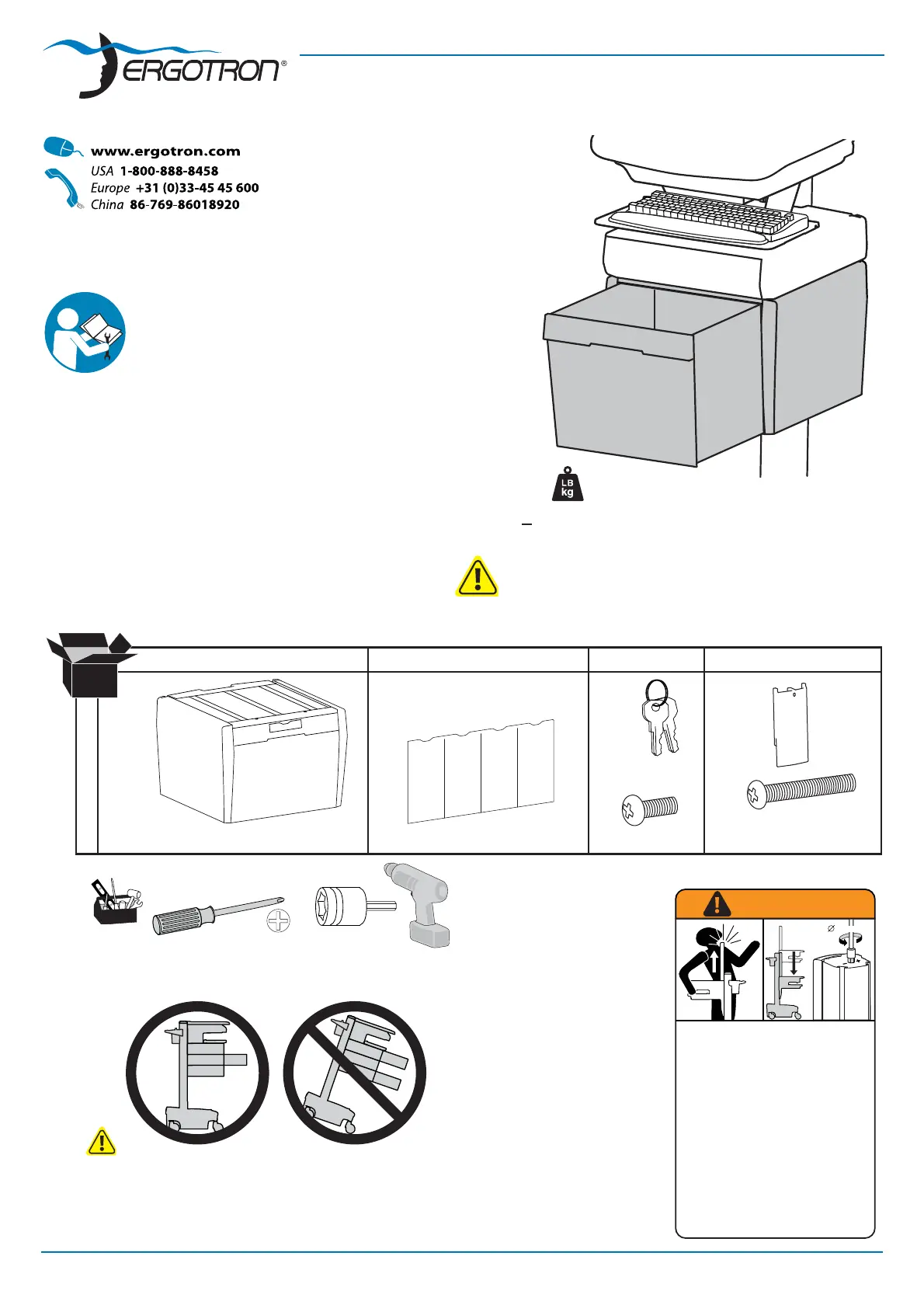

StyleView® SV43/44 Envelope Drawer
1x 1x
< 2 lbs (1 kg)
2x
M4 x 12mm
User Guide
User's Guide - English
Guía del usuario - Español
Manuel de l’utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l’utente - Italiano
Användarhandbok - svenska
ユーザーガイド : 日本語
用户指南 : 汉语
M3 x 25mm
For Medication Only.
Total weight capacity per drawer.
CAUTION: Close worksurface before opening drawers. Open only one drawer at a time. Do Not
push cart when drawers or worksurface are open. Failure to follow these instructions may cause
the cart to be unstable.
WARNING
IMPACT HAZARD!
MOVING PARTS CAN CRUSH AND CUT.
Minimize Lift Tension BEFORE:
· Removing Mounted Equipment.
· Shipping Cart
· Storing Cart
To Minimize Lift Tension
1. Lower worksurface to lowest position.
2. Turn adjustment nut at top of riser
counterclockwise until it stops
(Adjustment may require 40-60 revolutions).
Failure to heed this warning may result in
serious personal injury or property damage!
For More information and instructions refer to product
guide at or contact http://4support.ergotron.com
Ergotron Customer Care at 1-800-888-8458.
822-052
14mm (9/16”)
For the latest User Installation Guide please
visit: www.ergotron.com
888-97-353-G-00 rev. A • 09/14
2/9
1a b c
d
ON
OFF
13"
(329 mm)
12"
(308 mm)
12.6"- 24.4”
(320-620 mm)
11"
(280 mm)
15.6"
(395 mm)
10.7"
(272 mm)
12.8"
(324 mm)
5.3"
(134 mm)
5.4"
(138 mm)
Side View
Top View
Front View
Turn power system o by
holding down the AC Outlet
Power button for 1 - 3 seconds.
Power light will shut o .
Turn o all mounted equipment. Disconnect Power System from power source.
Disconnect Power from Drawer.
Powered Carts
Non-Powered Carts
888-97-353-G-00 rev. A • 09/14
3/9
2
a b
1x
3
M3 x 25mm
Attach the Travel Stop bracket to the lift engine to keep the drawer
from hitting the base.
Remove plug cover.
