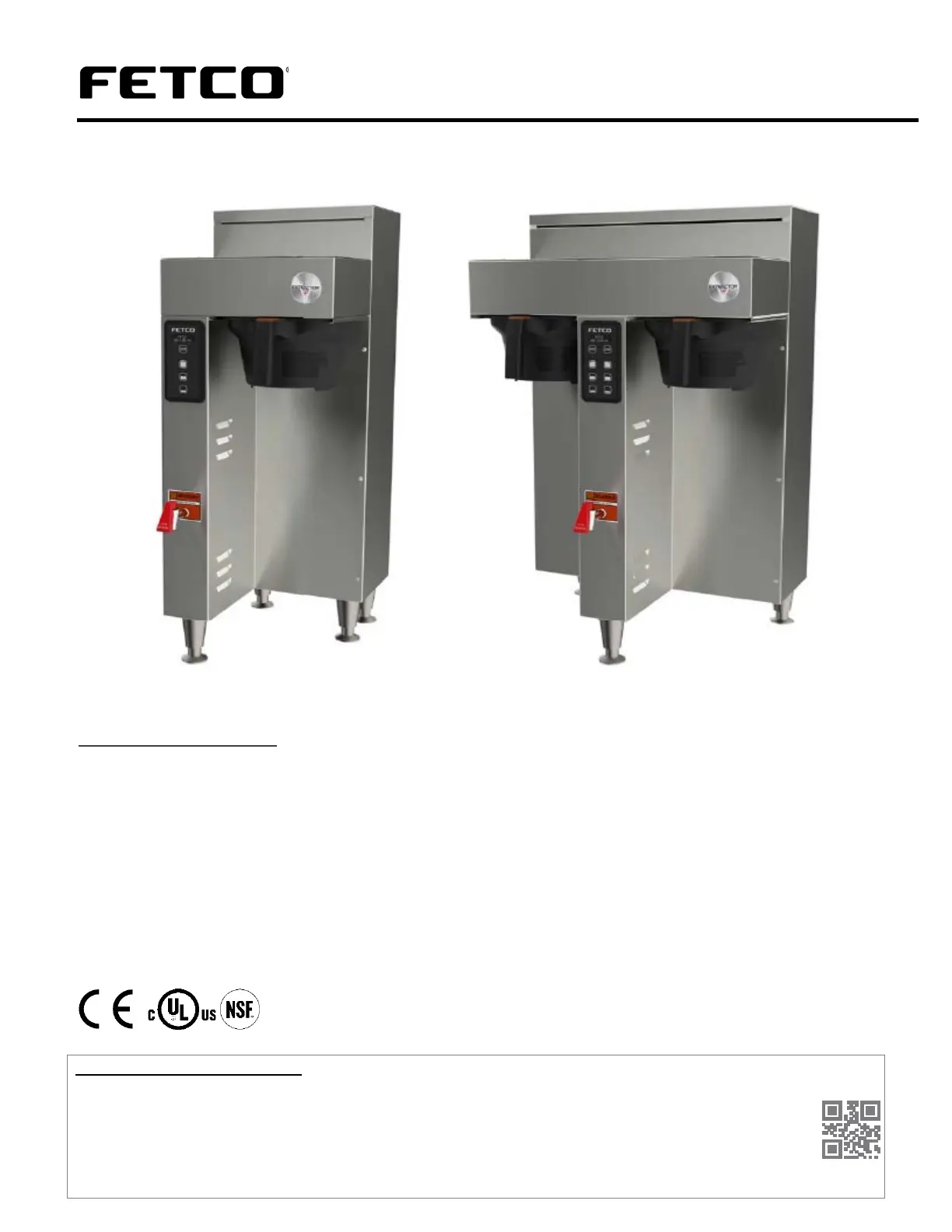

USER’S GUIDE & OPERATOR INSTRUCTIONS
FETCO COFFEE BREWER: CBS-1150 EXTRACTOR® V+ ™
CBS- -1151 XV+ CBS- -1152 XV+
TABLE OF CONTENTS
Specifications and Requirements ................................ 2
Rough-In Drawings ...................................................... 2
Electrical and Output Specifications ............................ 3
Starting The Brew ........................................................ 4
Enter Programming ...................................................... 4
Exit Programming & Save ............................................ 4
PROGRAMMING MENU LAYOUT .............................. 5
A PROGRAM ............................................................... 6
B GENERAL................................................................. 7
C INPUTS .................................................................... 8
D OUTPUTS ................................................................ 8
E OTHER ..................................................................... 8
F SAVE & EXIT ............................................................ 9
Error Codes .................................................................. 9
Operator Training ....................................................... 10
Cleaning & Maintenance ............................................ 10
Installation Guide........................................................ 11
Parts Diagram CBS-1151XV+ .................................... 14
Parts Diagram CBS-1152XV+ .................................... 16
CBS- 1151XV+ Tank Assembly .................................. 18
CBS- 1152XV+ Tank Assembly .................................. 19
Wiring Diagrams ......................................................... 20
CONTACT INFORMATION
FETCO®
FOOD EQUIPMENT TECHNOLOGIES COMPANY
600 ROSE ROAD
LAKE ZURICH • IL • 60047 0429 • USA-
INTERNET: www.fetco.com
©2017 018-2 FOOD EQUIPMENT TECHNOLOGIES COMPANY
PHONE: (800) 338 2699 (US & - CANADA)
(847) 719- 3000
FAX: (847) 719- 3001
EMAIL: sales@fetco.com
techsupport@fetco.com
PATENTS: WWW.fetco.com/patents
P 167 REV:000 MARCH 2018
fetco.com
Go to fetco.com for the latest versions of all information Page 2 P 167 March 2018
.
Rough-In Drawings
- XV+ CBS 1151 Front - XV+ CBS 1152 Front - & - CBS 1151 XV+ CBS 1152 XV+ Side
WIRING METHODS: REFERENCE ONLY: SEE THE WIRING DIAGRAMS AT BACK OF THIS GUIDE
CBS- XV+ 1151
CBS- XV+ 1152 factory configuration
208-240 volt single phase
CBS- XV+ 1152 *Field installed configuration
208 three -240 volt phase connection
Single phase—2 HEATER
Three phase—3 HEATER
Field conversion is to be made only by licensed electrician. Disconnect equipment from
power supply before service. Remove jumper between L2 and L3, and apply power to L3
Specifications and Requirements
Water Requirements:
Coffee Filter Size:
CBS- 1150 XV+ - - 20 75 psig, (138 517kPa) 1½gpm/(5.7lpm)
15” X 5 ½ ” standard FETCO # F001–
Water supplied to hot beverage equipment should be filtered
Water supplied Hardness >100 TDS (5.5 grain)
Temperature, as set by factory:
200°F (93°C) inside water tank (at sea level)
Water inlet fitting: 3/8 inch male flare.
Electrical: See electrical configuration chart.
Brew Volume: Full Batch 1 ½ gallon/ 6 liters
Total Brew Cycle: Factory setting: 5.5 minutes 4 minute brew time + 1.5 minute drip delay consisting of
Brew user -Process parameters are controllable for:
Brew Volume, Brew Time, Prewet Percent and Prewet Delay, Drip Delay
JUMPER
JUMPER
REMOVED
Go to fetco.com for the latest versions of all information Page 3 P 167 March 2018
Electrical and Output Specifications for CBS-1151 XV+ Single 1½ Gallon-6 Liter Coffee Brewers
Domestic USA and Canada - CBS 1151 XV+ Standard- & Voltage With cUL/UL NSF- C 4 ertification
Configuration
Codes
Heater
Configuration Voltage Phase Wires Electrical
Connection KW Maximum
Amp Draw
Brew-
Volume/Hour
E115151
2 X 3.0 kW
208 240-
1
2+G
Terminal Block
4.6 6.1-
22.4 25.8-
15.3 gal/58 liters
Domestic - & International Versions CBS 1151 XV+ With cUL/UL & NSF-4 C ertification
E1 15190
1 X 4.0 kW
200 240-
1
2+G
Terminal Block
4.1
14.2 17.1-
9.3 gal/35 liters
E1 15191
1 X 5.0 kW
200 240-
1
2+G
Terminal Block
5.1
17.7 21.3-
12.7 gal/48 liters
E1 15192
2 X 3.0 kW
200 240-
1
2+G
Terminal Block
6.1
21.3 25.5-
15.3 gal/58 liters
E1 15193
2 X 2.3 kW
200 240-
1
2+G
Terminal Block
4.7 6.1-
22.1 25.5-
14.0 gal/53 liters
E xport CBS-1151XV+ - C With cUL/UL & NSF 4 ertification
E1 15180
1 X 5.0 kW
200 240-
1
2+G
Terminal Block
3.6
17.7
11.6 gal/44liters
CE F -With Internal EMI ilter. CBS 1151 XV+ With CE & NSF- 4 certification. Not cUL or UL Listed
(CE) E1 2 1516
2 X 2.3 kW
230/400
2
2L,N,PE
Terminal Block
5.6
12.4
14.0 gal/53 liters
(CE) E1 15161
2 X 3.0 kW
230/400
2
2L,N,PE
Terminal Block
6.1
21.3 25.5-
15.3 gal/58 liters
.
Electrical and Output Specifications-for 1152 -CBS G -6 LXV+ Twin 1½ allon iter Coffee Brewers
USA and Canada - CBS 1152 XV+ & - C Field Selectable Electrical With cUL/UL NSF 4 ertification
Configuration
Codes
Heater
Configuration
Voltage Phase Wires Electrical
Connection KW Maximum
Amp Draw
Brew-
Volume/Hour
E115251
Selectable
Sold as1 phase
2 X 3.0 kW Terminal Block 15.3 gal/58 liters 200 240- 1 2+G 4.6 6.1 22.4 25.8- -
3 X 3.0 kW Terminal Block gal/85 liters 200 240- 3 3+G 6.9 9.1 19.5 22.5 22.5 - -
E115252
Selectable
Sold as1 phase
2 X 5.0 kW Terminal Block 25.3 gal/97 liters 200 240- 1 2+G 7.6 10.1 36.9 42.5- -
3 X 5.0 kW Terminal Block 200 240- 3 3+G 11.4 15.1 32.0 36.9 45 - - 38.3 gal/1 liters
Domestic & International Versions CBS- - & 1152 XV+ Standard Voltage With cUL/UL NSF- C 4 ertification
E115292
2 X 3.0 kW
200 240-
1
2+G
Terminal Block
4.6 6.1-
22.4 25.8-
15.3 gal/58 liters
E115294
2 X 5.0 kW
200 240-
1
2+G
Terminal Block
7.6 10.1-
36.9 42.5-
25.3 gal/97 liters
E115296
3 X 4.0 kW
240/415
3
4+G
Terminal Block
12.2
15.7 17.1-
29.5 gal/112liters
E115290 3 X 3.0 kW
220/380
or
240/415
3 - 4+G Terminal Block 9.1 11.8 12.9 22.5 gal/85 liters
E115291 3 X 5.0 kW
220/380
or
240/415 3 - 4+G Terminal Block 15.1 19.5 21.4 38.3 45 gal/1 liters
Export - CBS 1152 XV+ With cUL/UL & -NSF 4 C ertification
E115280
3 X 3.0 kW
200
3
3+G
Terminal Block
6.5
18.6
17 gal/64 liters
CE F -With Internal EMI ilter. CBS 1152 XV+ With CE & NSF- C4 ertification. Not cUL or UL Listed
(CE) E115261
3 X 3.0 kW
230/400
3
3L,N,PE
Terminal Block
8.6
12.4
22.5 gal/85 liters
(CE) E115262
3 X 5.0 kW
230/400
3
3L,N,PE
Terminal Block
14.1
20.4
38.3 gal/145 liters
