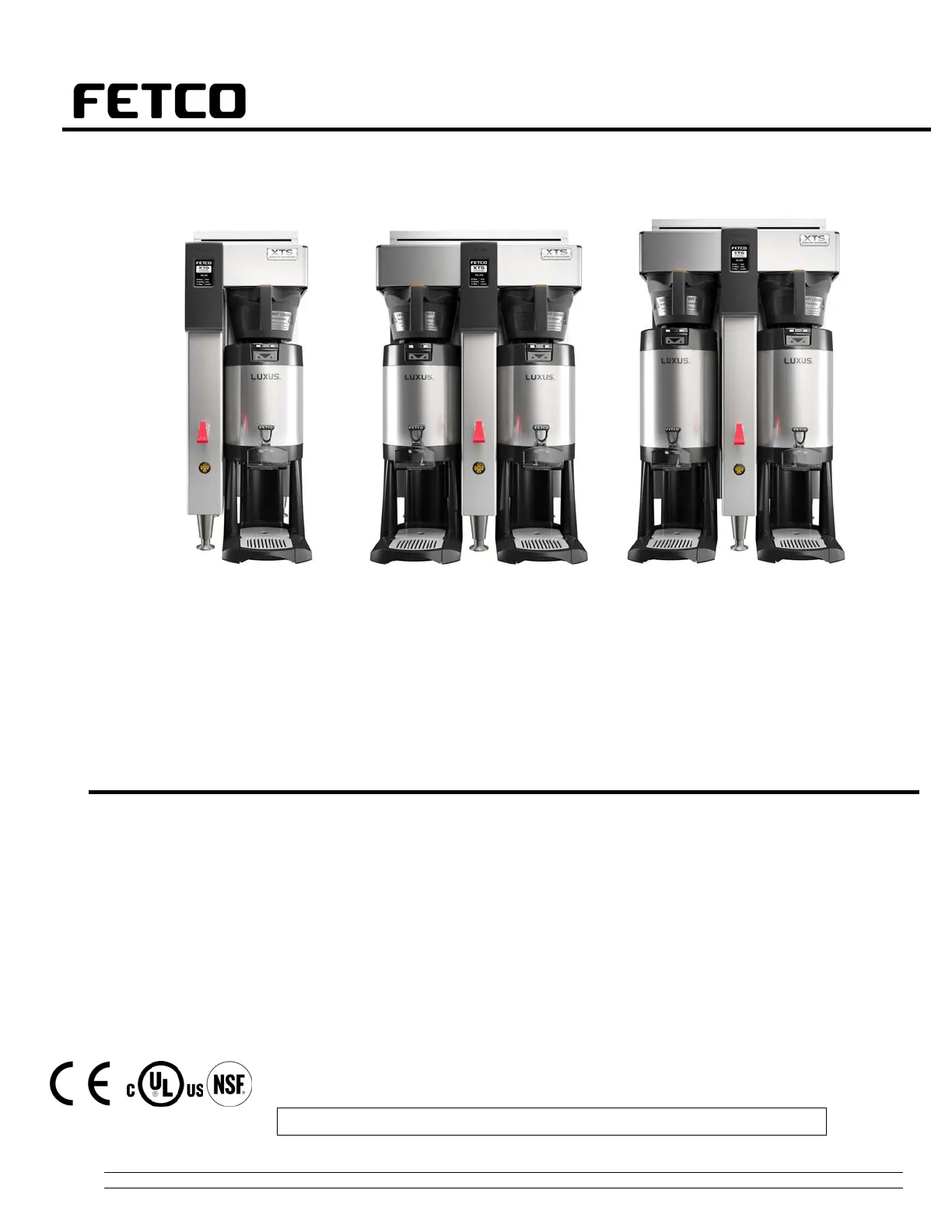

© 2014-2015 Food Equipment Technologies Company May 2015 P129 rev 002
.
®
User’s Guide, Operator Instructions and Access
User’s Guide, Operator Instructions and Access
User’s Guide, Operator Instructions and Access
User’s Guide, Operator Instructions and AccessUser’s Guide, Operator Instructions and Access
Table of Contents
Contact Information........................................................ 2
Description & Features .................................................. 2
Factory settings.............................................................. 2
Accessing equipment and control screens .................... 3
Layout of the brewer ...................................................... 3
Accessing batch and programming menu screens........ 3
Operating Instructions.................................................... 4
Programming- operator access programming ............... 6
Menu Features: Batch Parameters................................ 7
How to calibrate the flow rate....................................... 11
Operator Training .........................................................14
Safety Notes .................................................................13
Error Codes ..................................................................13
Service Guide to a Successful Installation ...................15
Installation Directions ...................................................16
CBS-2150XTS Dimensions & Utility Connections........18
Final Setup for Startup..................................................22
Parts and Wiring Diagrams ..........................................24
Brewbaskets .................................................................24
FETCO Models:
CBS-2151 CBS-2152XTS XTS CBS-2152-2XTS
6-liter/1 ½ -gallon 7.3-liter-2gallon
hot beverage brewers
Commercial Hot Beverage Equipment
NOTICE TO INSTALLER: Please leave this book with the machine.
2
Contact Information
Description & Features
CBS-2150XTS Series coffee brewers feature universal spray over technology from the Cascading Spray Dome™.
The following variables are programmed for each batch size:
  Brew volume Prewet percent (Percentage of the brew volume)
  Brew time Prewet delay (The time between prewetting and the brew cycle)
  Adjustable number of pulses Bypass-infinitely variable for strength adjustment
Drip delay (The time between the end of the brew cycle and end of the brewing cycle…to empty the brewbasket)
Operating Principles
Using these variables, the software calculates how much water to use for prewetting and brewing. The total brew time digitally
divides into several cycles. Within these cycles, the software calculates how long to spray water over the coffee grounds, and
how long to pause before the next cycle begins. If desired, pul ume may be adjusted without se count and length, brew-vol
changing brew time and brew-time may be adjusted without changing volume brewed.
Factory settings
The following are the factory set defaults—all variables in the brew menu are adjustable:
Brew Volume and coffee filter size:
CBS-2150 single and Twin: 1.5 gallon/6 liters per brew Coffee Filters: 15” X 5 ½ ”
CBS-2152-2 Gallon Twin EXPORT ONLY: 2 gallon/7.6 liters per brew Coffee Filters: 15” X 5 ½
Brew Time, all models: Factory set at 5.5 minutes=[4 minute brew time + 1.5 minute drip delay]
Temperature Control: Water temperature is factory set at —93°C/200°F
Features
Touchscreen Operation [XTS: EXtractor Touch Screen] Brew water low temperature lockout
  Cascading Spray Dome-No clog sprayhead ECO mode for tank heater energy savings
  Brew mechanism is digitally adjustable Dispenser locator under brew basket
  Intuitive Control Settings for Batch sizing Magnetic flux brew basket sensor
  Infinitely variable bypass for strength adjustment Brewbasket locks (configurable)
  Four fully programmable batch sizes per side Totalizing counters for brewer functions
  User programs save-to and load-from SD cards Optional gourmet stainless steel brewbasket
  Recipe copy to SD card Demonstration Mode for review & training
  Customizable batch name Heavier gauge stainless steel cabinet
  Screen logo customizable by user from SD card Configurable for FLOWJET® pump module
  SD card firmware program and upgrade installation SD card Backup for menu items
Universal wiring – single or 3 phase
FETCO®
Food Equipment Technologies Company
600 Rose Road
Lake Zurich •
•
•
•• IL •
•
•
•• 60047-0429 •
•
•
•• USA
Phone: (847) 719-3000
Toll Free: (800)FETCO.99 or (800) 338-2699
Internet: www.fetco.com
Technical Support
techsupport@fetco.com
General Inquiries: info@fetco.com
Sales (North Americas): sales@fetco.com
Sales (International): international@fetco.com
3
Accessing equipment and control screens
Layout of the brewer
Touch-screen for brewer operation
Brew basket sensor (internal)
SD card interface port (Load & Save)
Hot Water Faucet
Airpot or Dispenser Locator
(Two for dual side)
Main power switch
Slide out back panel for service access
Accessing batch and programming menu screens
CBS-2100 home screen shown
Å CBS_2100XTS brewer HOME SCREEN:
Tap to enter batch selection screen.
Å ÆTap left or right side batches
…AND…
Select and hold down a batch selector pennant to begin brew.
Batch selection screen
Accessing the menu screens for programming
CBS-2100 home screen shown
CBS-2100 home screen shown
Shown in optional “ECO” Mode
CBS-2100 home screen shown
ÆFrom power “OFF”
ÆTouch screen will briefly illuminate
ÆTurn main power switch to “ON”
(Switch located lower right side of back panel)
-When Complete: the HOME SCREEN will display
-Immediately touch and hold finger to enter programming
-Lower portion of the screen will highlight as shown
-In 5-8 seconds “PROGRAMMING” screen will appearÆ
Regular
1.50
05:30
Decaf
1.50
05:30
Decaf
1.50
05:30
Regular
1.50
05:30
EXIT
PROGRAM
Batch 1 Left
XTS™
EXTRACTOR
EXTRACTOR
EXTRACTOR
EXTRACTOREXTRACTOR
TOUCHSCREEN
TOUCHSCREEN
TOUCHSCREEN
TOUCHSCREENTOUCHSCREEN
CBS-2150XTS
Ready
Heating
Filling
Touch
screen
to unlock
CBS-2150XTS
Ready
Heating
Filling
XTS™
EXTRACTOR
EXTRACTOR
EXTRACTOR
EXTRACTOREXTRACTOR
TOUCHSCREEN
TOUCHSCREEN
TOUCHSCREEN
TOUCHSCREENTOUCHSCREEN
Touch
screen
to unlock
CBS-21XX
Ready
Heating
Filling
XTS™
EXTRACTOR
EXTRACTOR
EXTRACTOR
EXTRACTOREXTRACTOR
TOUCHSCREEN
TOUCHSCREEN
TOUCHSCREEN
TOUCHSCREENTOUCHSCREEN
Touch
screen
to unlock
CBS-2150XTS
ECO
Heating
Filling
XTS™
EXTRACTOR
EXTRACTOR
EXTRACTOR
EXTRACTOREXTRACTOR
TOUCHSCREEN
TOUCHSCREEN
TOUCHSCREEN
TOUCHSCREENTOUCHSCREEN
Touch
screen
to unlock
Touch/Hold here
to enter “PROGRAMMING”
MAIN POWER SWITCH
Located to lower right
side of back
p
anel
Touchscreen
