Sida 1/30

TABLE OF CONTENTS

Specifications and Requirements ..................................... 2

Electrical and Output Specifications ................................. 3

Starting The Brew ............................................................. 4

The Brew Sequence ......................................................... 4

Enter Programming ........................................................... 4

Programing Menu Layout ................................................. 5

A Program ......................................................................... 6

B General .......................................................................... 7

C Service Inputs ................................................................ 8

D Service Outputs ............................................................. 8

E Calibration ..................................................................... 9

F Service Menu .......................................................... 10

F Error Codes ............................................................. 11

G Counters ................................................................. 12

H Save & Exit ............................................................. 13

Operator Training ....................................................... 14

Brewer Setup .............................................................. 17

Parts Diagram CBS-1231 ........................................... 18

Parts Diagrams CBS-1232 ......................................... 20

CBS- 1231 Tank Assembly ......................................... 22

CBS- 1232 Tank Assembly ......................................... 24

Wiring Diagrams ......................................................... 27

User’s Guide and Operator Instructions

CBS-1 - y 231 & CBS 1232 Extractor Plus Brewing S stem

FETCO PLUS® Commercial Beverage Equipment

CBS- - -1232 & CBS 1232 3.0 4.0 Extractor Plus Brewers, shown with 2.2 liter Air Pot (sold separately)

CONTACT INFORMATION

FETCO® FOOD EQUIPMENT TECHNOLOGIES COMPANY

600 ROSE ROAD

LAKE ZURICH • IL • 60047 0429 • USA-

ON THE WEB fetco.cofee

PATENTS:https://www.fetco.com/pl,pages,patents,74.html

PHONE: (800) 338- 2699 (US & CANADA)

(847) 719- 3000 (All Countries)

FAX: (847) 719- 3001

EMAIL:sales@fetco.com

orders@fetco.com (to order parts and equipment)

techsupport@fetco.com (all service queries)

P 211 REV. 000 November 2021

Coffee Brewer: CBS 30 series-12

fetco.com

Go to fetco.com for the latest versions of all information Page 2 User Guide & Operator instructions P 211 Novembere0 2021

Specifications and Requirements

Water Requirements:

Electrical: See electrical configuration chart. 120

Volt; 208 Volt; 230 Volt and user configurable-240

CBS- - -1231 &1232: 20 75 psig, (138 517kPa) 1½gpm/(5.7lpm)

Water inlet fitting is a 3/8 inch male flare.

Brewer supplied with inlet valve adaptor for BSP to SAE

Tank Temperature, as set by factory:

200°F (93°C) inside water tank (at sea level)

Brew Volume: Full Batch 3.8 liters; second batch 2.9 liter)

User adjustable liter to 4 5 liters per brewfrom 90. 5 .7

Water supply: (Optimal) 100-150TDS

All beverage equipment must use filtered water.

Total Brew Cycle—Factory d minutes=[4 minute brew time + minute drip delay] efault setting: batch: 5:30 First 1.30

: Second batch 5:00 minutes=[3:30 minute brew time + 1:30 minute drip delay]

Brew- Process parameters are user controllable for:

Brew Volume, Brew Time, Prewet Percent and Prewet Delay, Drip Delay

Weights and Capacities

Model Height Depth Width

Water tank

capacity

Empty

Weight

Filled

Weight

Shipping

Weight

Shipping Dimensions

CBS-1231

Brewer

27 3/4 in

700 mm

11 3/4 in

300 mm

20½ in

520 mm

3.3 gallon

12 .4 L

29 lbs

13.2 kg

55 lbs

25.0 kg

41 lbs

18.6 kg

30” x 17” x 22”

76.2 x 43.2 x 55.9 cm

CBS-1232

Brewer

27 3/4 in

700 mm

19 ¾ in

500 mm

20½ in

520 mm

6. gallon0

22 .4 L

47 lbs

21.3 kg

92 lbs

41.7 kg

55 lbs

25.0 kg

30” x 23” x 25”

76.2 x 58.4 x 63.5 cm

Calibrated for

3.8 L/1.0 gal brew

Brew Basket 13” X 5” Filter 13” X 5 or FETCO# F002” Coffee

1” legs standard

2.5” legs optional

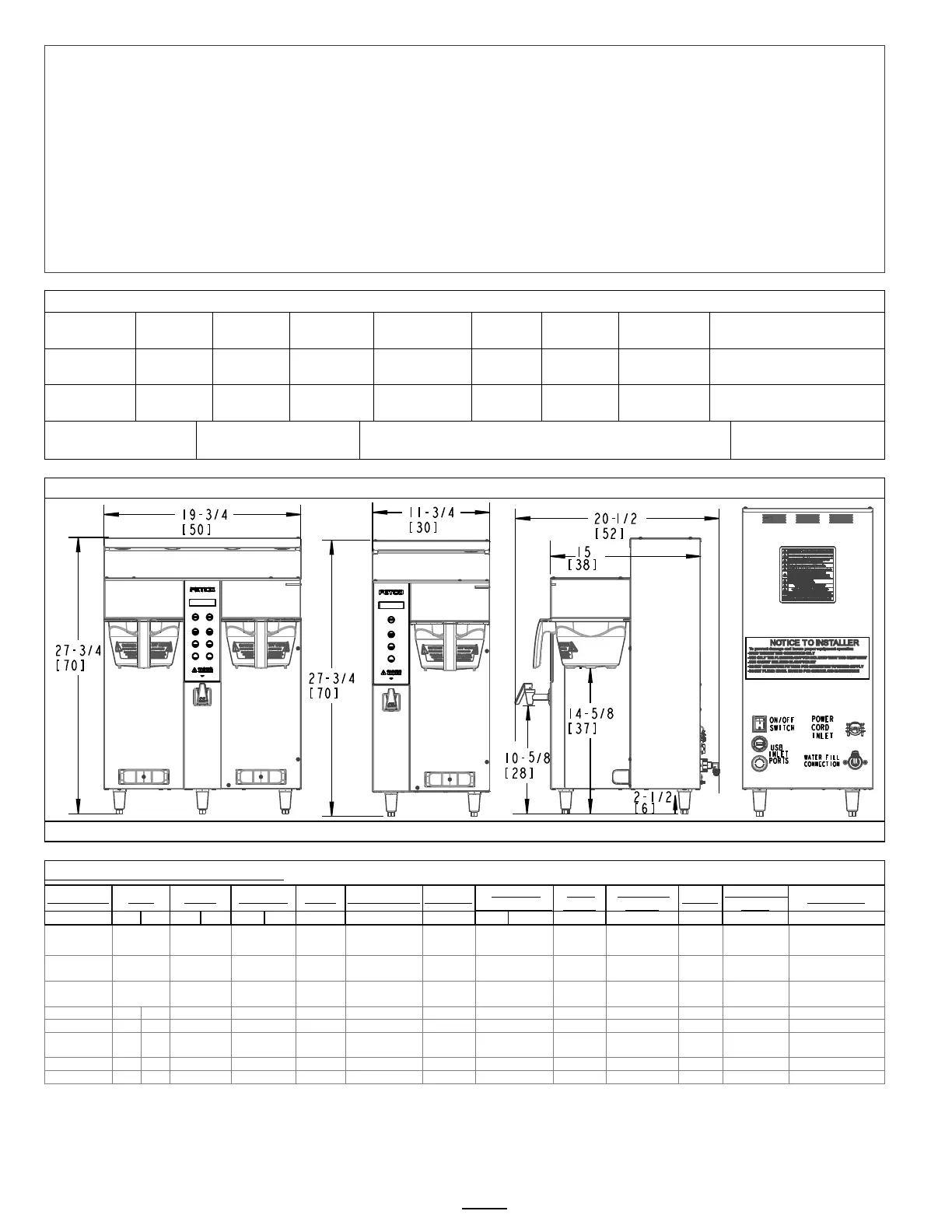

Roug 1231 2132)h-In Drawings 1201.00055.00 ( CBS- ) 1201.00054.00 (CBS-

- - ( CBS 1232 Front CBS 1231 Front Side both) Back (both)

EXAMPLE: SKU E1231US- -1X117 PM001

SKU NUMBER IDENTIFICATION KEY

Product Line

Level Phase Family Region ID Voltage Range

# Heaters

Individual

Heater Wattage

Brew

Basket

Hot Water

Faucet

Bypass

Brew Basket

Locks

P ower Cord

E=extractor

US =United

States 1 - 1 A = 100 120 1.5 P=plastic M=manual 1=Yes 1=Yes 0=Terminal Block

12=PLUS

Series

3 1=

single side

IN =

International

2 - 2 5- B = 200 240 1.7 M=metal A=automatic 0=no 0=no 1= NEMA 15P

3 2=

dual side

CE = CE C = 380 3 - 3 415 2.3

N=None

2=NEMA 5- 20P

NM = NOM

U = 1 or 3

D = 440- 480

3.0

3=NEMA 6- 15P

4.0

4=NEMA 6- 30P

X=120 or 240

Dual Voltage

5.0

5=CEE 7/7 Schuko

6=UK1- 13P

7= AUSTRALIAN

Go to fetco.com for the latest versions of all information Page 3 User Guide & Operator instructions P 211 Novembere0 2021

Electrical and Output Specifications

CBS- 31 - 12 PLUS Single 3.0 4.0 Liter Coffee Brewers Field configurable Domestic

Electrical and Output Specifications Brewer has factory installed cord and plug & terminal block 50Hz or 60Hz

SKU Voltage

Heater

Configuration

Wires KW

Electrical

Connection

Phase

Amp Draw

Brew-Volume

per hour

E1231US 1X117 PM001- -

120

1 X 1.7 kW

2+G

1.7

NEMA 15- 5P

14.7

3.9 gal/14.8 L

Domestic-Dual Voltage

208 240-

2 X 1.7 kW

2+G

2.6 3.4-

Terminal Block

12.8 14.- 7

5.8 gal/22 L

Electrical Specifications, Domestic Single brewer

- single voltage 120 volt cord and plug single phase 50Hz or 60Hz

CBS- 31 - 12 PLUS Single 3.0 4.0 Liter Coffee Brewers Domestic models

Electrical and Output Specifications All brewers have factory installed cord and plug 50Hz or 60Hz

SKU Voltage

Heater

Configuration

Wires KW

Electrical

Connection

Phase

Amp Draw

Brew-Volume

per hour

E1231US 1A115 PM001- -

120

1 X 1.5 kW

2+G

1.5

NEMA 15- 5P

13.0

4.0 gal/15.1 L

E1231US 1A123 PM002- -

120

1 X 2.3 kW

2+G

2.3

NEMA 5- 20P

19.7

5.8 gal/22 L

E1231US 1A123 MM112- -

120

1 X 2.3 kW

2+G

2.3

NEMA 5- 20P

19.7

5.8 gal/22 L

CBS- - 1231PLUS Single 3.0 4.0 Liter Coffee Brewers Field configurable International

Electrical and Output Specifications Brewer has factory installed cord and plug & terminal block 50Hz or 60Hz

SKU Voltage

Heater

Configuration

Wires KW

Electrical

Connection

Phase

Amp Draw

Brew-Volume

per hour

E1231NM 1X123 PM002- -

120

1 X 2.3 kW

2+G

2.3

NEMA 5- P 20

19 .7

6.1 23.2 gal/ L

Dual Voltage

208 240-

2 X 2.3 kW

2+G

4.6

Terminal Block

1 -19 7.1 .7

7.6 30 gal/ L

CBS- 31 - 12 PLUS Single 3.0 4.0 Liter Coffee Brewers International models

Electrical and Output Specifications All brewers have terminal block electrical utility connection 50Hz or 60Hz

SKU Voltage

Heater

Configuration

Wires KW

Electrical

Connection

Phase Amp Draw

Brew-Volume

per hour

E1231NM 1A123 PM002- -

120

1 X 2.3 kW

2+G

2.3

NEMA 5- 20P

19.7

5.8 gal/22 L

E1231NM 1B130 PM003- -

208 240-

1 X 3.0 kW

2+G

2.3 3.0-

NEMA 6- 15P

11.3 3.0-1

7.9 gal/30.0 L

E1231IN PM000- -1B123

200 240-

1 X 2.3 kW

2+G

1.6 2.3-

Terminal Block

8.5 10.1-

5.8 gal/22 L

E1231IN PM000- -1B130

200 240-

1 X 3.0 kW

2+G

2.1 3.0-

Terminal Block

10.9 13.0-

7.7 gal/29.1 L

CBS-1 231PLUS - 3. 0 4.0 Lit er Coffee Br ewers C E mod els

Electric al and Output Specificat ions Sch uko cord an d pl ug 50Hz

SKU

Voltage

Heater Co nfi gurati on

Wir es

Elec trical C onn ecti on

Phas e

Amp Draw

Brew-Volum e per ho ur

E123 1CE- - 1B 123 PM 005

230

1 X 2.3 kW

L/N/PE

2.1

CEE 7/7 S huko

9.7

5.8 gal/ 22 L

E - - 1231CE 1B 13 0 P M00 5

230

1 X 3.0 kW

L/N/PE

2.8

CEE 7/7 S huko

12.5

7.7 gal/ 29. 1 L

CBS- - 1232PLUS Dual 3.0 4.0 Liter Coffee Brewers Domestic models

Electrical and Output Specifications All brewers have terminal block electrical utility connection 50Hz or 60Hz

SKU Voltage

Heater

Configuration

Wires KW

Electrical

Connection

Phase

Amp Draw

Brew-Volume

per hour

E1232US 1B223 PM000- -

208 240-

2 X 2.3 kW

2+G

3.5 4.6-

Terminal Block

17.1 19.7-

11.0 gal/42.0 L

E1232US 1B230 MM110- -

208 240-

2 X 3.0 kW

2+G

4.5 6.0-

Terminal Block

22.2 25.5-

14.3 gal/54 L

E1232US 1B230 PM000- -

208 240-

2 X 3.0 kW

2+G

4.5 6.0-

Terminal Block

22.2 25.5-

14.3 gal/54 L

CBS- - 1232PLUS Dual 3.0 4.0 Liter Coffee Brewers International models

Electrical and Output Specifications All brewers have terminal block electrical utility connection 50Hz or 60Hz

SKU Voltage

Heater

Configuration

Wires KW

Electrical

Connection

Phase Amp Draw

Brew-Volume

per hour

E1232IN PM000- -1B223

200 240-

2 X 2.3 kW

2+G

3.2 4.6-

Terminal Block

16.5 19.7-

12.2 gal/46.3L

E1232IN PM000- -1B230

200 240-

2 X 3.0 kW

2+G

4.2 6.0-

Terminal Block

21.3 25.5-

15.8 gal/60 L

E1232NM 1B230 PM000- -

208 240-

2 X 3.0 kW

2+G

4.5 6.0-

Terminal Block

22.2 25.5-

15.8 gal/60 L

E1232KS-1B230- PM000

208 240-

2 X 3.0 kW

2+G

4.5 6.0-

Terminal Block

22.2 25.5-

15.8 gal/60 L

CBS-1 232PLU S Dual 3. 0- 4.0 Lite r Coffee B rewers C E m odels

Elect rical and Outp ut Spe cific ation s Al l brewers h ave term in al bloc k electri cal uti lity co nnec tion 50Hz

SKU

Voltage

Hea ter Con fig uratio n

Wir es

Elec trical C onn ecti on

Phas e

Amp Draw

Brew-Volum e per ho ur

E123 2CE- - 1B 223 PM 000

230

2 X 2.3 kW

L/N/PE

4.2

Terminal Bl ock

18.9

11. 0 g al/ 42.0 L

E123 2CE- - 1B 230 PM 000

230

2 X 3.0 kW

L/N/PE

5.5

Terminal Bl ock

25.5

14. 9 gal/ 56 L

E123 2CE- - 2B 223 PM 000

230/400

2 X 2.3 kW

2L/N/PE

4.2

Terminal Bl ock

9.7

11. 0 gal/ 42.0 L

E123 2CE- - 2B 230 PM 000

230/400

2 X 3.0 kW

2L/N/PE

5.5

Terminal Bl ock

12.5

14. 9 gal/ 56 L

Export Only 250V 13 A

BS 1363A UK

NEMA 5- 15P; 120 V

Plug Configuration

Export Only 250V 16 A

“Schuko" CEE 7/7 PLUG

NEMA 5- P 20 ; 120 V

Plug Configuration

NEMA 6- 15P; 240 V

Plug Configuration

Produktspecifikationer

Varumärke:	Fetco
Kategori:	kaffebryggare
Modell:	CBS-1232
Enhetsplacering:	Volledig ingebouwd
Typ av operation:	Knoppen
Inbyggd display:	Ja
Vikt:	44000 g
Bredd:	598 mm
Djup:	570 mm
Höjd:	805 mm
Nettoskatt:	2100 W
Antal platsinställningar:	14 couverts
Dörrfärg:	Niet van toepassing
Sladdlängd:	1.7 m
Fördröjd starttimer:	Ja
Startfördröjning:	24 uur
Indikering av återstående tid:	Ja
Torkningsklass:	A
Cykelns längd:	190 min
Ljudnivå:	44 dB
Årlig-energiförbrukning:	237 kWu
Energieffektivitetsklass (gammal):	A+++
Installationsfackets bredd:	600 mm
Installationsfack djup:	570 mm
Vattenförbrukning per cykel:	9.7 l
Nuvarande:	10 A
Installationsfack höjd (min):	805 mm
Djup när dörren är öppen:	1165 mm
Produktstorlek:	Volledige grootte (60 cm)
Typ av bästa fack:	Lade
Varningssignal:	Ja
LED-bakgrundsbelysning:	Ja
Översvämningsskydd:	Ja
Glasskydd:	Ja
Halvlastad:	Ja
Tvättprogram:	Auto, Glass/delicate, Eco, Intensive, Normal, Quick
Energiförbrukning per cykel:	0.84 kWu
Årlig vattenförbrukning:	2716 l
Avloppsslangens längd:	1.5 m
Vattentillförselslangens längd:	1.5 m
Val av sensorprogram:	Ja
Installationsfack höjd (max):	870 mm
Temperatur (max):	75 °C
Vattentillgång:	Cold, Hot
Strömförbrukning (när avstängd):	0.2 W
Bakgrundsbelysning-färg:	Geel
AC-ingångsspänning:	230 V
AC-ingångsfrekvens:	50 Hz
