Sida 1/24
FETCO® and LUXUS® are trademarks or trade names of Food Equipment Technologies Company.
© 2008 Food Equipment Technologies Company Part # P102 April 14, 2008
www.fetco.com
www.fetco.com
www.fetco.com
www.fetco.com www.fetco.com

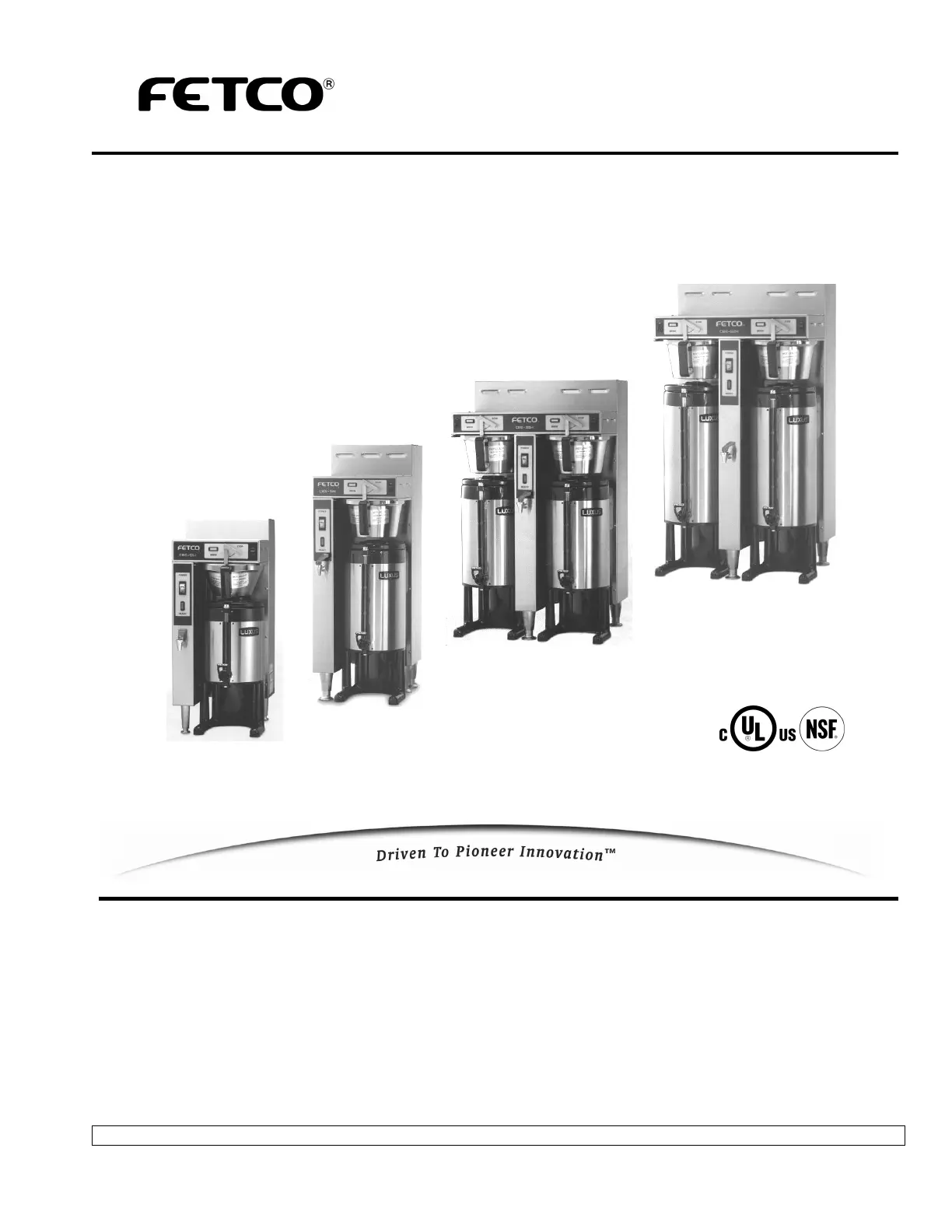

CBS-5000 Series Coffee Brewers
Table of Contents
Contact Information ........................................... 2
Introduction ........................................................ 2
Product Description/Features ............................ 2
Specifications..................................................... 2
Dimensions & Utility Connections...................... 4
Installation.......................................................... 6
Operating Procedures ....................................... 8
Service............................................................... 9
Brewer Parts .................................................... 14
Troubleshooting............................................... 22
Models:
Models:
Models:
Models: Models:
CBS-51H10
CBS-51H10
CBS-51H10
CBS-51H10 CBS-51H10
CBS-51H15
CBS-51H15
CBS-51H15
CBS-51H15 CBS-51H15
CBS-52H15
CBS-52H15
CBS-52H15
CBS-52H15 CBS-52H15
CBS-52H20
CBS-52H20
CBS-52H20
CBS-52H20 CBS-52H20
2
Contact Information
Contact Information
Contact Information
Contact Information Contact Information
FETCO ®
Food Equipment Technologies Company
600 Rose Road
Lake Zurich • IL USA • 60047-0429 •
Internet: www.fetco.com
Phone: (800) 338-2699 (US & Canada)
(847) 719-3000
Fax: (847) 719-3001
Email: sales@fetco.com
techsupport@fetco.com
Introduction
Introduction
Introduction
Introduction Introduction
This manual applies only to CBS-5000 Series brewers manufactured with solid state relays (SSR) in the heating
circuit. Earlier versions utilized merc er’s Guide # P004 for mercury relay ury relays for heating. Refer to Us
versions.
The first digit of the serial number can be used to identify the version of a particular unit:
Serial number begins with 6 – SSR version.
Serial number begins with 0 or 1 – mercury relay version.
Product Description/Features
Product Description/Features
Product Description/Features
Product Description/Features Product Description/Features
CBS-51H10 - CBS-52H15 - Single 1.0 Gallon Coffee Brewer Twin 1.5 Gallon Coffee Brewer
CBS-51H15 - Single 1.5 Gallon Coffee Brewer CBS-52H20 - Twin 2.0 Gallon Coffee Brewer
• Thermal, portable, beverage dispensers Optional Features:
• • Stainless steel, gourmet size brew baskets Half batch brewing capability*
• • Brew basket double safety locks Iced tea brewing capability*
• Open type, leak free dispense system • Color stainless steel finish
• • Fully automatic, with electronic temperature control Export voltage
• Two level tank drain system • 3.0 liter airpots, with stands,
• Total serviceability from the front
* Can be added at any time.
Note: Throughout this manual, all references to CBS-51H and CBS-52H brewers apply to all models, unless otherwise indicated.
Specifications
Specifications
Specifications
Specifications Specifications
Brew Volume: CBS-51H10 CBS-51H15 & 52H15 CBS-52H20 Temperature:
Full Batch 1 gal. (3.8 lit.) 1 ½ gal. (5.7 lit.) 2 gal. (7.6 lit.) 205°F inside water tank (at sea level)
Half Batch ½ gal. (1.9 lit.) ¾ gal. (2.8 lit.) 1 gal. (3.8 lit.) 195° ± °F 5 at sprayhead
Brew Time: CBS-51H10 CBS-51H15 & 52H15 CBS-52H20 Bypass Range: 0 to 33%
Full Batch 2 ¾ - 3 min. 4 - 4 ½ min. 5 ½ - 6 min. (factory set at 0% unless specified)
Half Batch 1 ½ min. 2 - 2 ¼ min. 2 ¾ - 3 min. (Not available on CBS-51H10)
(Allow an extra 2-4 minutes for coffee to finish dripping)
Coffee Filter Size: CBS-51H10 CBS-51H15, 52H15, & 52H20 Water Requirements: 20-75 psig
13” X 5” 15” X 5 ½ ” – standard
13” X 5” - optional half batch
½ gpm (CBS-51H)
1 ¼ gpm (CBS-52H)
Weights and Capacities
Brewer
Model
Weight
(empty)
Water tank
Capacity & Weight.
Weight
(filled)
Dispenser
Weight, ea.
Dispenser
Filled, ea..
Total Weight Brewer &
Dispensers, Filled
CBS-51H10 42 lbs. 3.0 gal. 25 lbs. 67 lbs. 7.0 lbs. 15.4 lbs. 82.4 lbs.
CBS-51H15 55 lbs. 3.7 gal. 31 lbs. 86 lbs. 8.5 lbs. 21 lbs. 107 lbs.
CBS-52H15 82 lbs. 7.6 gal. 63 lbs. 145 lbs. 8.5 lbs. 21 lbs. 187 lbs.
CBS-52H20 87 lbs. 7.6 gal. 63 lbs. 150 lbs. 10 lbs. 26.6 lbs. 203.2 lbs.
3
Electrical Configuration and Brewing Efficiency
CBS-51H10 1.0 gallon per batch
Electrical Heater Voltage Maximum Batches per Hour (max 13)
Config. Code Configuration Connection Phase Wires KW Amp draw Cold Water Hot Water
C50016 1 X 1800 att 120 1 ph. 2 w + ground 1.9 15. 4.5 10.3 8
C50026 2 X 1800 watt 120/208 1 ph. 3 + ground 3.1 13.5 6.7 13.0
120/220 1 ph. 3 + ground 3.4 14.7 7.8 13.0
120/240 1 ph. 3 + g round 4.1 15.5 8.9 13.0
CBS-51H15 1.5 gallons per batch
Electrical Heater Voltage Maximum Batches per Hour (max 11)
Config. Code Configuration Connection Phase Wires KW Amp draw Cold Water Hot Water
C51016 1 X 1800 watt 120 1 ph. 2 + ground 1.9 15.5 3.0 6.8
C51026 1 X 3000 att 120/208 1 ph. w 3 + ground 2.3 11. 3.7 8.6 2
120/220 1 ph. 3 + g round 2.6 1 4.3 10.0 1.8
120/240 1 ph. 3 + g round 3.1 1 5.0 11.0 2.9
C51036 1 X 4000 att 120/208 1 ph. w 3 + ground 3.1 14. 5.0 11.0 8
120/220 1 ph. 3 + ground 3. 15. 5.8 11.0 5 7
120/240 1 ph. 3 + g round 4.1 17. 6.6 11.0 1
C51046 2 X 3000 att 120/208 1 ph. w 3 + ground 4.6 22. 7.4 11.0 0
120/220 1 ph. 3 + ground 5. 23. 8.6 11.0 1 3
120/240 1 ph. 3 + g round 6.1 25 9.9 11.0 .4
C51056 2 X 4000 watt 120/208* 1 ph. 3 + ground 6.1 29.3 9.9 11.0
*(-5) version is rated for 208 volts maximum
CBS-52H15 1.5 gallons per batch
Electrical Heater Voltage Maximum Batches per Hour (max 22)
Config. Code Configuration Connection Phase Wires KW Amp draw Cold Water Hot Water
C52016 2 X 3000 att 120/208 1 ph. w 3 + ground 4.6 22. 7.4 17.2 0
120/220 1 ph. 3 + ground 5. 23. 8.6 19.9 1 3
120/240 1 ph. 3 + g round 6.1 25. 9.9 22.0 4
C52026 2 X 4000 att 120/208 1 ph. w 3 + ground 6.1 29. 9.9 22.0 3
120/220 1 ph. 3 + ground 6.8 3 11.5 22.0 0.9
120/240 1 ph. 3 + g round 8.1 3 13.2 22.0 3.8
C52036 3 X 3000 att 120/208 3 ph. w 4 + ground 19. 11.2 22.0 7.0 4
120/220 3 ph. 4 + ground 7. 20. 12.9 22.0 8 5
120/240 3 ph. 4 + g round 9.1 22.4 14.9 22.0
C52046 3 X 4000 att 120/208 3 ph. w 4 + ground 9. 25. 14.9 22.0 2 6
120/220 3 ph. 4 + ground 10.3 27. 17.3 22.0 1
120/240 3 ph. 4 + g round 12.1 29. 19.8 22.0 6
C52186 3 X 4000 att 480 3 ph. 3 +w ground 12.1 1 19.8 22.0 4.8
C52986 STEAM 120 1 ph. 2 + ground n/a 0.8 22.0 22.0
maximum steam demand: 40 lbs./hour steam pressure: 10 – 15 PSI
CBS-52H20 2.0 gallons per batch
Electrical Heater Voltage Maximum Batches per Hour (max 18)
Config. Code Configuration Connection Phase Wires KW Amp draw Cold Water Hot Water
C53016 2 X 3000 att 120/208 1 ph. w 3 + ground 4.6 22. 5.6 12.9 0
120/220 1 ph. 3 + g round 23. 6.5 14.9 5.1 3
120/240 1 ph. 3 + g round 6.1 25. 7.4 17.2 4
C53026 2 X 4000 att 120/208 1 ph. w 3 + ground 6.1 29. 7.4 17.2 3
120/220 1 ph. 3 + g round 6.8 3 8.6 18.0 0.9
120/240 1 ph. 3 + g round 8.1 3 9.9 18.0 3.8
C53036 3 X 3000 att 120/208 3 ph. w 4 + ground 19. 8.4 18.0 7.0 4
120/220 3 ph. 4 + g round 7. 20. 9.7 18.0 8 5
120/240 3 ph. 4 + g round 9.1 22.4 11.2 18.0
C53046 3 X 4000 att 120/208 3 ph. w 4 + ground 9. 25. 11.2 18.0 2 6
120/220 3 ph. 4 + g round 10.3 27. 12.9 18.0 1
120/240 3 ph. 4 + g round 12.1 29. 14.9 18.0 6
C53186 3 X 4000 att 480 3 ph. 3 +w ground 12.1 1 19.8 22.0 4.8
C53986 STEAM 120 1 ph. 2 + ground n/a 0.8 22.0 22.0
maximum steam demand: 40 lbs./hour steam pressure: 10 – 15 PSI
