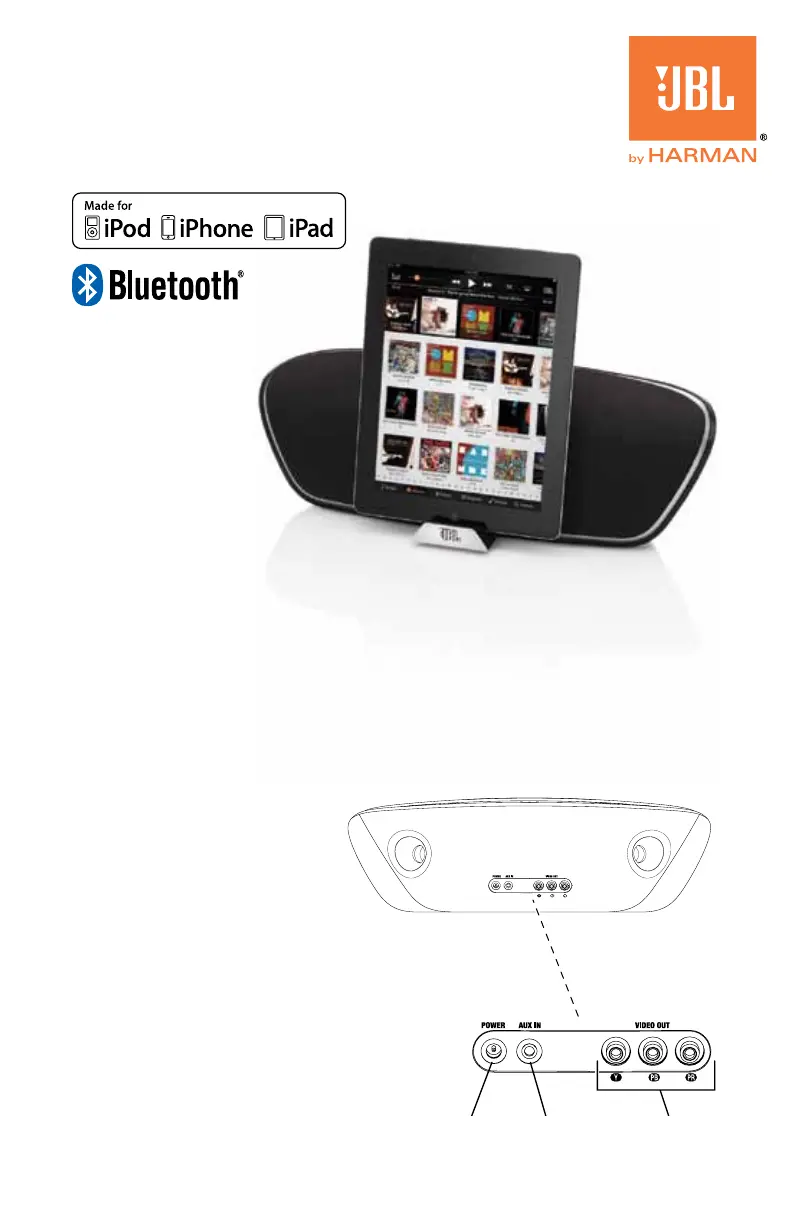

Quick Setup Guide

JBL OnBeat™

VenUe

WeLcOme

Thank you for purchasing the JBL OnBeat

™ Venue iPad dock. This quick setup guide will

show you how to connect and set up your dock. To download the free JBL Musicflow App

for your portable device, please go to the Apple App Store.

cOnnectIOnS

1. If you are going to use your OnBeat Venue with another audio source, plug one end of

a 3.5mm (1/8”) stereo cable (not supplied) into the OnBeat Venue’s Aux In connector,

and plug the other end into the audio source’s audio out or headphone out connector.

2. If you are going to use your

OnBeat Venue with a video

display, use a component video

cable (not supplied) to connect

the OnBeat Venue’s Component

Video Out jacks to the video

display’s component video

inputs. When you play audio/

video content on the device

the video will appear on the

connected display.

3. Plug the OnBeat Venue’s power

supply into the Power connector

on the unit and into a working

AC power outlet. The OnBeat

Venue will automatically turn

on and go into the Bluetooth

pairing mode (the Bluetooth

LED will be flashing blue). Power

Connector

Aux

Input

Component

Video Out

PLACEMENT

Place OnBeat Venue on a shelf or table with the rear of its enclosure is at least 3" (76mm)

away from a wall or other surface to allow the bass ports to operate properly.

CONTROLS AND INDICATORS

Bass Boost

Button

Movie

Button

Aux Input

LED

Bluetooth

LED

Volume Up/Down

Buttons

Docking Slide (open)

Docking Connector

Power

Button

Dock Input

LED

Source

Button

Bass Boost button: Press this button to enhance the bass performance. The button’s

LED will illuminate when Bass Boost is on.

Movie button: Press this button to activate the Movie EQ mode, which creates an

extra-wide sound field to compliment films and other video media. The button’s LED will

illuminate when the Movie mode is on.

• If the JBL MusicFlow app is active in a docked device, pressing the Movie button will

cycle between the Movie EQ mode and whatever EQ mode has been selected in the

MusicFlow app. The Movie button’s LED will illuminate when the Movie mode is on and

will turn off when the EQ mode selected in the app is on. (If Movie is the EQ mode

selected in the MusicFlow app, pressing the Movie button has no effect.)

Source button: Press this button to cycle through the audio sources: , iPod/Bluetooth

iPhone/iPad dock and Aux Input. The input LED for the active source will illuminate.

• If you begin to stream audio from a paired Bluetooth device or play audio from a

device connected to the dock while another source is playing, the OnBeat Venue will

automatically switch to the new source.

Aux Input LED: This LED illuminates when the Aux Input is the active source.

Dock Input LED: This LED illuminates when the iPod/iPhone/iPad dock is the active

source.

Bluetooth LED: This LED flashes blue when the OnBeat Venue is in the pairing Bluetooth

mode, and turns solid blue when it has successfully paired with a device.Bluetooth

www.jbl.com

Power button: When the OnBeat Venue is on, press the Power button to put it into the

standby mode. The button’s LED will illuminate solid amber when the unit is in standby.

When the OnBeat Venue is in standby, press the Power button to turn it on. The button’s

LED will illuminate solid white when the unit is on.

When the OnBeat Venue is in the standby mode it will automatically turn on when it detects

audio playing from a -connected device or from a docked device.Bluetooth

When the OnBeat Venue is on, it will automatically enter the standby mode after 10 minutes

of inactivity (no audio input and no user-control operation).

Note: When the OnBeat Venue enters the standby mode it will also bring a docked device

into standby mode.

Volume Up/Down buttons: Press these buttons to raise and lower the OnBeat Venue’s

volume. To mute the sound, press both buttons at the same time. (The Power button LED

will flash white when the sound is muted.) To restore the sound press both Volume buttons

together.

Docking slide: Press in on the JBL logo to open the docking slide and pull the slide all

the way open.

Docking connector: Place your device onto the docking slide so that it is firmly seated

on the docking connector.

Note: We recommend that you disable the”Shake to Shuffle” feature on your iPod nano,

iPod touch and iPhone before docking the device on the OnBeat Venue.

BLUETOOTH WIReLeSS StReamInG

To wirelessly stream audio to the OnBeat Venue from a -enabled device: Bluetooth

1. If the OnBeat Venue’s LED is not flashing blue, press the Source button until Bluetooth

the Bluetooth LED begins flashing blue.

2. Place the -capable device in the pairing mode. Use the device’s Bluetooth Bluetooth

pairing menu to pair with OnBeat Venue. (If the device requires a pairing code, use

0000.)

3. When OnBeat Venue’s LED illuminates blue continually, it is paired with the Bluetooth

device and you can stream audio via from the device to the OnBeat Venue.Bluetooth

To disconnect the device, press and hold the Source button. To pair OnBeat Bluetooth

Venue with a different -enabled device, repeat Steps 2 and 3 with the new device.Bluetooth
