Sida 1/13

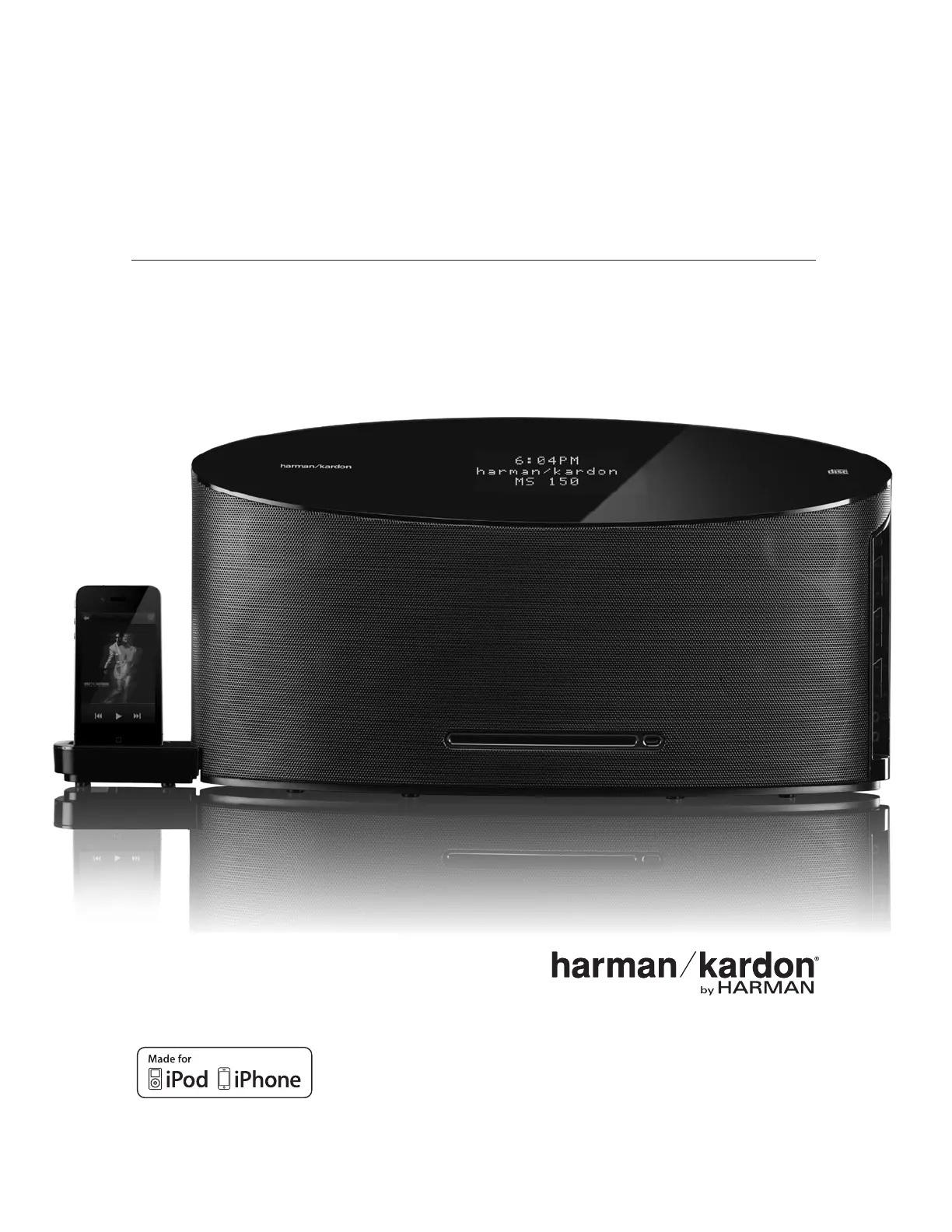

MS 150
High-performance stereo music system
Owner’s Manual
2
MS 150
INTRODUCTION, DESCRIPTION, SUPPLIED ACCESSORIES 3
FRONTPANEL CONTROLS 4
REARPANEL CONNECTIONS 5
REMOTE CONTROL FUNCTIONS 6
INSTALLATION 7
OPERATION 8
USING THE REMOTE CONTROL 8
SETTING THE CLOCK 8
TURNING ON THE MS 150 8
SETTING THE ALARM 8
SETTING THE ALARM VOLUME 8
SETTING THE EQUALIZATION EQ 8
VOLUME CONTROL 9
SOURCE SELECTION 9
FM RADIO 9
PROGRAM STATION PRESETS 9
CD 9
PLAYBACK CONTROL 9
DATA DISCS 9
AUXILIARY INPUTS 9
DOCK FOR iP /od iPhone 10
PHOTO AND VIDEO PLAYBACK 10
UNDOCKING THE iP /od iPhone 10
TROUBLESHOOTING GUIDE 10
TECHNICAL SPECIFICATIONS 11
TRADEMARK ATTRIBUTIONS 12
English
3
MS 150
Introduction, Description, Supplied Accessories
Introduction
More than 50 years ago, we sold the very first audio receiver, a high-
performance component that combined the functions of several products that
had previously been available only separately. Our mission was and is to deliver
high-fidelity sound in an easy-to-use package, and we are confident that you will enjoy
the quality and convenience of the MS 150 music system for many years to come.
The MS 150 is a complete high-performance audio system with a CD player, FM tuner,
dock for iPod/iPhone devices (not included), auxiliary inputs for other audio products and
built-in loudspeakers for a complete audio solution.
To obtain the maximum enjoyment from your new system, we urge you to read this
manual and refer back to it to familiarize yourself with the MS 150’s features and
operation.
If you have any questions about this product, its installation or its operation, please
contact your retailer or custom installer, or visit www.harmankardon.com.
Harman Kardon MS 150 High-Performance Audio
System
•Universal dock for iPod/iPhone (not included) charges most docking iPod and iPhone
models. For the latest compatibility information please visit our Web site: www.
harmankardon.com.
Slot-loaded CD player with CD, CD-R, CD-RW, enhanced CD, MP3 and WMA playback •
FM tuner with RDS text display and six presets •
Four auxiliary audio inputs: front-panel stereo mini jack (3.5mm), rear-panel stereo •
mini jack (3.5mm) for line-level or optical-digital audio, rear-panel dual RCA jacks
(line-level)
Two two-way 125mm (4-5/16") built-in bass-reflex speakers •
Subwoofer output (full-range) •
3.5mm (1/8") stereo headphone output •
Composite and S-Video outputs for photo- and video-capable • iPod/iPhone models that
support video browsing
Clock with alarm and memory backup •
Supplied Accessories
The following accessory items are supplied with the MS 150. If any of these items are
missing, please contact arman ardon customer service at www.harmankardon.com.h k
FM WIre Antenna 1m (39-3/8") male-to-male cable with 3.5mm
(1/8") stereo mini plug
Mini (3.5mm) optical-digital
audio cable (1m)
External power supply (24V,4.9A/5V,1A)
with detachable power cord
System remote control with
two AAA batteries
Detachable dock for iPod/iPhone
with five adapters
iPod/iPhone not included
