Techn ology li censed fr om AM R-Audi o, UK A ssemb led i n China
5. RCA analogue output
This is an analogue output.
6. Ground
This is the ZEN Air Phono's ground, please connect it to the
turntable's grounding wire.
7. RCA analogue input
This is the analogue input.
8. Gain channel switch
This button selects either of two gain levels:
MM: for use with MM cartridges (≥2mV)
MC: for use with MC cartridges (<2mV)
d
Please adjust the gain channel switch in accordance with your preference and your
turntable's specications.
9. DC 5V power
The ZEN Air Phono must ONLY be powered by 5 volts.
Tip: For best performance, an ultra-low noise p ower adapter such as the iFi iPower2 or
iPower X is recommended.
Thank you for purchasing the Phono from the ZEN Air series.
The ZEN Air Phono is a single-ended MM/MC phono stage.

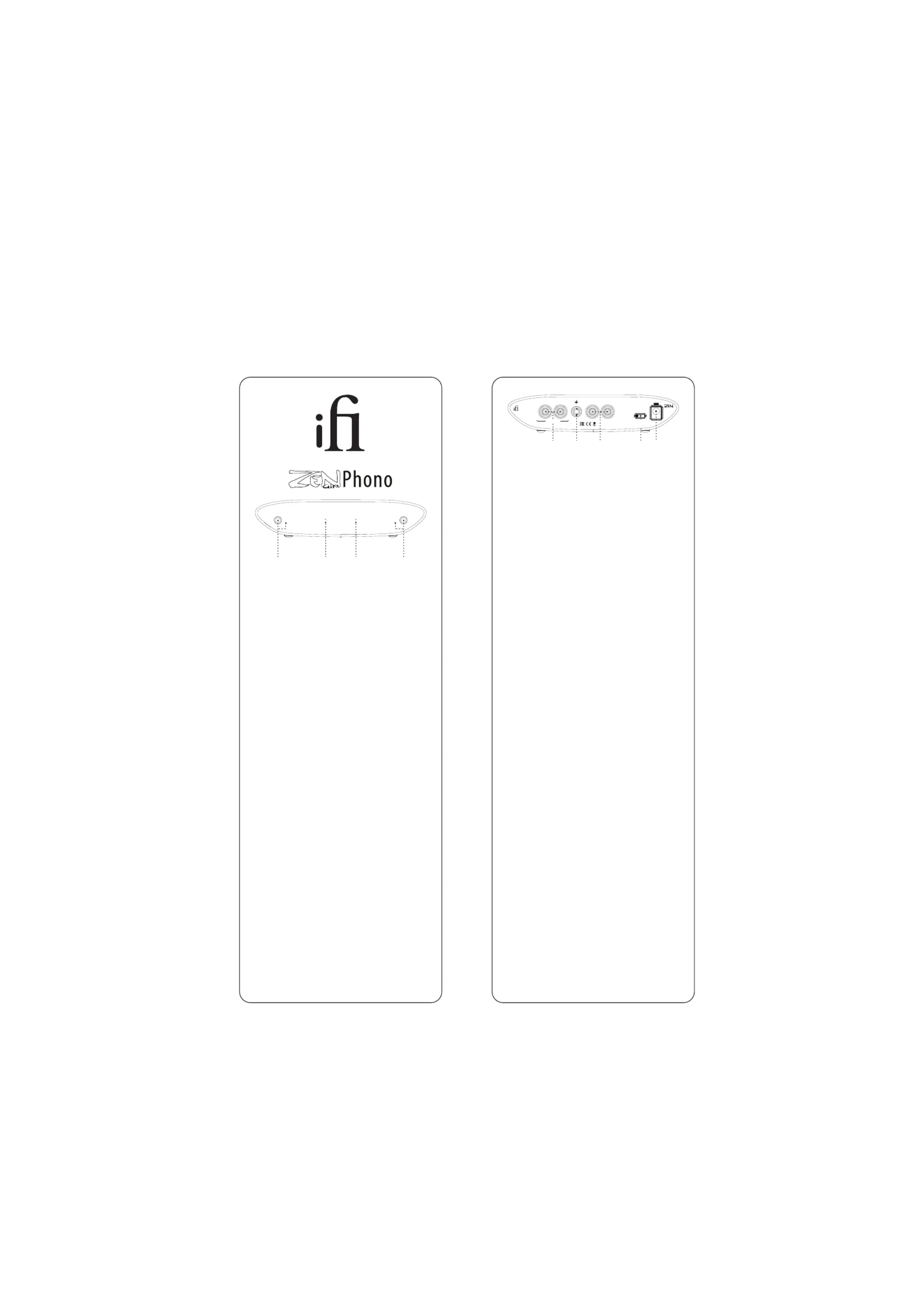

1. Power ON/OFF
This is the power switch.
Note: If the unit has been powered on for a while, you need to press the power switch
twice to turn it off. This is because the MCU goes into sleep mode for less noise, so you
get to enjoy the best sonics!
2. MM input LED
This is the MM input indication. Use this setting for MM
cartridges with output voltage 2mV and higher. Please select
MM on the gain switch at the rear.
3. MC input LED
This is the MC input indication. Use this setting for MC
cartridges with output voltage <2mV. Please select MC on
the gain switch at the rear.
4. SUBSONIC Filter ON/OFF and Gain switch
unlocked
This is the SUBSONIC filter switch (short press)
The iFi-designed subsonic filter will intelligently detect
whether a subsonic frequency is a warp or a bass note. It will
eliminate the warps and let all the bass and mid-range
frequencies pass through untouched. Therefore, it will have
little effect on the sound quality.
Gain switch function unlocked (shor t press)
To change gain after the unit has been on for more than 10
minutes, short press this switch to unlock the rear gain switch (8).
Tip: To protect your device, the gain switch (8) will enter lock mode after 10 minutes and
will need to b e unlocked each time you operate it.
Ver1.0
ifi-audio.com
SUBS ONIC
FIL T ER
MM M C
PO WER
21 43
Specifications:
Power supply requirement:
Frequency Response:
Channel Separ tion:a
Max Output Voltage RMS:
Gain:
MM:
MC
Input Impedance:
MM:
MC
O autput Imped nce:
SNR:
MM (40dB ±1dB):
MC 64dB ±1dB): (
Ein (equivalent input noise):
0 nV | /Hz (.6 unweighted)
6.5nV | /Hz (unweighted)
Total Harmonic Distortion:
MM:
MC:
Power consumption:
Dimensions:
Net weight:
Warranty period:
Specications are subject to change without notice.
DC 5V / ≥1.0A (centre +ve)
20Hz - 20kHz (±0.15dB)
> Hz a 75dB (1k ll modes)
6.5V RMS 600 (<1% THD & N)Ω
40dB
64dB
47k
1k
100Ω
86dB (A-weig teh d) re 1V
82dB (A-weighted) re 1V
MC 146dBV (A-weighted) -
MM -126dBV (A-weighted)
<-90dB / 0.005% re 1V
<-80dB / 0.036% re 1V
<1.8W
15 117 x 35 mm (6.2" x 4.6" x 1.4")8 x
320 g (0 l.71 bs)
12 mon ths
DC 5V
LR LR
Inp utOu t pu t s
MM MC
GAIN
Air
6 7 8 95
Phono
