Kramer WAV-6YC Bruksanvisning
Läs nedan 📖 manual på svenska för Kramer WAV-6YC (2 sidor) i kategorin Eluttag. Denna guide var användbar för 4 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/2

Congratulations on purchasing your Kramer Wall Plate Inserts (e pplied with the ach is su
required screws)! They are ideal for the following applications: board, conference and training
rooms, presentation systems, and home theater. Each insert can be used with the Kramer
WP Frame or with one of our TBUS products.
W- COM1
The a single insert pin sub connector 232, W-COM1 is - COM port on a 9- D- (for use with RS-
RS- - 422, and RS 485) with a terminal block at the rear.

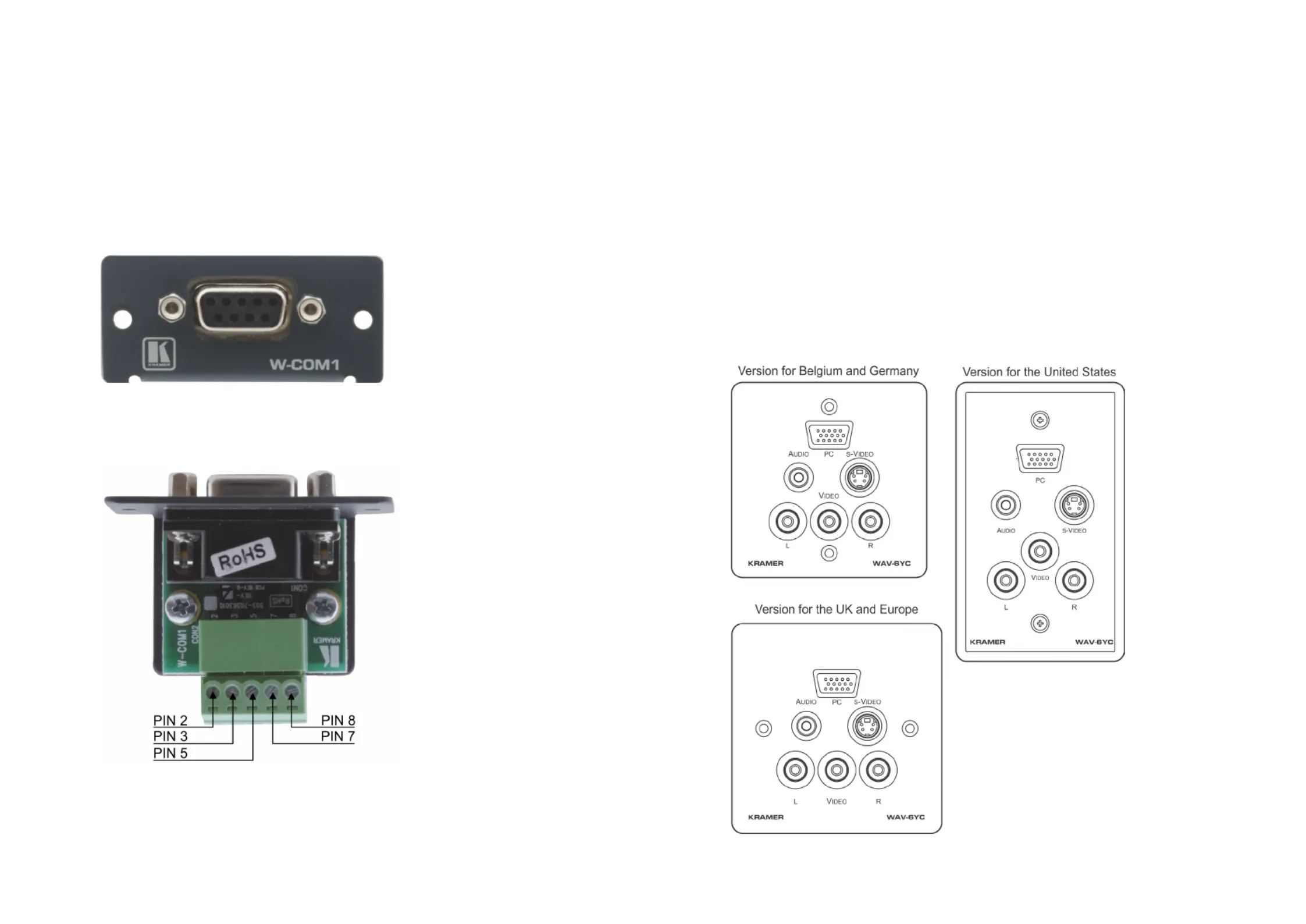

Figure Insert1 W- : COM1 Wall Plate
T he terminal block PINO is as follows:UT
Figure 2 W-: COM1 Pinout
W - AV 6YC
The WAV-6YC - is a one gang wall plate insert with pass through connectors for:
• Compu 15ter graphics video on an -pin HD connector and unbalanced stereo audio on a
3.5mm mini plug connector flush against the front panel, and a short flexible 12cm (4.7”)
cable with a 3.5 mini jack connector at the rear
• s- -p c Video on a 4 in onnector
• Composite video on a yellow RCA connector
• U nbalanced stereo audio on RCA connectors (white for L and red for R)
The aWAV-6YC is vailable in three versions: one for Belgium and Germany, one for England
and Europe (except Belgium and Germany), and one for the United States:
Figure Insert3 - : WAV 6YC Wall Plate

K RAMER ELECTRO N ICS L T D.
Wall Plate Inserts
Series
MODEL:
W- COM1
Wall Plate Insert
WAV- 6YC
Wall Plate Insert
For the latest information on our products and a list of Kramer
distributors, visit our Web site where updates to this user manual may be
found.
We welcome your questions, comments, and feedback.
Web site:
E-mail:
www.kramerelectronics.com
info@kramerel.com
!
SAFETY WARNING
Disconnect the unit from the power
supply before opening and servicing
P/N: 2900 00288 Rev -0 4
