Sida 1/15
Part no.:
| DESCRIPTION
43360

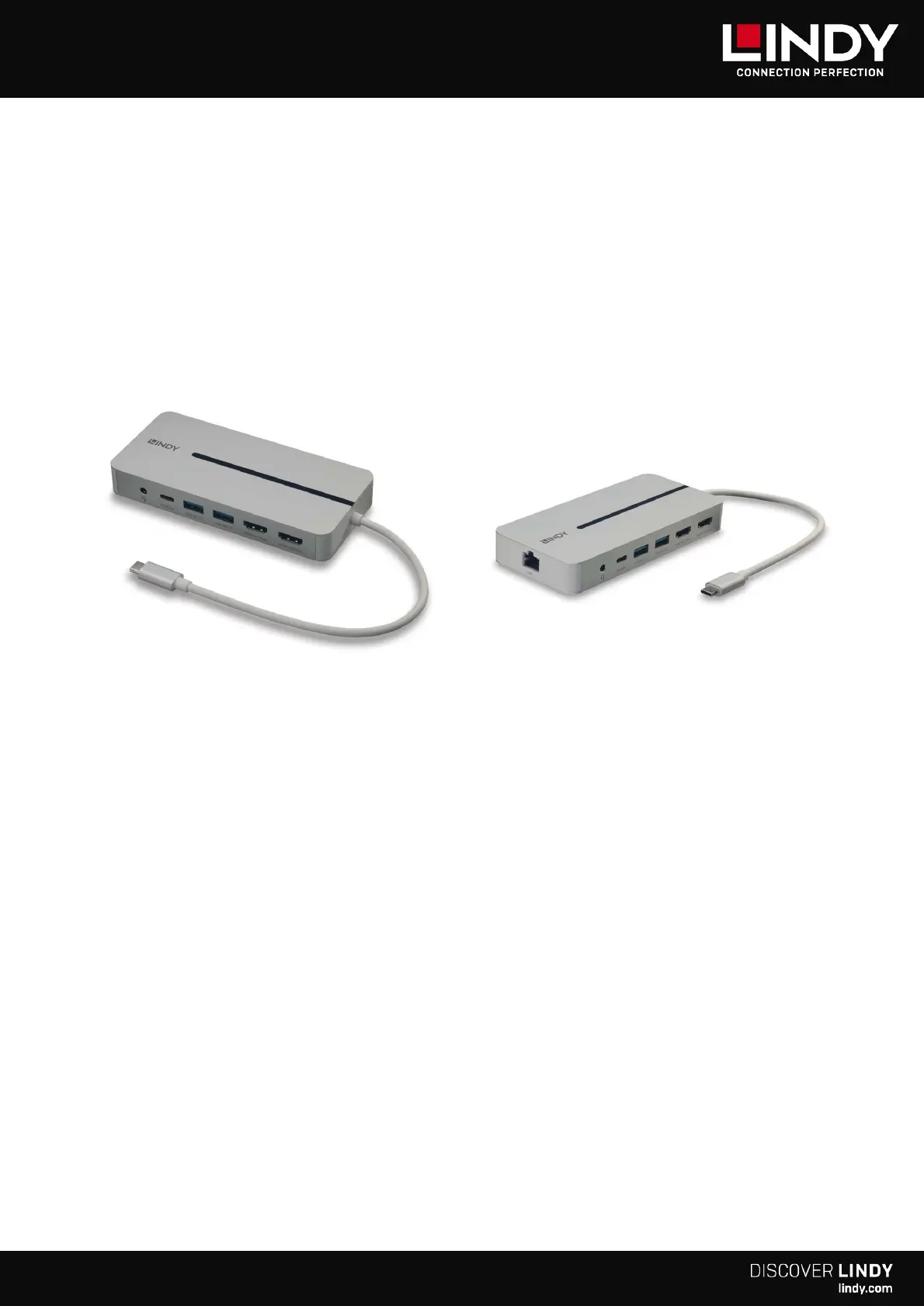

DST-Mx Duo, USB-C Laptop/MacBook Mini Docking Station with Dual
Display (4K) & 100W Pass-Through Charging
2x 4K HDMI, PD 3.0 100W, USB 3.2 Gen 1, Gigabit Ethernet, Audio
Adds Dual 4K 3840x2160 HDMI displays to Windows and Apple M1 PC’s
Provides 2 USB Type A ports & 1 USB Type C port (5Gbps), Gigabit Ethernet and an Audio combo port
Software-based Silicon solution to connect any display to any computer that supports USB
USB Power Delivery 3.0 (100W) allows charging the laptop while using the DST-Mx Duo
2-year warranty
The Lindy DST- Mx Duo is a premium solution for connecting your laptop or MacBook (including M1 & M2) to a range of
peripherals. Part of Lindy’s expert range of Laptop Docking Stations, this product has been designed with Mac users in mind.
Maximising the productivity of any creative by providing extended screen real estate with Ultra HD quality as well as SuperSpeed
data transfer for all your USB peripherals. Housed in a robust aluminium body, this docking station is reliable and compact, perfect
for travel.
Extended Displays
Unlike other docking stations, the DST-Mx Duo can support two external displays at 4k resolution with your MacBook. This is thanks
to the docks support for MST (Multi Stream Transport) for Mac. There are two HDMI ports, one with 60Hz capability and the other
with 30Hz. Simply plug in your HDMI displays and the docking station will provide Ultra HD resolution through a single USB-C
connection.
Versatile
•
•
•
•
•
| TECHNICAL DATA SHEET
Providing all the ports you will need for a productive workflow; this docking station uses a single USB 3.2 Type C cable to connect
up to two 4k HDMI displays whilst providing Gigabit Ethernet connection, Superspeed 5Gbps USB Type A ports and a 3.5mm
combined headphone jack.
Pass-through Charging
Thanks to the integrated PD 3.0 port, you can plug your USB-C charger into the docking station and experience up to 100W pass-
through charging (depending on the charger’s capabilities). This allows you to charge your device whilst working without having to
use up any more ports, meaning there is more connectivity potential for other peripherals and accessories.
Easy-to-Use
A software needs to be installed for this docking station. Download it straight from the product page, connect the docking station,
to your device and you are good to go.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB
Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications
Interface: USB Type C to 2x HDMI / 2x USB Type A / 1x USB Type C / 1x RJ45 / 1x Audio 3.5mm
Interface Standard:USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 1.4 + 2.0, Gigabit LAN, Audio (combo)
Supported Bandwidth:
10.8Gbps (HDMI 1.4), 18Gbps (HDMI 2.0), 5Gbps (USB 3.0), 10/100/100Mbps (LAN)
Maximum Input Resolution: 3840x2160@60Hz
Maximum Output Resolution:
Single display: 4K 60Hz
Dual display: 1x 4K60Hz, 1x 4K30Hz
Chipset: SM768, ANX7518, 2xVL817, AX88179A, HS-100B, IM2600
Compatibility: USB Type C or Thunderbolt 3/4 equipped computers. Windows, macOS, Linux, Android, Chrome OS.
Power Delivery: PD 3.0 up to 100W (20V 5A)
HDCP Support: HDCP 2.2
Supported Audio: Supports 48/44.1kHz audio sampling rate
Separate Audio Ports: 1x Audio combo port 3.5mm
Special Features: USB Type C Female port supports power and data, 2x Battery Charging 1.2 port, Software-based Silicon
solution to connect any display to any computer that supports USB, compatible with Windows and MacOS; MST dual display
for Apple M1 / M2
Connectors
Inputs: 1 x USB Type C (Male)
Outputs: 2x HDMI (Female), 1x RJ45 (Female), 2x USB Type A (Female), 1x USB Type C (Female) / 1x 3.5mm Audio (Female)
Power: 1 x USB Type C (Female) PD port
•
•
•
•
•
•
◦
◦
•
•
•
•
•
•
•
•
•
•
| TECHNICAL DATA SHEET
Physical Properties
Dimensions WxDxH: 140x65x20mm (5.51x2.56x0.79in)
Cale length: 0.25m (0.82ft)
Housing Material: Aluminium, ABS (RJ45 port cover)
Net Weight: 0.2kg (0.44lb)
Operating Temperature: -20°C - 40°C (-4°F - 104°F)
Storage Temperature: -40 °C - 80°C (-40°F - 176°F)
Humidity: 5 - 90% RH (non-condensing)
Power Requirements: Bus-powered
Colour: Silver, white
Miscellaneous
Packaging Type: Carton Box
Packaging Dimensions: 207x137x38mm (8.15x5.39x1.5in)
Gross Weight: 0.3kg (0.66lb)
Warranty (Years): 2
Product Compliance: CE, FCC, REACH & RoHS, CP65
Package Contents
USB-C Laptop Docking Station
Lindy Manual
Purchasing Information
No.: 43360
EAN: 4002888433600
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
| TECHNICAL DATA SHEET
Produktspecifikationer
| Varumärke: | Lindy |
| Kategori: | Annat datortillbehör |
| Modell: | 43360 |
