READ ME FIRST
QUICK INSTALL GUIDE

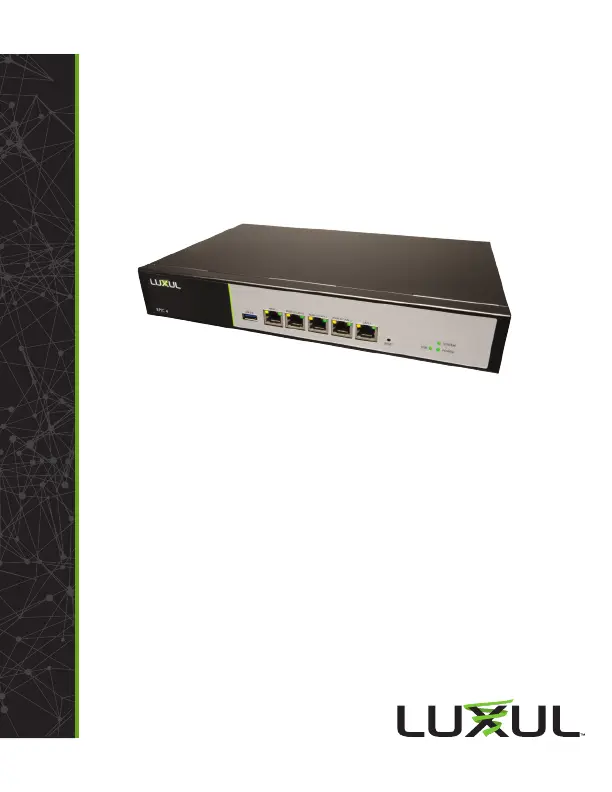

Epic 4
Multi-WAN Gigabit Router
XBR-4500
Includes:
Multi-WAN Gigabit Router
Rack Mounting Ears (2)
Rubber Feet (4)
Power Cord
SETUP AND CONFIGURATION
1
Physical Installation
The Epic 4 can be rack-mounted or used as a desktop router. Install
it in a stable/safe place to avoid any possible damage. Make sure
there is adequate space around the router for ventilation and proper
heat dissipation. Avoid placement in direct sunlight. Do not place heavy
articles on the router and verify the ground connection of the outlet
is functioning properly.
Desktop/Shelf Installation
For desktop/shelf installation, attach the four rubber feet to the corner
indentations on the bottom of the router, then place it on
a solid, level platform.
Rack Installation
Use the included L brackets for convenient installation in a 19-inch server or
AV rack. As shown below, use four screws to attach the L-shaped brackets on
either side of the router, and mount the switch horizontally in the rack. Use
your desired hardware to ax the router supports to the rack.
Install Brackets for Rack-Mounting Attach Feet for Desktop Installation
2
2
Connecting Ethernet and Power
Before installing the router, test the Internet connection to verify that it
is functioning properly. Once Internet access is confirmed to be working,
follow the steps below for installation and configuration.
Connecting Ethernet
Luxul recommends Category-5, super Category-5 or Category-6 unshielded
twisted pair (CAT5/CAT5e/CAT6 UTP). To ensure best performance and
stable data transmission at 1000 Mbps, use Category-6 shielded twisted pair.
1. Connect the WAN: Connect the Internet cable from a telco/ISP
modem/router to the dedicated WAN 1 port on the router.
2. Connect the LAN: Connect a cable from the dedicated LAN 1 port on
the router to a switch, access point, or computer.
For best performance, and to maximize available ports, Luxul recommends
connecting all LAN devices to a Luxul switch, then connecting that switch
to the Epic 4 LAN port via a single Ethernet cable.
nNOTE: WAN 1 and LAN 1-4 are configured by default. The router
must be configured to provide additional WAN ports.
nNOTE: Connect all LAN devices to a Luxul switch, then connect that
switch to the router for best results.
Connecting Power
Use the included power cable to connect the router to a surge-protected
outlet. The AC input socket and power switch are on the rear panel. The
built-in power supply supports 100~240VAC at 50/60Hz.
