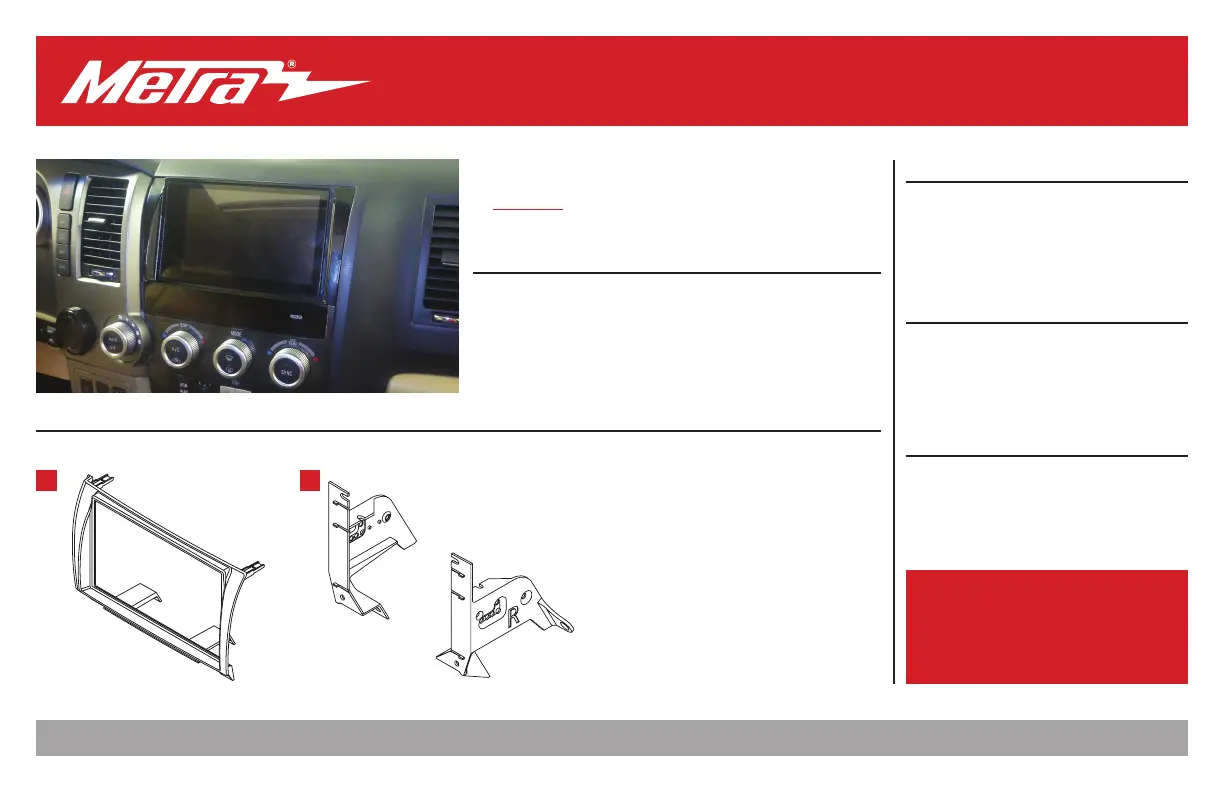

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 8/28/19 INST108-TO1
I N S TA L L AT I O N I N S T R U C T I O N S
108-TO1
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Patent Pending
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• 108-TO1B - Painted scratch resistant matte black
• 108-TO1HG - Painted high gloss black
• 108-TO1CHG -Painted high gloss charcoal (matches 2010-up)
KIT COMPONENTS
• A) Radio housing • B) Radio brackets TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench
TABLE OF CONTENTS
Dash Disassembly
-With console shifter ..........................................2-3
-With column shifter .........................................4-5
Kit Assembly ..........................................................6
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: Please visit metraonline.com
for wiring harness options
Antenna Adapter: Please visit metraonline.com
for antenna adapter options
A B
Toyota Sequoia , Tundra 2008-up 2007-2013
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY
With console shifter
1. Unclip and remove the trim panel
around the cup holders. (Figure A)
2. Remove (1) Phillips screw securing
the shifter trim panel, then unclip and
remove the panel. (Figure B)
3. Unclip, unplug and remove the climate
control assembly. (Figure C)
Continued on the next page
(Figure A) (Figure C)(Figure B)
REV. 8/28/2019 INST108-TO1 3
DASH DISASSEMBLY (CONT.)
(Figure D) (Figure E)
4. Remove (4) 10mm screws securing the
bottom of the radio. (Figure D)
5. Unclip the right side of the instrument
panel trim to allow room for the radio to
be removed in the following step.
6. Unclip the radio from the dash. Slide
the radio out, then unplug and remove
radio. (Figure E)
Continue to Kit Assembly
