Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/12/24 INST99-8274
I N S TA L L AT I O N I N S T R U C T I O N S
99-8274
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.

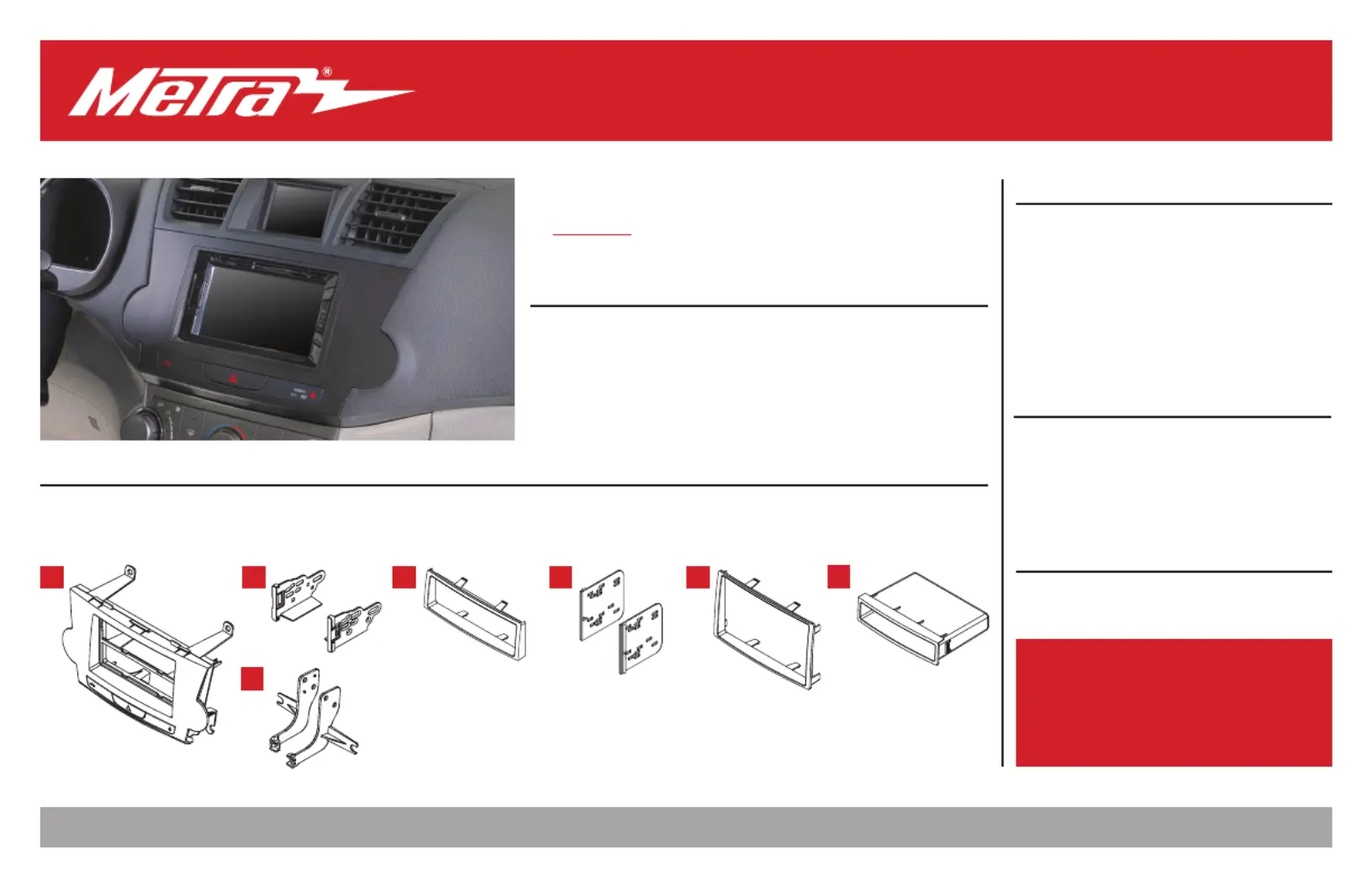

KIT FEATURES
KIT COMPONENTS
• A) Radio housing • B) ISO DIN brackets • C) ISO DIN trim plate • D) ISO DDIN brackets • E) ISO DDIN trim plate • F) Pocket • G) Radio housing brackets
• H)
Hazard button harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Cutting tool • 10mm socket wrench
TABLE OF CONTENTS
Dash Disassembly...................................................2
Kit Preparation....................................................3-4
Kit Assembly
–DIN radio provision with pocket.........................5
–ISO DIN radio provision with pocket...................6
–ISO DDIN radio provision......................................7
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-1761
See AXXESSINTERFACES.COM for all interface
solutions.
Antenna Adapter: Not required
A B C F
G
D E
Toyota Highlander (with factory NAV) 2008-2012
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Hazard button with passenger airbag and security light assembly included.
• Painted to match factory dash: 99-8274B = Black, 99-8274BR = Brown
386.257.1187
|
MetraOnline.com
2

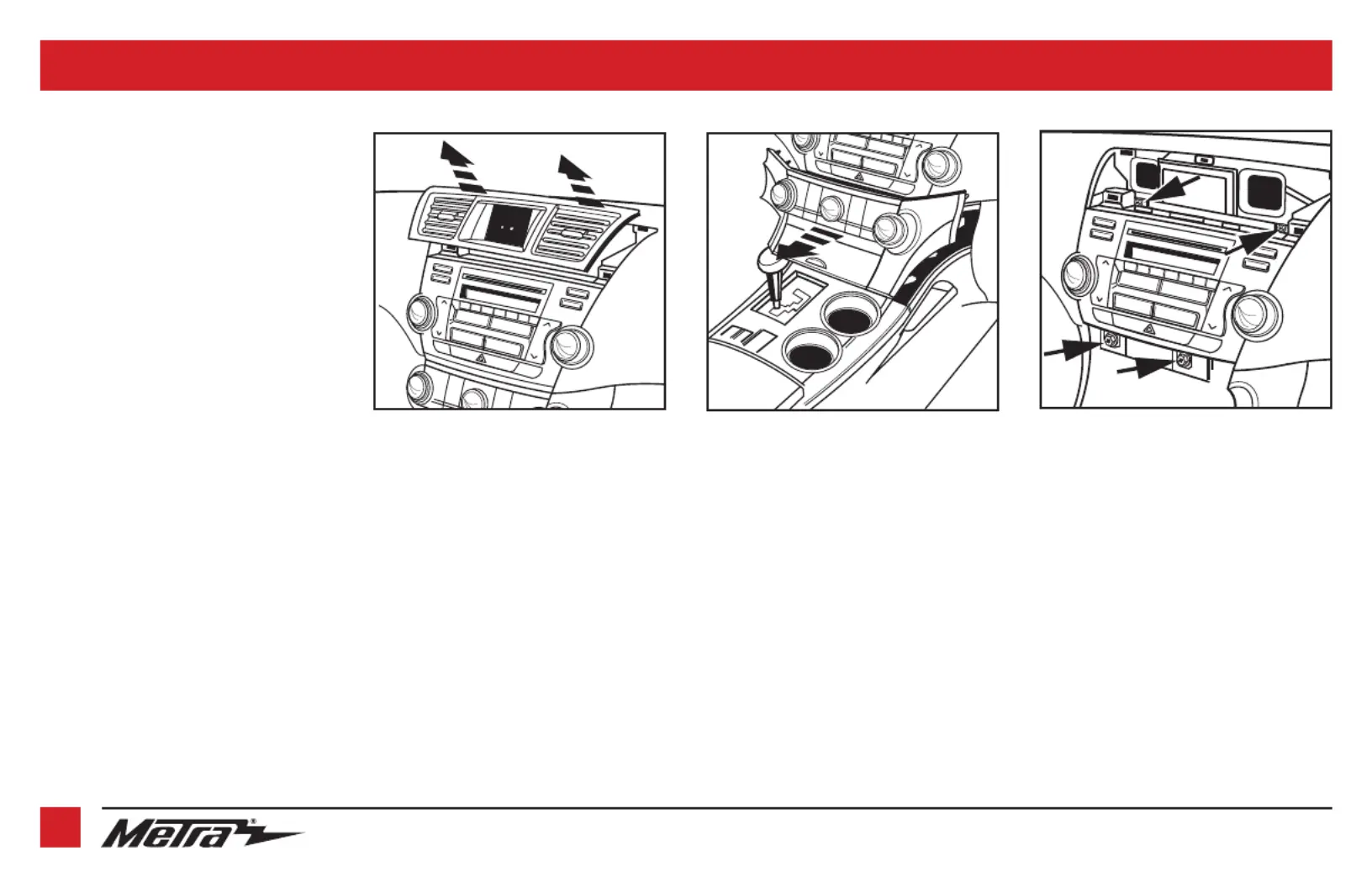

1. Unclip and remove the a/c vent panel.
(Figure A)
2. Unclip, unplug, and remove the climate
control panel. (Figure B)
3. Remove (4) 10mm bolts securing the
radio. Slide the radio out, then unplug
and remove the radio/display assembly.
(Figure C)
Note: Non-NAV radio shown in dash
disassembly drawings
Continue to Kit Preparation
DASH DISASSEMBLY
(Figure A) (Figure B) (Figure C)
REV. 11/12/2024 INST99-8274 3

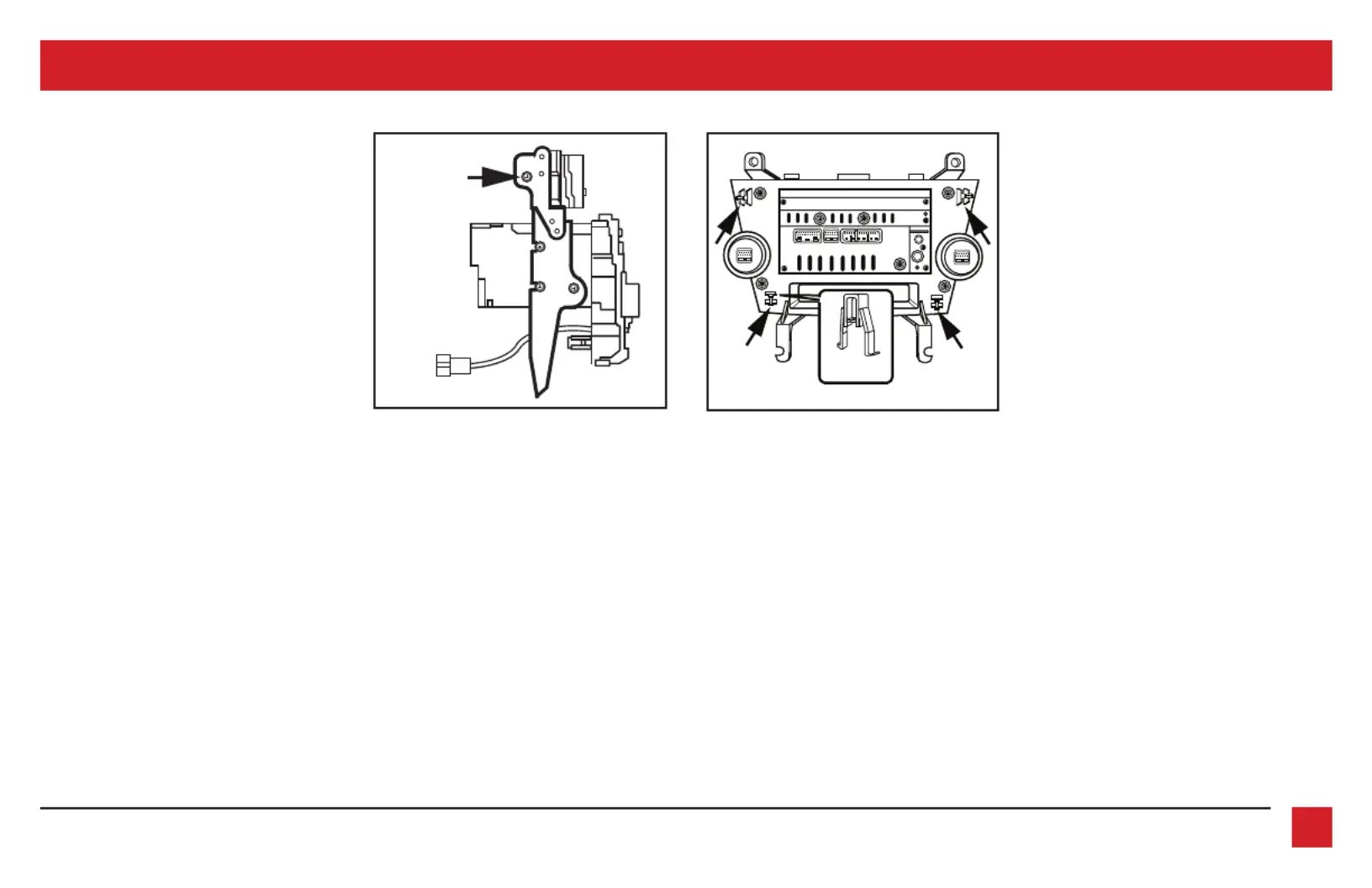

From the factory radio/display assembly:
1. Remove (2) Phillips screws securing the
display panel, then remove. (Figure A)
2. Remove (4) panel clips. (Figure B)
Continued on the next page
KIT PREPARATION
ONE
SCREW
ON EACH
SIDE
SIDE VIEW
CLOCK/DISPLAY-
RADIO ASSEMBLY
REMOVE
4 PANEL CLIPS
(Figure A) (Figure B)
