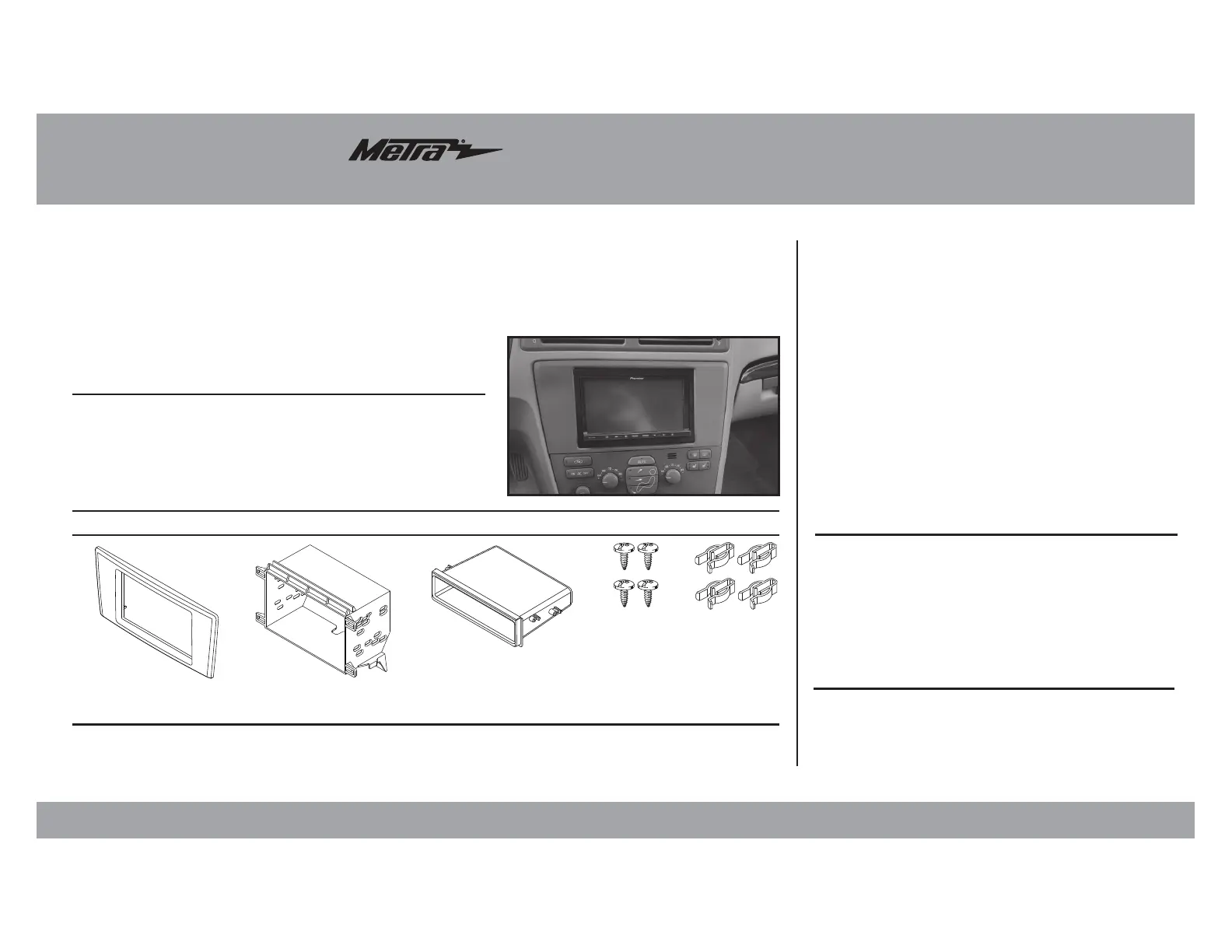

REV. 5/1/2017 INST99-9230G

INSTALLATION INSTRUCTIONS FOR PART 99-9230G

CAUTION!

All accessories, switches, climate controls panels,

and especially air bag indicator lights must be connected before

cycling the ignition. Also, do not remove the factory radio with

the key in the on position, or while the vehicle is running.

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Painted gray to match factory finish

• A) Radio trim panel • B) Radio housing • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (4) Panel clips

20;-,(;<9,:

20;*64765,5;:

• Panel removal tool • Phillips screwdriver

• T-25 Torx driver

;663:9,8<09,+

Volvo S80 1999-2006

99-9230G

Table of Contents

Dash Disassembly ................................................. 2

Kit Assembly

– ISO DIN radio provision with pocket ...................... 3

– ISO DDIN radio provision ...................................... 3

A B C D E

>0905.(5;,55(*655,*;065: (sold separately)

Wiring Harness: • 70-9221 • 70-9223 (amplified models)

Antenna Adapter: • 40-VL10

99-9230G

Dash Disassembly

1. Unsnap the gear shifter trim panel.

(Figure A)

2. Unsnap the gear shifter boot to

separate it from the gear shifter

trim panel and remove the trim

panel. (Figure B)

3. Remove (2) T-25 Torx head

screws from bottom of the climate

controls. (Figure C)

4. Unsnap the climate controls from

bottom edge of the radio. Unplug

and remove the climate controls.

(Figure D)

5. Remove (2) T-25 Torx head screws

from bottom of the radio. Unplug

and remove the radio. (Figure E)

Continue to Kit Assembly

(Figure C)

(Figure A) (Figure D)

VOLT

AUTO

ON AC OFF 64

68 72 76

80 64

68 72 76

(Figure B) (Figure E)

VOLT

99-9230G

Kit Assembly

ISO DIN radio provision with pocket

1. Secure the pocket radio housing to the

using (4) #8 x 3/8” Phillips screws provided.

(Figure A)

Note: Rounded edge of pocket faces

towards the bottom.

2. Remove the metal DIN sleeve and trim ring

from the aftermarket radio.

3. Slide the radio into the completed assembly,

and then secure it to the assembly using

screws supplied with the radio. (Figure A)

4. Locate the factory wiring harness and

antenna connector in the dash, and

complete all necessary connections to the

radio. Metra recommends using the proper

mating adapter from Metra and/or AXXESS.

Test the radio for proper operation.

5. Reassemble the dash in reverse order

of disassembly.

6. Attach (4) panel clips supplied to the radio

trim panel, and then snap the panel over

the radio.

ISO DDIN radio provision

1. Slide the radio into the radio housing and

secure it using screws supplied with the

radio.

(Figure A)

2. Locate the factory wiring harness and

antenna connector in the dash, and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra and/or

AXXESS. Test the radio for

proper operation.

3. Reassemble the dash in reverse order of

disassembly.

4. Attach (4) panel clips supplied to the

radio trim panel, and then snap the panel

over the radio.

(Figure A) (Figure A)
