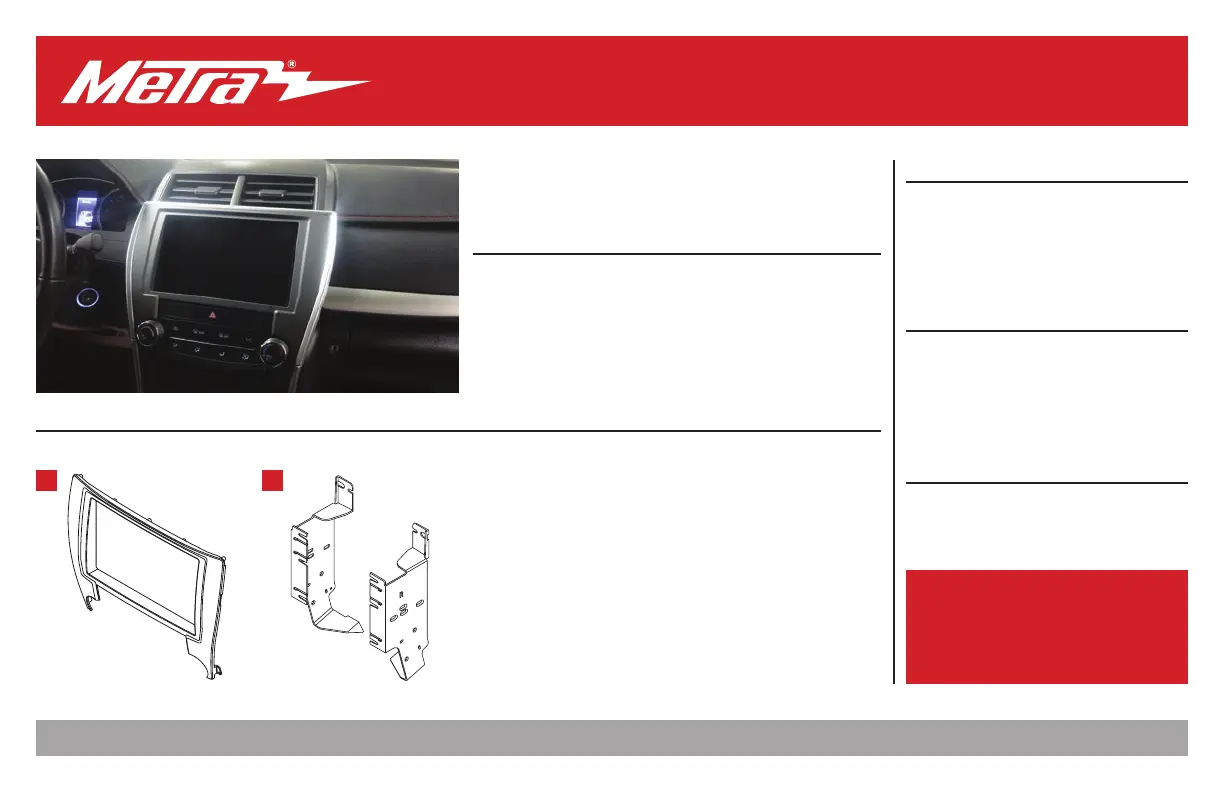

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 11/22/19 INST108-TO4
I N S TA L L AT I O N I N S T R U C T I O N S
108-TO4
Patent Pending
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Built and painted in multiple colors to match the factory
color and appearance
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................4
Kit Assembly ..........................................................5
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wire Harness: 70-1761 • TYTO-02 (amplified models)
Antenna Adapter: 40-LX11
Steering Wheel Control Interface: ASWC-1
A B
Toyota Camry 2015-2017
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY
1. Unclip and remove the console storage
tray. (Figure A)
2. Push down on the collar below the shift
knob, then unscrew the shift knob.
(Figure B)
3. Remove (2) Phillips screws from the
shifter trim, then unclip and remove the
trim. (Figure C)
Continued on next page
(Figure A) (Figure B) (Figure C)
REV. 11/22/2019 INST108-TO4 3
DASH DISASSEMBLY
(CONT)
4. Remove (2) Phillips screws securing the
factory pocket, then unclip and remove
the pocket. (Figure D)
5. Unclip and remove the vent panel above
the radio. (Figure E)
6. Remove (4) 10mm screws securing the
radio/climate control panel (2 above and
2 below). (Figure F)
7. Slide the radio and climate control
assembly out, then unplug and remove.
Continue to Kit Preparation
(Figure D) (Figure E) (Figure F)
