Sida 1/2
Match wires below to the matching function
of each wire on your receiver (refer to
instructions supplied with receiver).
The wire colors of your new receiver may, or
may not, match the wire colors of the
adaptor. Match adaptor and receiver wires
by function, disregarding color.
If your receiver does not have a Dimmer or
Illumination wire, tape off the Orange wire.
Connect the Black wire to Ground wire of
new receiver.
Individually tape off any unused wires.
Make final wiring connections following
instructions on the next page.

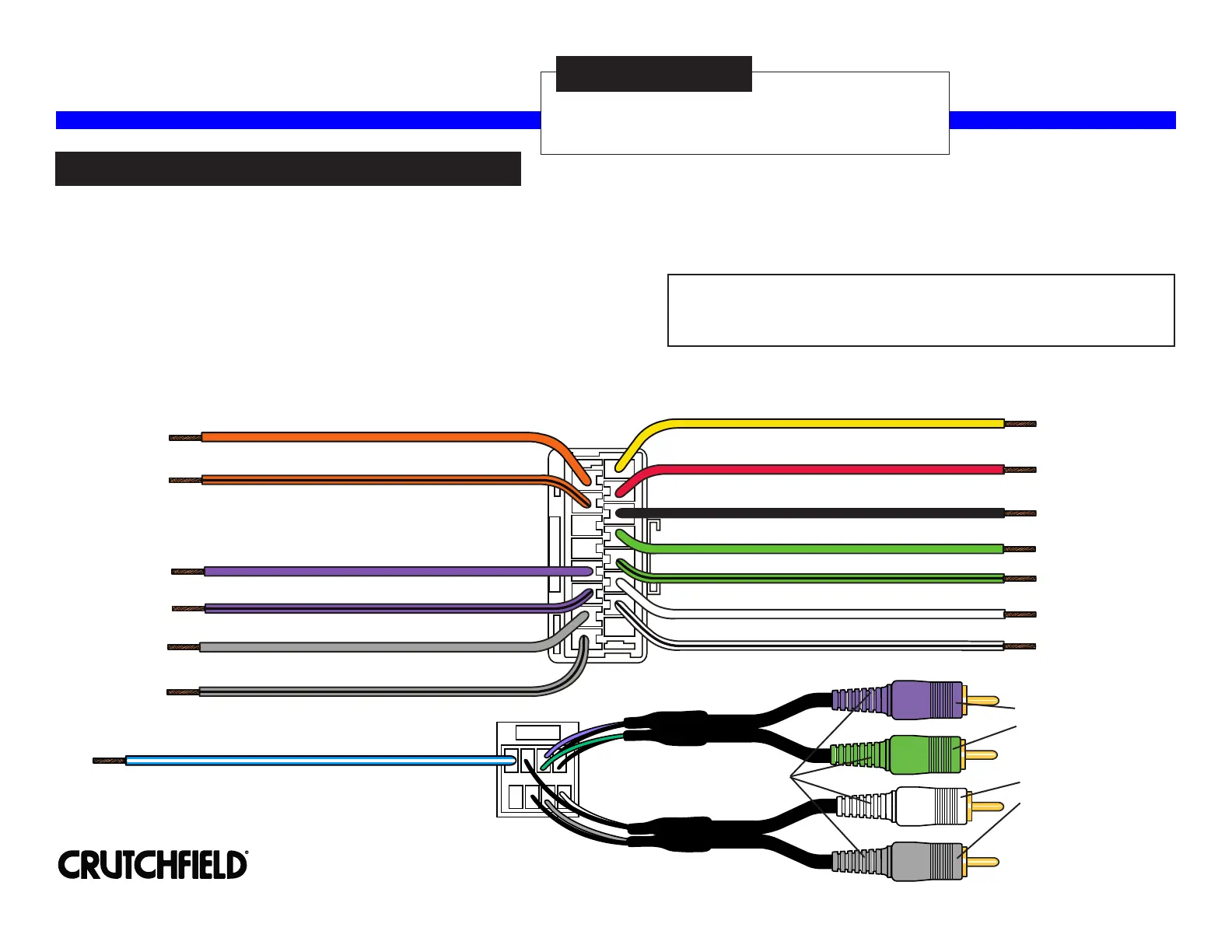

Receiver Wiring Adaptor
120 70-5518
Revision 07/26/12
White - (Not Used - Tape Off)
Violet/Black - Right Rear Speaker Negative
Red - 12 Volts Switched Power
Violet - Right Rear Speaker Positive
Green - Left Rear Speaker Positive
Yellow - 12 Volts Constant Power
Gray - (Not Used - Tape Off)
Gray/Black - (Not Used - Tape Off)
Green/Black - Left Rear Speaker Negative
Orange - Illumination
White/Black - (Not Used - Tape Off)
Orange/Black - (Not Used - Tape Off)
Black - Chassis Ground
STEP 1 -- CONNECT WIRES
STEP 2 -- INSTALL
Plug housings into factory harnesses in vehicle.
*120705518*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials.
If an item is missing, please call:
Crutchfield
Black/White - Amplifier Ground
Copyright 2012 Crutchfield Corporation
R
Front Speakers
Subwoofer
Blue/White - Amplifier Turn-On
White (Left)
Gray (Right)
Violet
Green
at 1-888-955-6000
Receiver Wiring Adaptor Connections
120 70-5518
Page 2
STEP 2 -- CONTINUED
A. Strip wires back 1/2”.
B. Twist wires together and
insert in crimp cap.
C. Squeeze middle of cap
for tight connection.
Copyright 2012 Crutchfield Corporation
R
STEP 3 -- APPLICATION
When ready to install the receiver, plug
the Wiring Adaptor from the new receiver
or receiver assembly into the factory
radio harness(es) in the vehicle dash.
D. Complete crimp connections
for all necessary wires.
E. Be sure to wrap any wires from
the Wiring Adaptor that are
not necessary (wires with no
match from the new receiver)
with electrical tape.
STEP 2 -- CRIMP CONNECTIONS
Tools & Parts
Required
Wire Stripper/Crimp Tool Crimp Caps
Unused Wire (Taped Off)
Receiver Wiring Adaptor
Generic Illustration
Generic Illustration
