Receiver Wiring Adaptor
120 70-5701
Revision 10/20/16
STEP 1 -- MATCH & CONNECT WIRES
*120705701*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call Crutchfield at 1-888-955-6000.

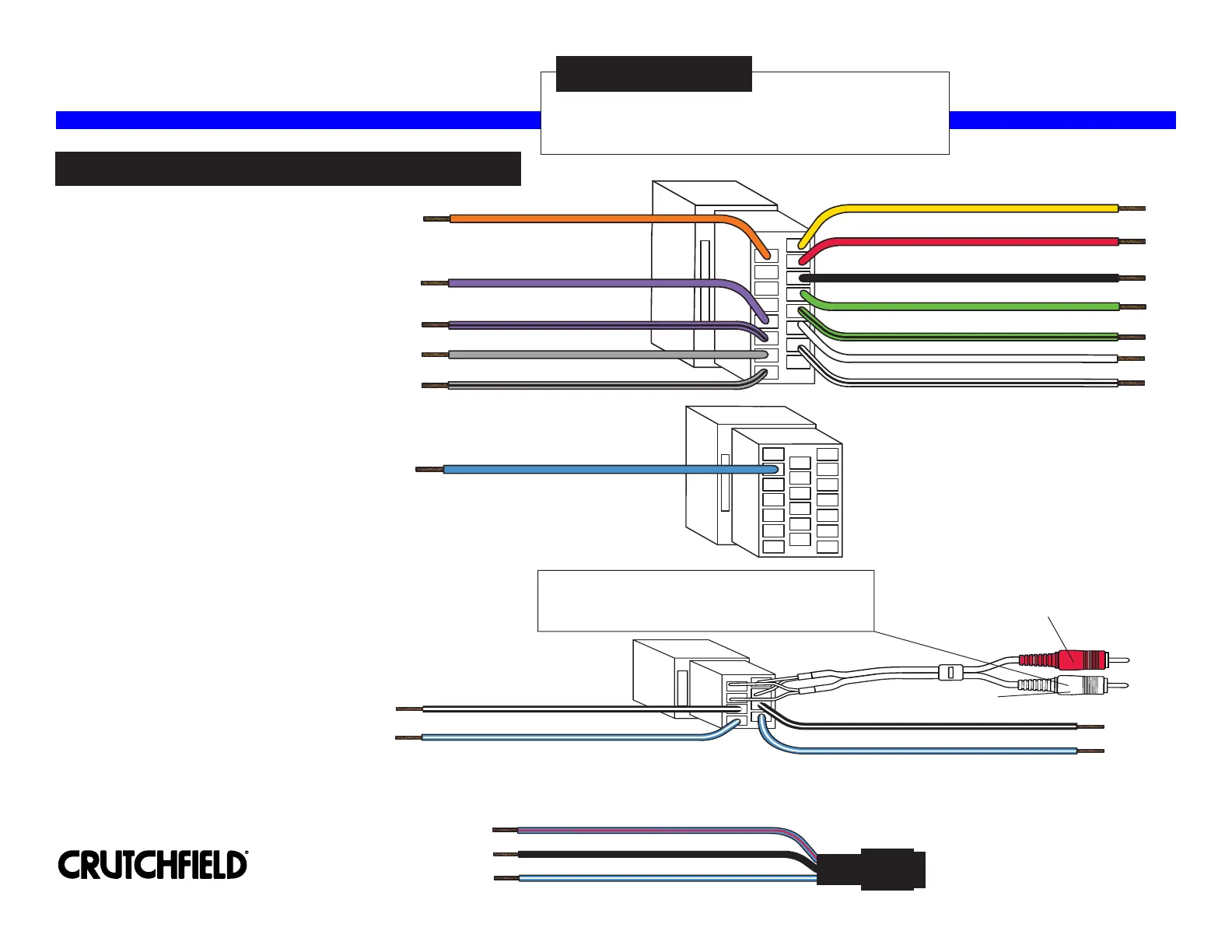

Blue - Power Antenna
Red - 12 Volts Switched Power
Black - Chassis Ground
Yellow - 12 Volts Constant Power
Orange - Illumination
White - Left Front Speaker Positive
Gray - Right Front Speaker Positive
Green - Left Rear Speaker Positive
Violet - Right Rear Speaker Positive
Gray/Black - Right Front Speaker Negative White/Black - Left Front Speaker Negative
Green/Black - Left Rear Speaker Negative
Violet/Black - Right Rear Speaker Negative
Connect wires below to the matching
function of each wire on your receiver
(refer to instructions supplied with
receiver). The wire colors of your new
receiver may, or may not, match the wire
colors of the adaptor. Match adaptor
and receiver wires by function,
disregarding color.
Your receiver illumination wire could be
Orange or Orange/White. As with other
wires, match this wire to the illumination
wire in the harness by function, not by
color. If your receiver does not have an
illumination wire, tape off the illumination
wire.
Connect the Black wire to the Ground
wire of new receiver.
Connect all Black/White wires together
and secure to chassis of the new
receiver.
Individually tape off any unused wires.
Make final wiring connections following
instructions on the next page.
Subwoofer Input
For best results, the White RCA plug should be
connected to the subwoofer preamp output on
the new receiver.
RED
WHITE
Center Channel Input (2000-'02 Lincoln LS only)
Subwoofer Input for Mustang
Blue/Red - Connects to both Blue/White
Wires on Amp/Sub harness
Black - Chassis Ground
Blue/White - Connects to Blue/White Amp Remote Wire from receiver
120AFDI5V Converter (packaged separately if required)
Black/White - Amplifier Ground
Blue/White - Amplifier Turn-On Black/White - Amplifier Ground
Blue/White - Amplifier Turn-On
Amp/Sub Harness
Copyright 2016 Crutchfield Corporation
Receiver Wiring Adaptor Connections
120 70-5701
Page 2
A. Strip wires back 1/2”.
B. Twist wires together and
insert in crimp cap.
C. Squeeze middle of cap
for tight connection.
STEP 2 -- CRIMP CONNECTIONS
Tools & Parts
Required
Wire Stripper/Crimp Tool Crimp Caps
Copyright 2016 Crutchfield Corporation
STEP 3 -- APPLICATION
When ready to install the receiver, plug
the Wiring Adaptor from the new receiver
or receiver assembly into the factory
radio harness(es) in the vehicle dash.
D. Complete crimp connections
for all necessary wires.
E. Be sure to wrap any wires from
the Wiring Adaptor that are
not necessary (wires with no
match from the new receiver)
with electrical tape.
Unused Wire (tape over bare wires)
Receiver Wiring Adaptor
Generic Illustration
Generic Illustration
