Receiver Wiring Adaptor
120 70-7553
Revision 05/26/20

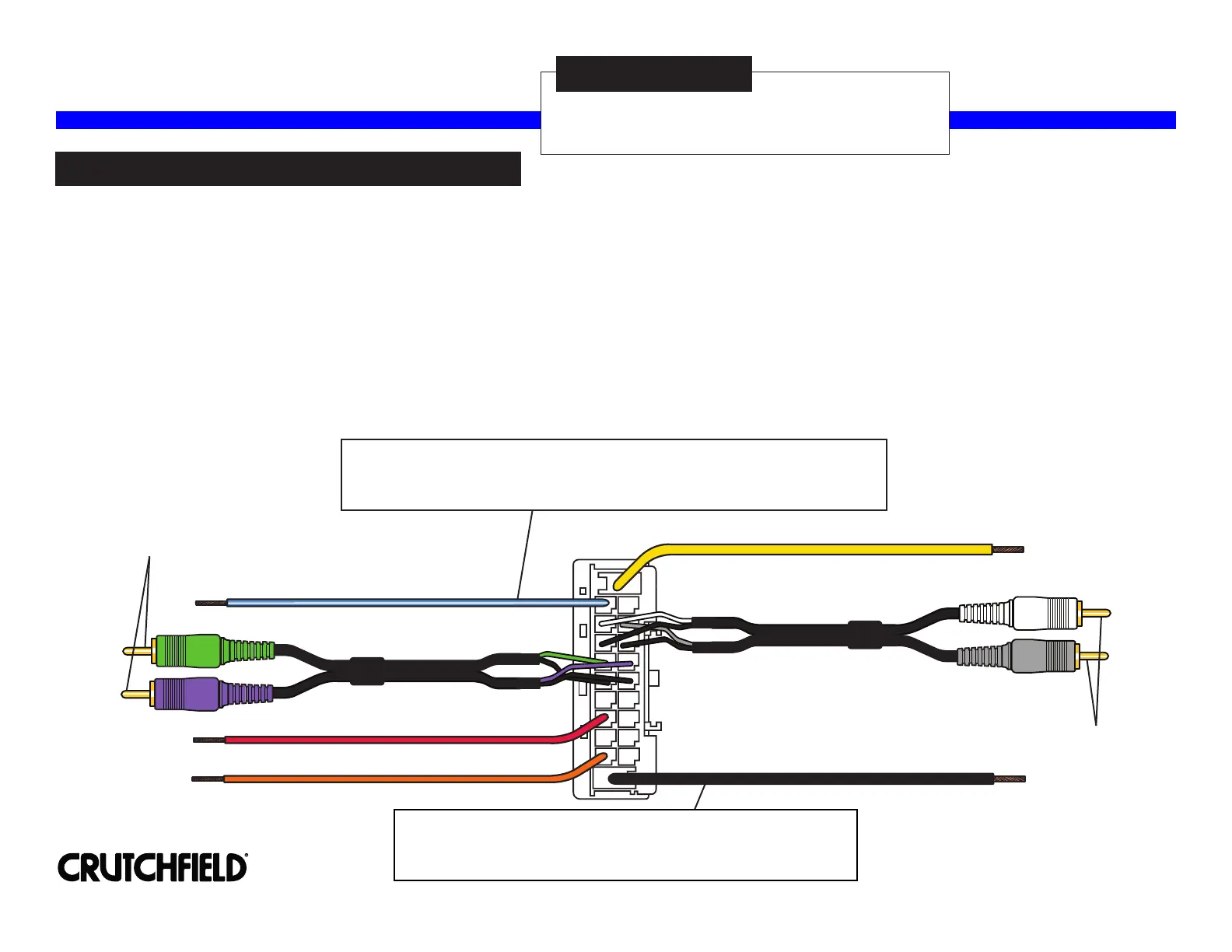

STEP 1 -- MATCH & CONNECT WIRES
*120707553*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call Crutchfield at 1-888-955-6000.
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your new
receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Individually tape off any unused wires.
See specific connections on pages 2 and 3 for the Amplifier Turn-On or Remote wire in Subaru vehicles with Harman Kardon.
Make final wiring connections following instructions on page 4.
A.
B.
C.
Orange - Illumination
Yellow - 12 Volts Constant Power
White - Left Front Signal Input
Blue/White - Amplifier Turn-On
Violet - Right Rear Signal Input
Green - Left Rear Signal Input
Gray - Right Front Signal Input
Black - Chassis Ground
Connect to RCA outputs on receiver
Red - 12 Volts Switched Power
Connect to RCA outputs on receiver
Copyright 2020 Crutchfield Corporation
Subaru Vehicles: The Blue/White wire matches up with the factory antenna booster in your
vehcle. Connect your receiver's power antenna wire or amp turn-on wire to this wire. Also,
splice the receiver's amp turn-on wire to the wire in the factory harness shown on page 2
or 3 based on the model vehicle you have.
Nissan Vehicles:
Connect the Ground Wire from the receiver to the vehicle chassis.
One of the screws or bolts securing the receiver assembly to the
dash is a good location.
D.
Receiver Wiring Adaptor
120 70-7553
STEP 1 -- MATCH & CONNECT WIRES (continued)
Page 2
Copyright 2020 Crutchfield Corporation
2015 Subaru WRX with Harman Kardon and without navigation only:
Must splice the Amplifier Remote wire from the new receiver to the Pink wire
in pin 5 of the 16-pin factory harness at the radio.
Pink Wire in factory harness
Factory Harness
4
Amplifier Remote wire from new receiver
(Blue/White or Blue - check receiver manual
and match by function rather than color)
Light Blue Wire in factory harness
Factory Harness
2014-'18 Subaru Forester with Harman Kardon and without navigation only:
Must splice the Amplifier Remote wire from the new receiver to the Light Blue Wire
in pin 5 of the 16-pin factory harness at the radio.
4
Amplifier Remote wire from new receiver
(Blue/White or Blue - check receiver manual
and match by function rather than color)
2010-'12 Subaru Legacy and Outback with Harman Kardon:
Must splice the Amplifier Remote wire from the new receiver to
the Pink wire in pin 23 of the 24-pin factory harness at the radio.
Pink Wire in factory harness
Factory Harness
4
Amplifier Remote wire from new receiver
(Blue/White or Blue - check receiver manual
and match by function rather than color)
Receiver Wiring Adaptor
120 70-7553
STEP 1 -- MATCH & CONNECT WIRES (continued)
Page 3
Copyright 2020 Crutchfield Corporation
