Pontiac
102.7
1
1
1
102.7
02.7
02.7
02.7

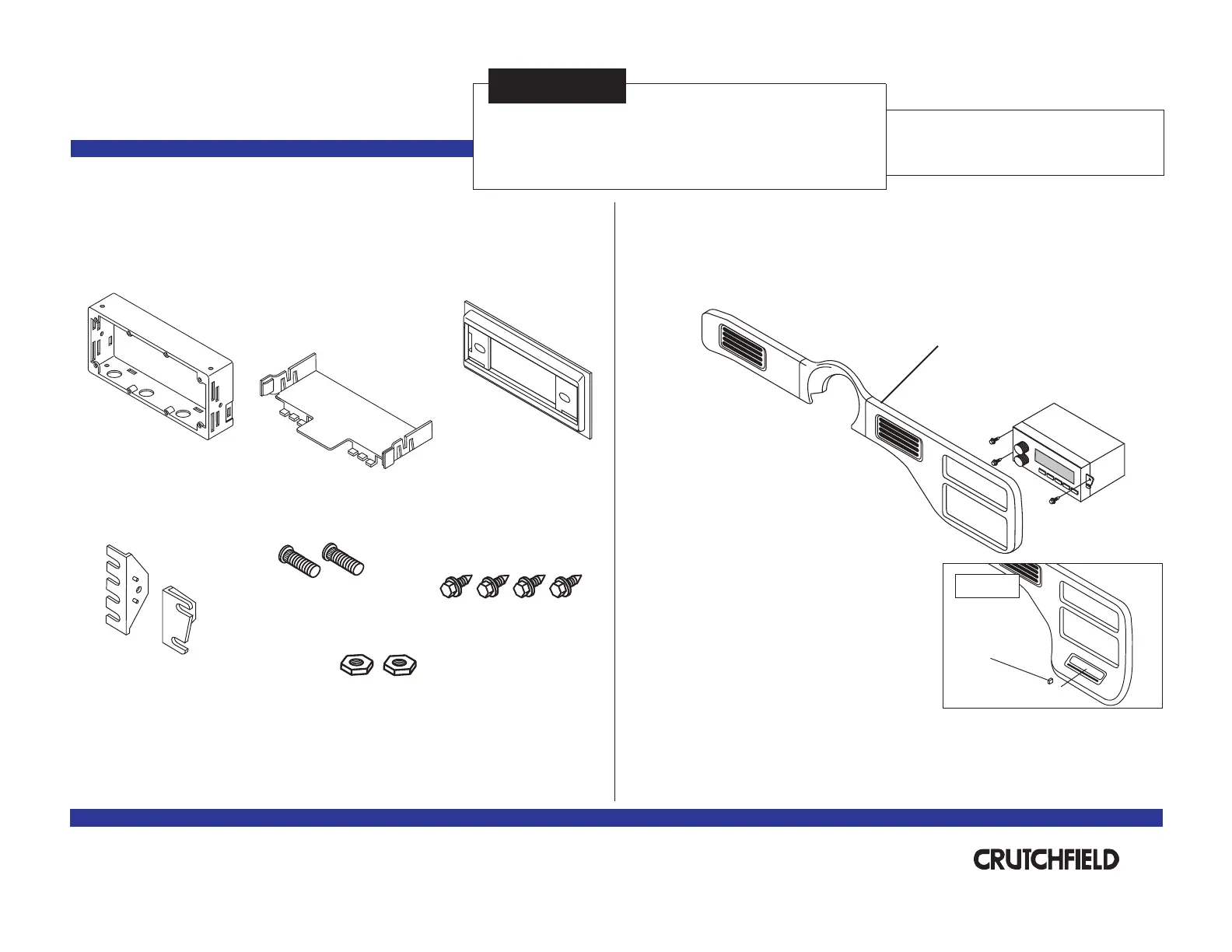

IMPORTANT
Installation Kit
120 91-3520P
Before starting, compare items on your invoice with items
received. Carefully check through packaging material.
If an item is missing, please call:
Crutchfield
Parts Supplied:
Kit Frame
Support Tray
Revision 10/31/03
Kit assembly instructions are on the following pages.
Page 1 of 3
®
Copyright 2003 Crutchfield Corporation
*120913520P*
Mounting Brackets
Left
Right
(2) Studs
(2) 3/8” Nuts
(4) 1/4” Hex Screws
Trimplate
Factory Radio Removal:
1. Disconnect negative battery
cable to prevent any electrical short.
2. Move column shift down for better
access to receiver trimpanel. Tilt
steering wheel to lowest position.
3. Pull out edges of receiver trimpanel to
release retaining clips. If SSEi version:
Remove knob and disconnect sub gain
switch (Inset). Remove trimpanel.
4. Remove three (3) 9/32” screws securing
radio to dash.
5. Pull out radio, disconnect and remove.
Receiver Trimpanel
SSEi version
Sub Gain Switch
Knob
INSET
at 1-888-955-6000
FIGURE 2
Shaft Supports
Installation Kit
120 91-3520P
Pontiac
1. Press posts on trimplate into holes on kit frame to snap
parts together and secure with hex screws (Figure 1).
2. Use a utility knife to cut out in trimplate to shaft supports
create a DIN opening (Figure 2).
3. Push clips on into slots on rear of kit frame support tray
to secure (Figure 1).
4. Secure right and left to sides of kit mounting brackets
frame with studs nutsand supplied (Figure 1).
5. Remove DIN sleeve from receiver and slide into
opening in trimplate. Secure sleeve to trimplate by
bending the securing tabs (Figure 3).
6. Slide receiver into sleeve/kit assembly.
DIN Receiver Assembly
2
®
Copyright 2003 Crutchfield Corporation
Securing Tabs
DIN Sleeve
Bend tabs after sleeve
is inside assembly.
FIGURE 1
Trimplate
Kit Frame
Support TrayLeft Mounting Bracket
Stud
Nut
Right Mounting Bracket
FIGURE 3
Hex Screws
Tools Required
Utility
Knife
▲
Small Flat Blade
Screwdriver
1/4” & 3/8”
Sockets
Installation Kit
120 91-3520P
Pontiac
Spacers
(supplied with
your order)
1. Press posts on trimplate into holes on kit frame to
snap parts together and secure with hex screws
(Figure 1).
2. Push clips on into slots on rear of kit framesupport tray
to secure (Figure 1).
3. Secure right and left to sides of kit mounting brackets
assembly with supplied (Figure 1).studs and nuts
4. Choose the proper spacers (supplied with your order) to
allow receiver nosepiece to extend 1/8” to 1/4” beyond
face of trimplate (Figure 2).
5. Insert receiver shafts (with spacers in place) through
openings in trimplate. Secure receiver and faceplate
with shaftnuts supplied with receiver.
6. Attach control knobs.
1/8” -1/4”
▲
▲
Spacer
Shaft Receiver Assembly
3
FIGURE 2
Shaftnuts
®
Copyright 2003 Crutchfield Corporation
FIGURE 1
Trimplate
Kit Frame
Support Tray
Left Mounting Bracket
Faceplate
Control Knobs
Tools Required
▲
Deep Socket
(size depends upon receiver)
Stud
Nut
Right Mounting Bracket
1/4” & 3/8”
Sockets
Hex Screws
