CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

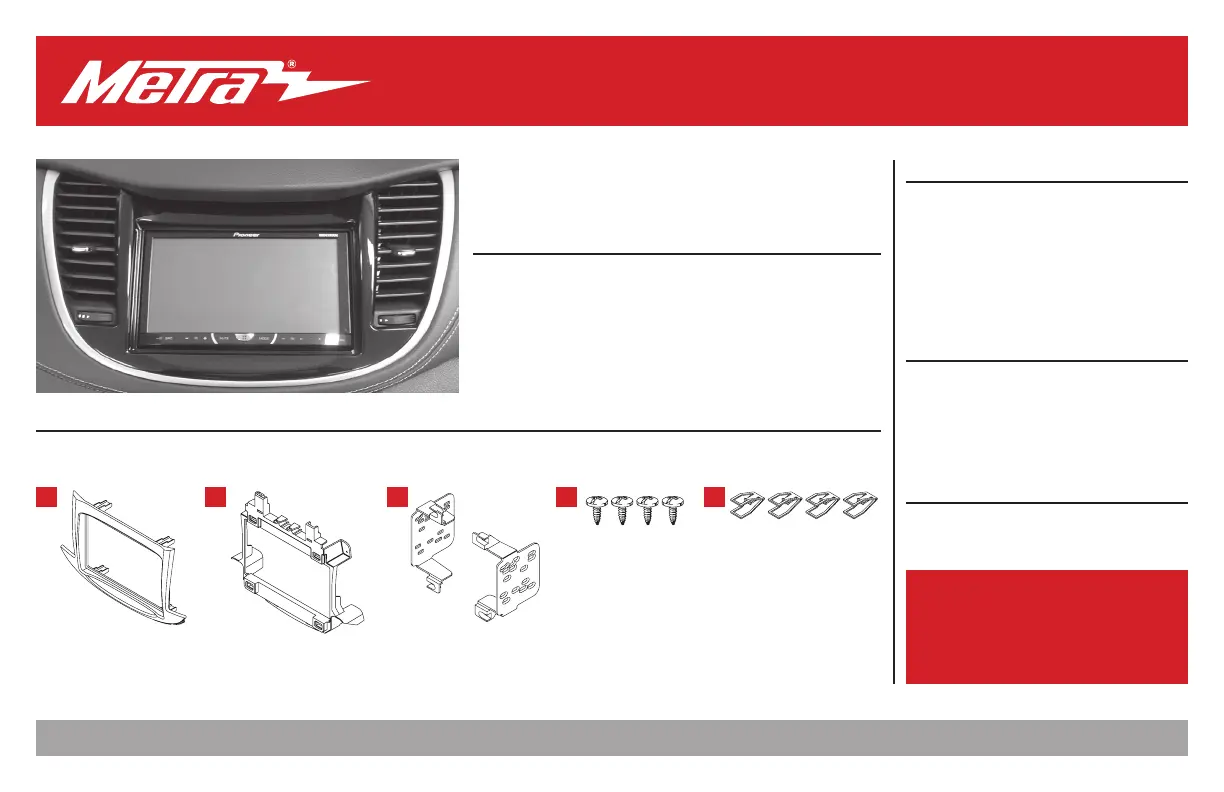

I N S TA L L AT I O N I N S T R U C T I O N S

95-3023HG

KIT FEATURES

• ISO DDIN radio provision

• Painted high gloss black

KIT COMPONENTS

• A) Radio trim panel • B) Radio housing • C) Radio brackets • D) Pocket • E) (4) #8 x 3/8” Phillips screws • F) (4) Panel clips

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” Socket wrench • Cutting tool

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................2

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: TBA

Antenna Adapter: 40-EU55

Steering Wheel Control Interface: ASWC-1

A B DC

Chevrolet Trax 2017-up*

*Visit for up-to-date vehicle speciﬁc applications.MetraOnline.com

1.800.221.0932

MetraOnline.com

DASH DISASSEMBLY KIT PREPARATION

1. Unclip and remove the dash panel

surrounding the radio. (Figure A)

2. Unclip and remove the radio trim.

(Figure B)

3. Remove (2) 9/32” screws securing

the radio, then pull down and back to

release the radio. Unplug the connectors

to remove the radio.

4. Unclip and slide off the plastic trim piece

on the top of the radio. (Figure C)

Remove (2) 9/32” screws securing each a/c

vent, then unclip and remove the vents.

Continue to Kit Preparation

Please visit Metraonline.com for

Dash Disassembly illustrations.

Attention! After the sub-dash has been cut,

the factory radio will no longer be able to

be installed.

1. Cut the sub-dash to allow room for the

aftermarket radio. (Figure A)

2. Attach (4)

panel clips

provided with the

kit onto the

radio trim panel

. (Figure B)

Continue to Kit Assembly

(Figure B)

(Figure A)

Remove

shaded areas

“Head On” View

REV. 2/16/2018 INST95-3023HG 3

KIT ASSEMBLY

1. Secure the

radio brackets

to the radio

using the screws supplied with the

radio. (Figure A)

2. Secure the radio assembly to the

radio

housing

using the (4) #8 x 3/8” Phillips

screws provided. (Figure B)

3. Attach the plastic trim piece removed in

dash disassembly to the top of the

radio housing

4. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using

the proper mating adapter from Metra

and/or Axxess. Test the radio for proper

operation.

(Figure A) (Figure B)

5. Secure the completed radio assembly,

and the a/c vents, to the dash using the

factory screws.

a. Slide the radio assembly into

the dash.

b. Wiggle the a/c vents in.

c. Secure the now complete assembly

to the dash using the (6) factory

9/32” screws.

6. Reassemble the dash in reverse

order of disassembly to complete the

installation, using the 95-3023HG

radio

trim panel.
