CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

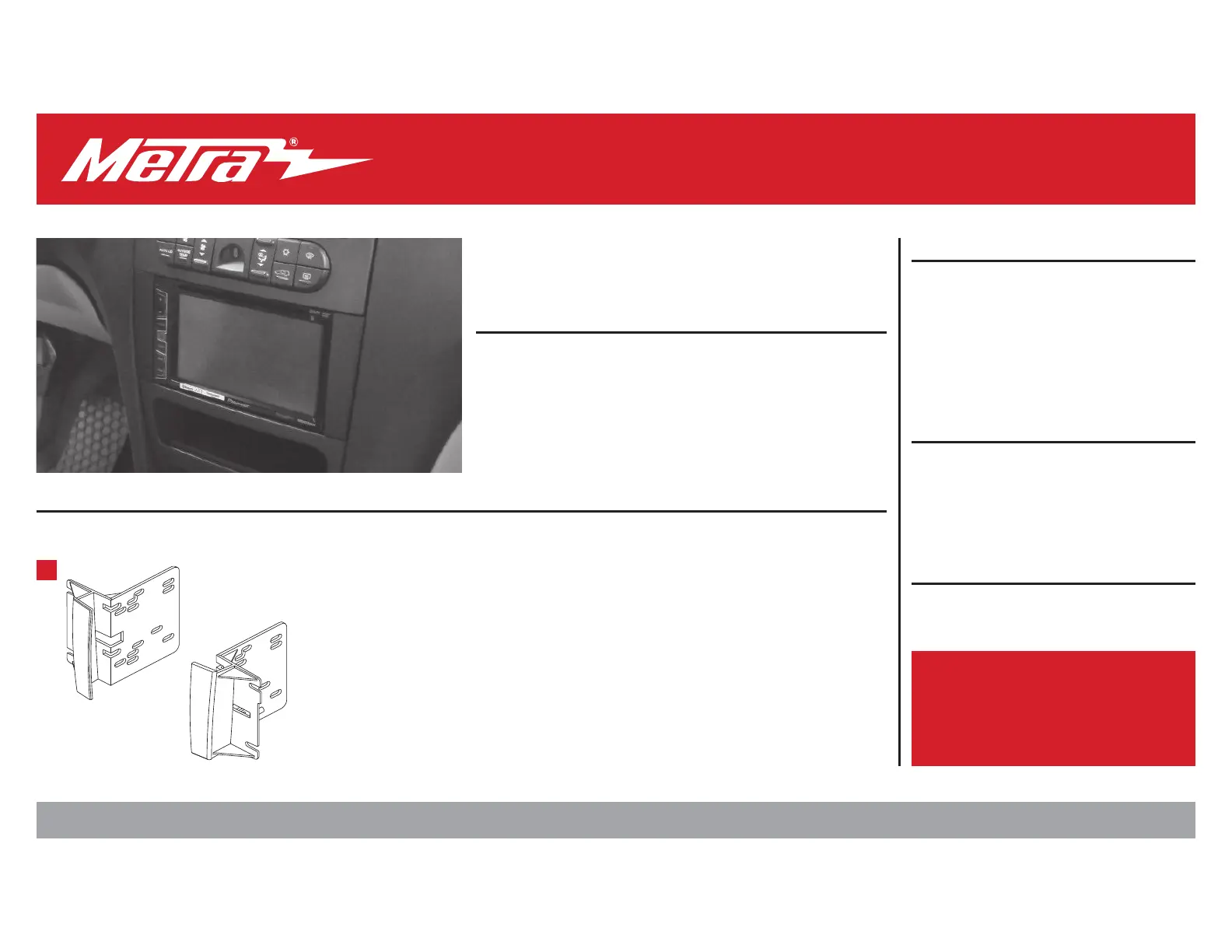

I N S TA L L A T I O N I N S T R U C T I O N S

95-6506B

KIT FEATURES

• ISO DDIN radio provision

• Painted matte black to match the factory appearance

KIT COMPONENTS

• A) Radio brackets

TOOLS REQUIRED

• Phillips screwdriver • Socket wrench

• Small ﬂat blade screwdriver • Cutting tool

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: CHTO-02 ampliﬁed interface

• 70-6506 ampliﬁed bypass harness

Antenna Adapter: 40-CR10

Chrysler Paciﬁca 2004-2008

1.800.221.0932

MetraOnline.com

DASH DISASSEMBLY

1. Loosen (1) T-15 Torx screw from the front

side of the shift knob and pull up to

remove. (Figure A)

Note:

For models equipped without a

release lever on the shift knob, just turn

counter-clockwise to remove.

2. Unsnap the ﬂoor console trim around

the shifter. Unplug the harness to

console trim and remove the trim.

(Figure B)

3. Unsnap and remove the ignition

key trimring.

(Figure B)

AUTOSTICK

(Figure A) (Figure C)

4. Unsnap and remove the dash trim

panels from each side of the radio/

climate controls. (Figure C)

5. Remove (4) Phillips screws to

remove the radio.

Continue to Kit Preparation

REV. 8/8/2017 INST95-6506B 3

KIT PREPARATION KIT ASSEMBLY

1. Cut and remove the sub-dash to allow

clearance for the aftermarket radio.

(Figure A)

Continue to Kit Assembly

ISO DDIN radio provision

1. Attach the

radio brackets

to the radio

using the screws supplied with the radio.

(Figure A)

2. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra.

Test the radio for proper operation.

3. Secure the completed assembly into the

dash using the factory screws.

4. Reassemble the dash in reverse order

of disassembly.

(Figure A) (Figure A)

Remove shaded area
